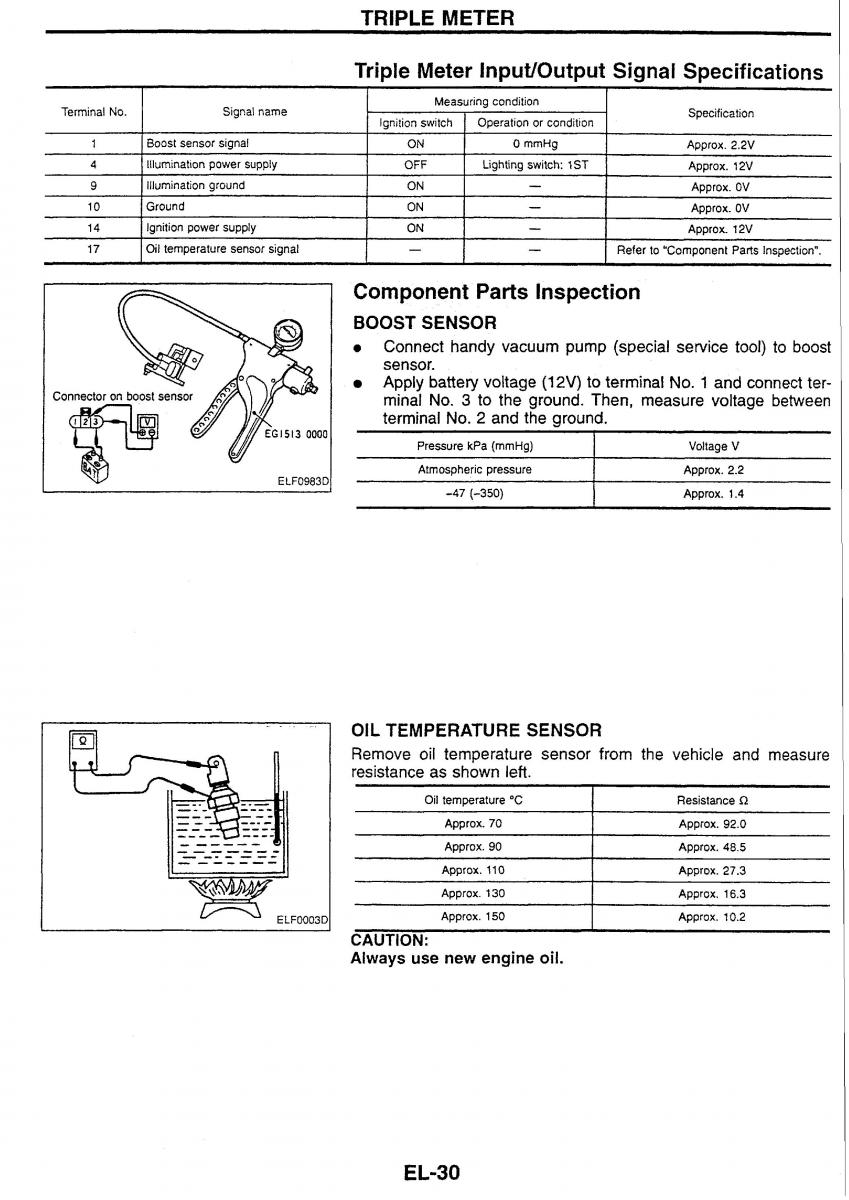

TRIPLE METER Triple Meter InputlOutput Signal Specifications - Terminal No. Signal name Measuring condition Specification lgnition switch Operation or condition 1 Boost sensor signal ON 0 mmHg Approx. 2.2V 4 Illumination power supply OFF Lighting switch: 1 ST Approx. 12V 9 illumination ground ON - Approx. OV 10 Ground ON - Approx. OV 14 ignition power supply ON - Approx. 12V 17 Oil temperature sensor signal I I - I Refer to "Component Parts Inspectionn. Component Parts Inspection BOOST SENSOR Connect handy vacuum pump (special service tool) to boost sensor. Apply battery voltage (12V) to terminal No. 1 and connect ter- minal No. 3 to the ground. Then, measure voltage between terminal No. 2 and the ground. Pressure kPa (mmHg) I Voltage V - pp Atmospheric pressure I Approx. 2.2 -47 (-350) 1 Approx. 1.4 OIL TEMPERATURE SENSOR Remove oil temperature sensor from the vehicle and measure resistance as shown left. -- - - -- Oil temperature "C Resistance R Approx. 70 Approx. 92.0 - -- Approx. 90 Appro~. 48.5 Approx. 110 Approx. 27.3 Approx. 130 Approx. 16.3 Approx. 150 Approx. 10.2 CAUTION: Always use new engine oil.
