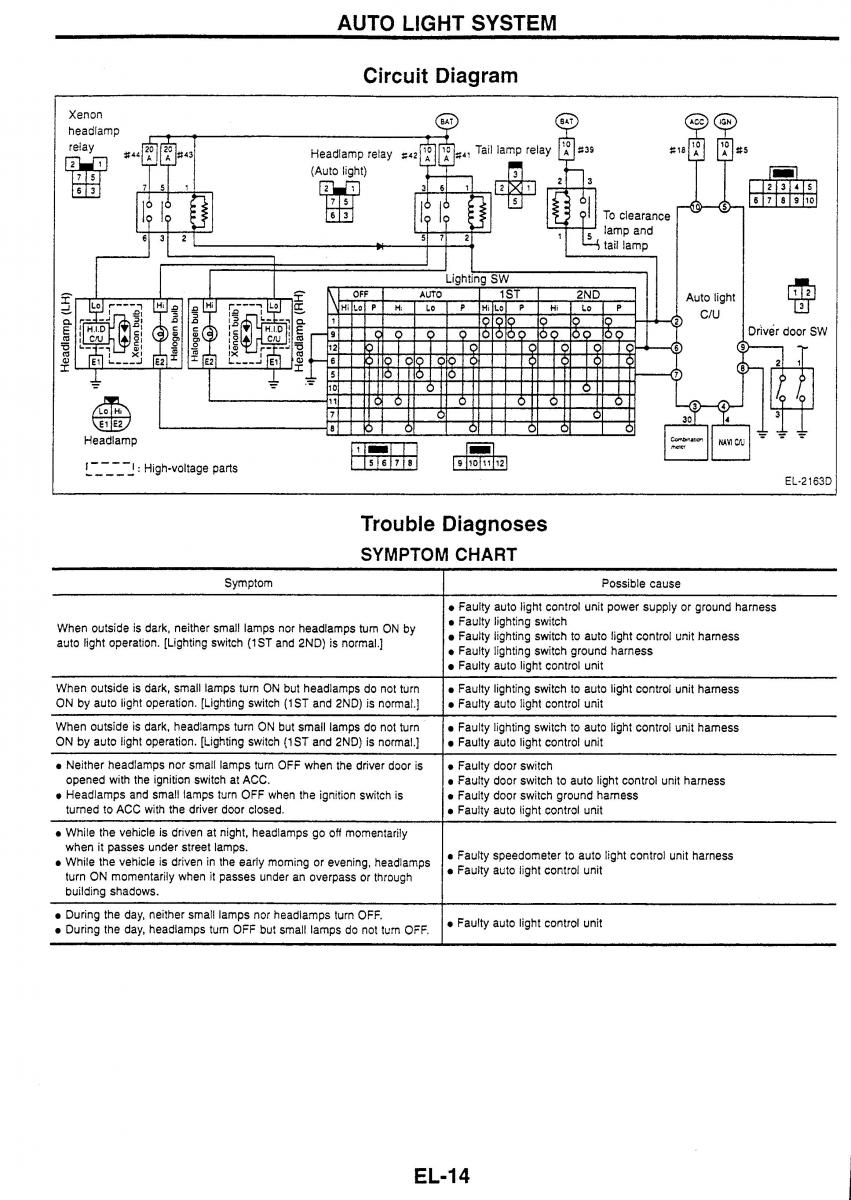

AUTO LIGHT SYSTEM Circuit Diagram Xenon headlamp relay To clearance lamp and tail lamp I---- I : High-voltage parts ----- EL-2163D Trouble Diagnoses SYMPTOM CHART Symptom I Possible cause I a Faulty auto light control unit power supply or ground harnesi When outside is dark, neither small lamps nor headlamps tum ON by 0 Faulty lighting switch auto light operation. [Lighting switch (1ST and 2ND) is normal.] Faulty lighting switch to auto light control unit harness a Faulty lighting switch ground harness I Faulty auto light control unit When outside is dark, small lamps turn ON but headlamps do not turn Faulty lighting switch to auto light control unit harness ON by auto light operation. [Lighting switch (1 ST and 2ND) is normal.] Faulty auto light control unit When outside is dark, headlamps turn ON but small lamps do not turn Faulty lighting switch to auto light control unit hamess ON by auto light operation. [Lighting switch (1ST and 2ND) is normal.] Faulty auto light control unit ~~- - - pp a Neither headlamps nor small lamps turn OFF when the driver door is a Faulty door switch opened with the ignition switch at ACC. a Faulty door switch to auto light control unit harness a Headlamps and small lamps turn OFF when the ignition switch is a Faulty door switch ground harness turned to ACC with the driver door closed. 0 Faulty auto light control unit 0 While the vehicle is driven at night, headlamps go off momentarily when it passes under street lamps. a Faulty speedometer to auto light control unit harness 0 While the vehicle is driven in the early morning or evening, headlamps a Faulty auto light control unit turn ON momentarily when it passes under an overpass or through building shadows. During the day, neither small lamps nor headlamps turn OFF. a Faulty auto light control unit During the day, headlamps tum OFF but small lamps do not turn OFF.
