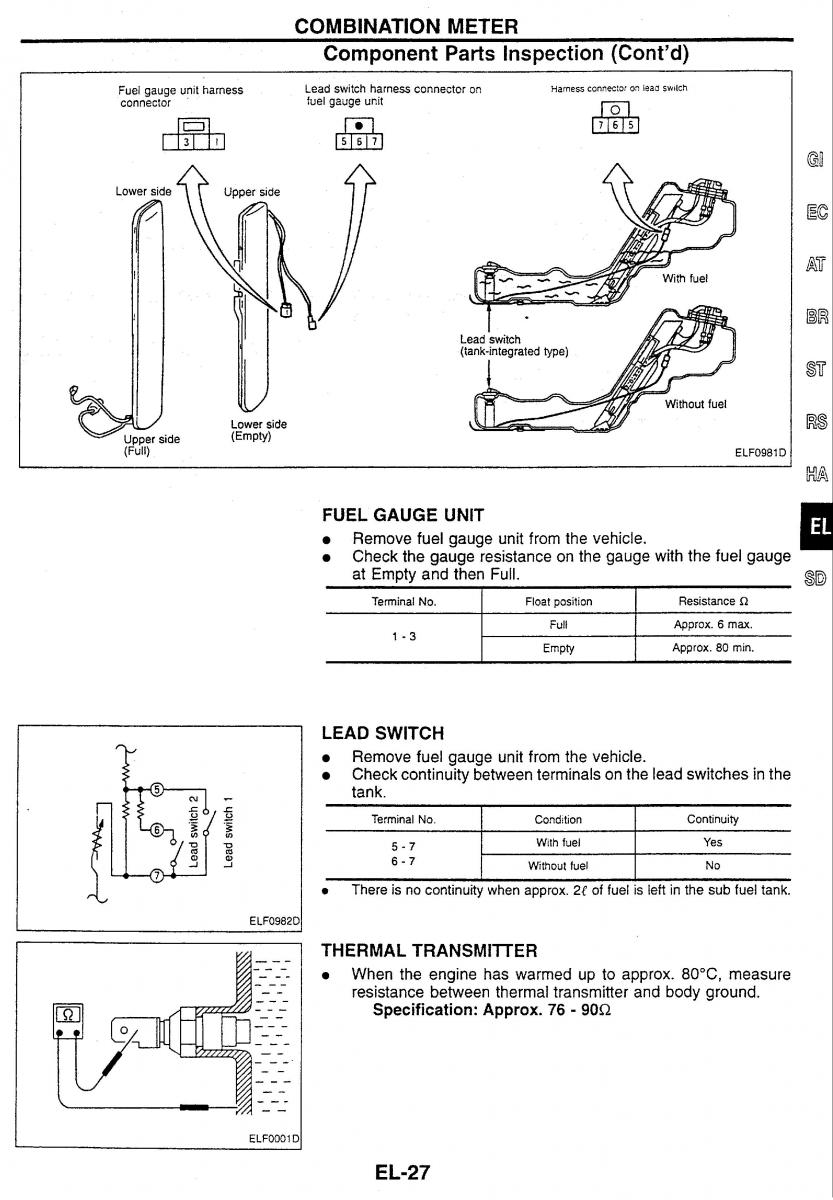

COMBINATION METER Component Parts Inspection (Cont'd) Fuel gauge unit harness Lead switch harness connector on Harness connec:or on lead sw~lch connector fuel gauge unit h L Lower side < Upper side I I With fuel I T/f Without fuel Lower side (Empty) (Full) FUEL GAUGE UNIT Remove fuel gauge unit from the vehicle. Check the gauge resistance on the gauge with the fuel gauge at Empty and then Full. SD Terminal No. Float position Resistance R Full Approx. 6 max. 1-3 Approx. 80 min. Empty LEAD SWITCH Remove fuel gauge unit from the vehicle. Check continuity between terminals on the lead switches in the tank. Termina! No. I Condition I Continuity 5 - 7 With fuel Yes 6-7 Without fuel No There is no continuity when approx. 26 of fuel is left in the sub fuel tank. THERMAL TRANSMITER 0 When the engine has warmed up to approx. 80°C, measure resistance between thermal transmitter and body ground. Specification: Approx. 76 - 90Q
