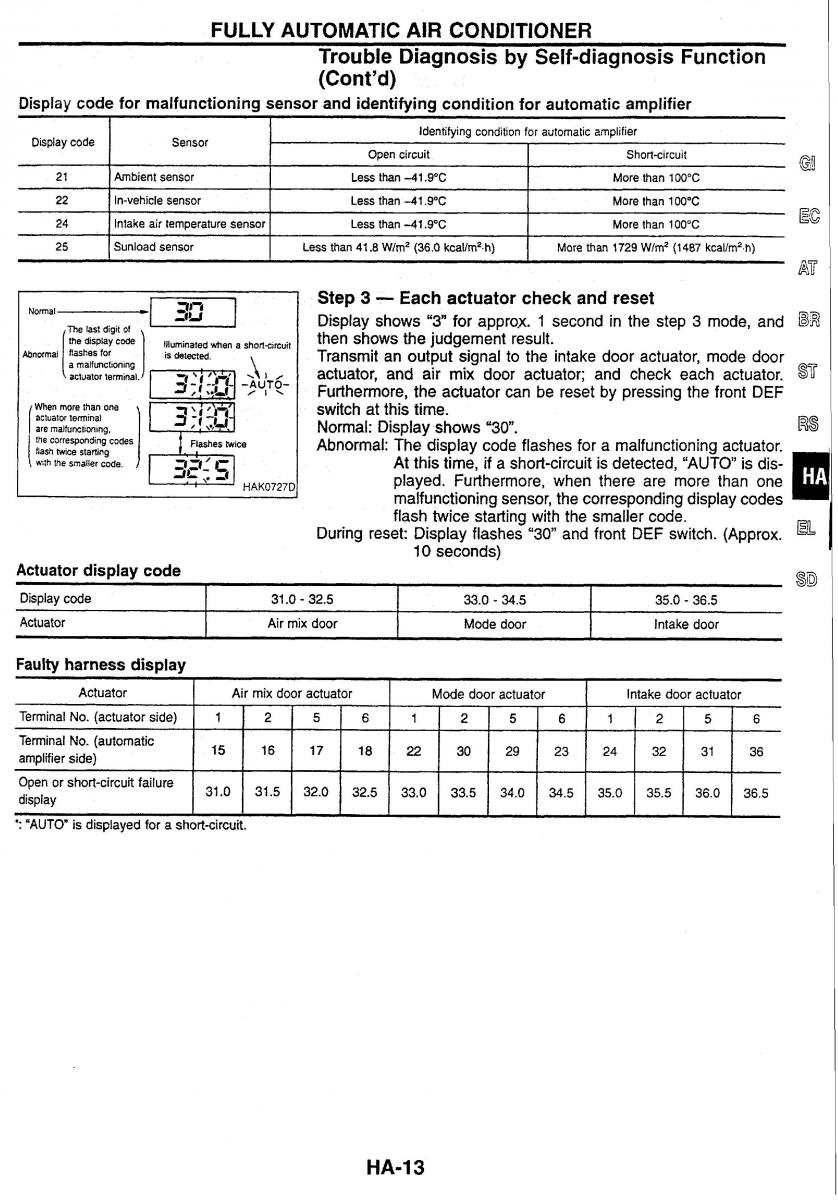

FULLY AUTOMATIC AIR CONDITIONER Trouble Diagnosis by Self-diagnosis Function (Cont'd) Display code for malfunctioning sensor and identifying condition for automatic amplifier Display code Sensor Identifying condition for automatic amplifier Open circuit Short-circuit GI 21 Ambient sensor Less than 41 .9"C More than 100°C 22 in-vehicle sensor Less than -4 1 .g°C More than 100°C 24 intake air temperature sensor Less than -4 1 .9"C More than 100°C EG 25 Sunload sensor Less than 4 1.8 W/m2 (36.0 kcallm2. h) More than 1729 W/m2 (1 487 kcal/m2.h) Step 3 - Each actuator check and reset The last digit of Display shows "3" for approx. 1 second in the step 3 mode, and BB then shows the judgement result. Abnormal flashes for is detected. I Transmit an output signal to the intake door actuator, mode door a malfunctioning actuator, and air mix door actuator; and check each actuator. ( actuator terminal. I Furthermore, the actuator can be reset by pressing the front DEF When more than one switch at this time. actuator terminal are malfunctron~ng. Normal: Display shows "30". I28 Ihe corresponding codes Flashes twice Abnormal: The display code flashes for a malfunctioning actuator. flash twice starting \ with the smaller code. At this time, if a short-circuit is detected, "AUTO is dis- HAK0727C played. Furthermore, when there are more than one P malfunctioning sensor, the corresponding display codes flash twice starting with the smaller code. EL During reset: Display flashes "30" and front DEF switch. (Approx. 10 seconds) Actuator display code SD Display code 31.0 - 32.5 33.0 - 34.5 35.0 - 36.5 Actuator Air mix door Mode door Intake door Faulty harness display Actuator Air mix door actuator Mode door actuator Intake door actuator Terminal No. (actuator side) 1 2 5 6 1 2 5 6 1 2 5 6 Terminal No. (automatic 15 16 17 18 22 30 29 23 24 32 31 36 amplifier side) Open or short-circuit failure 31.0 31.5 32.0 32.5 33.0 33.5 34.0 34.5 35.0 35.5 36.0 36.5 display ': "AUTO" is displayed for a short-circuit.
