text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

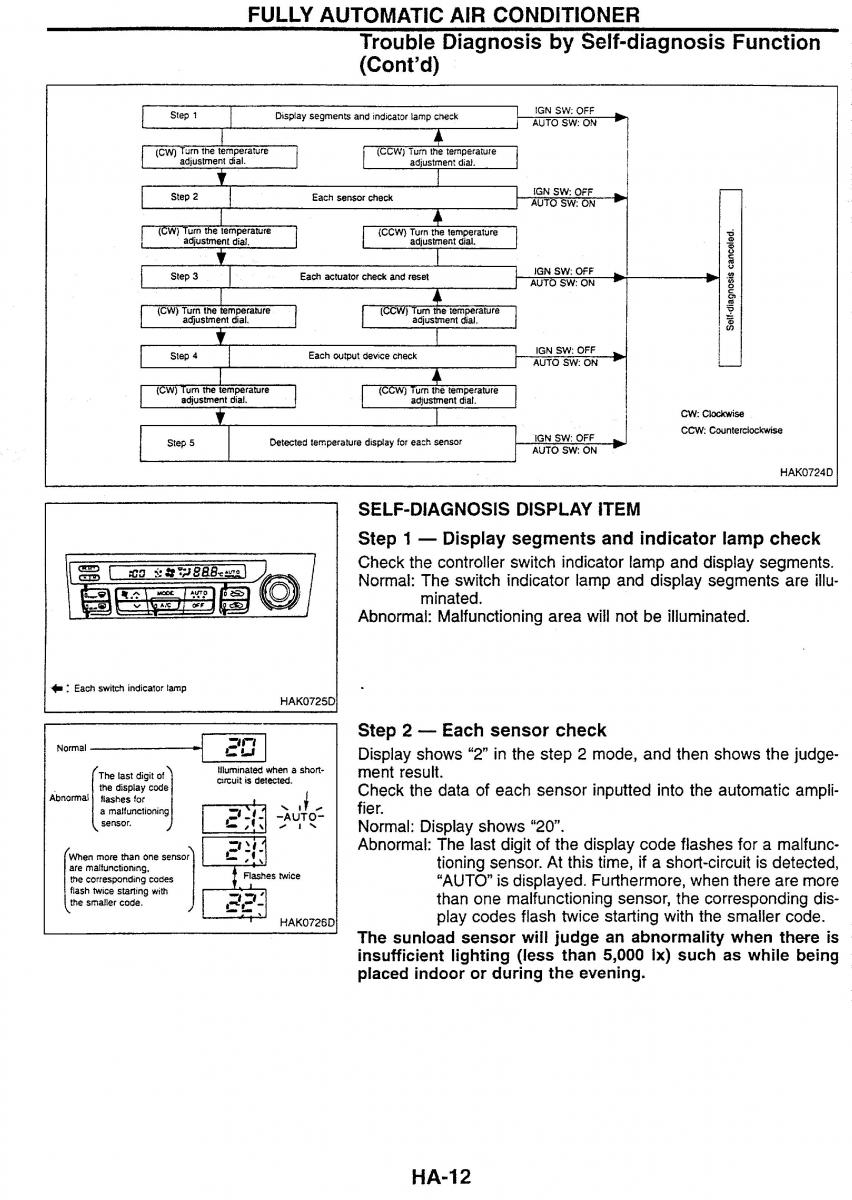

FULLY AUTOMATIC AIR CONDITIONER Trouble Diagnosis by Self-diagnosis Function (Cont'd) Step 1 IGN SW: OFF 4 AUTO SW: ON * (CW) Turn the temperature (CCW) Turn the temperature adjustment dial. adjustment dial. I Step 2 IGN SW: OFF I AUTO SW: ON * Step 3 AUTO SW: ON + I (CW) Tum the temperature (CCW) Turn the temperature adjustment dial. adjustment dial. I T I Step 4 I AUTO SW: ON * CW: Clockwise I CCW: Counterclockwise Step 5 Detected temperature d~splay for each sensor IGN SW: OFF AUTO SW: ON SELF-DIAGNOSIS DISPLAY ITEM Step 1 - Display segments and indicator lamp check Check the controller switch indicator lamp and display segments. Normal: The switch indicator lamp and display segments are illu- minated. Abnormal: Malfunctioning area will not be illuminated. C : Each switch indicator lamp HAK0725D Step 2 - Each sensor check Display shows "2 in the step 2 mode, and then shows the judge- (T"e last digir ") lllum~nated when a short- ment result. the display code circuit is detected. Check the data of each sensor inputted into the automatic ampli- fier. Normal: Display shows "20. Abnormal: The last digit of the display code flashes for a malfunc- tioning sensor. At this time, if a short-circuit is detected, the corresponding codes "AUTO is displayed. Furthermore, when there are more than one malfunctioning sensor, the corresponding dis- play codes flash twice starting with the smaller code. The sunload sensor will judge an abnormality when there is insufficient lighting (less than 5,000 lx) such as while being placed indoor or during the evening.
