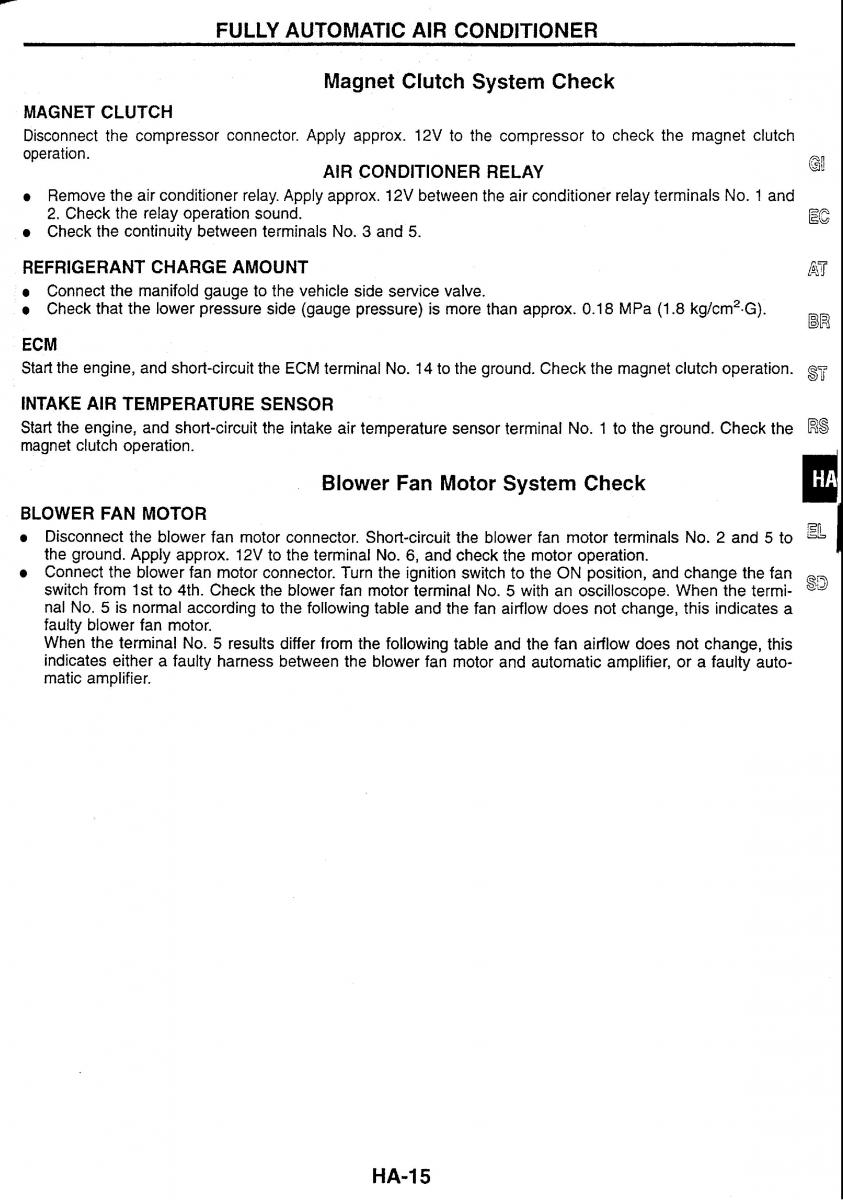

FULLY AUTOMATIC AIR CONDITIONER Magnet Clutch System Check MAGNET CLUTCH Disconnect the compressor connector. Apply approx. 12V to the compressor to check the magnet clutch operation. /;sn AIR CONDITIONER RELAY QJg Remove the air conditioner relay. Apply approx. 12V between the air conditioner relay terminals No. 1 and 2. Check the relay operation sound. Ec Check the continuity between terminals No. 3 and 5. REFRIGERANT CHARGE AMOUNT AT Connect the manifold gauge to the vehicle side service valve. Check that the lower pressure side (gauge pressure) is more than approx. 0.1 8 MPa (1.8 kg/cm2.G). BR ECM Start the engine, and short-circuit the ECM terminal No. 14 to the ground. Check the magnet clutch operation. INTAKE AIR TEMPERATURE SENSOR Start the engine, and short-circuit the intake air temperature sensor terminal No. 1 to the ground. Check the Rs maanet clutch o~eration. Blower Fan Motor System Check BLOWER FAN MOTOR Disconnect the blower fan motor connector. Short-circuit the blower fan motor terminals No. 2 and 5 to El!, ( the ground. Apply approx. 12V to the terminal No. 6, and check the motor operation. Connect the blower fan motor connector. Turn the ignition switch to the ON position, and change the fan sD switch from 1st to 4th. Check the blower fan motor terminal No. 5 with an oscilloscope. When the termi- nal No. 5 is normal according to the following table and the fan airflow does not change, this indicates a faulty blower fan motor. When the terminal No. 5 results differ from the following table and the fan airflow does not change, this indicates either a faulty harness between the blower fan motor and automatic amplifier, or a faulty auto- matic amplifier.
