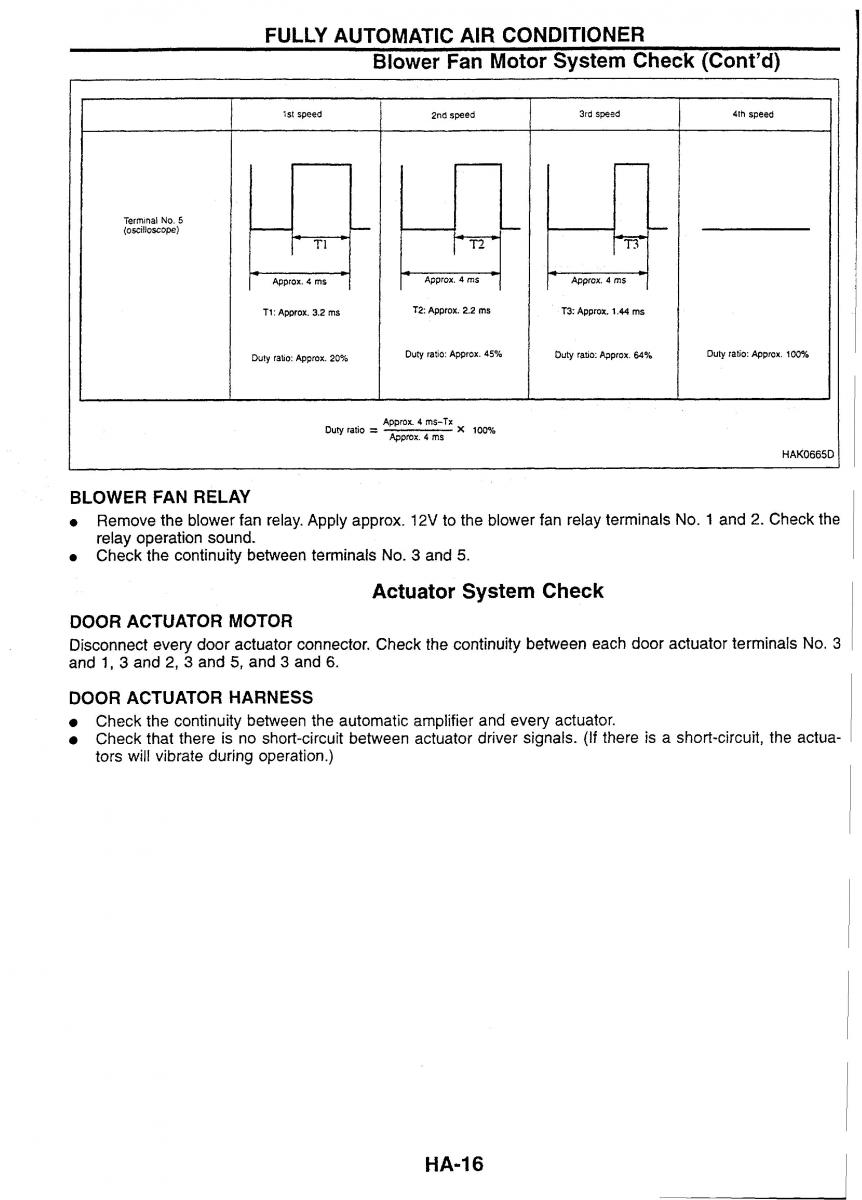

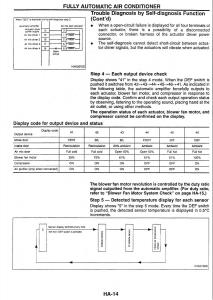

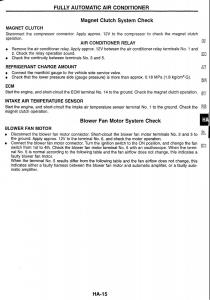

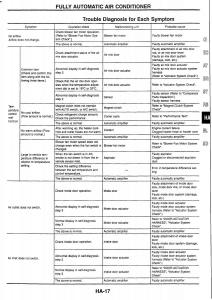

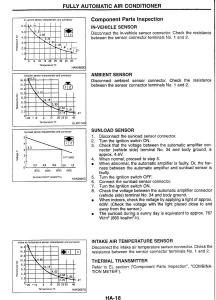

FULLY AUTOMATIC AIR CONDITIONER Blower Fan Motor System Check (Cont'd) 1 st speed 2nd speed 3rd speed 4th speed Terminal No. 5 (oscilloscope) TI : Approx. 3.2 ms T2: Approx. 2.2 ms T3: Approx. 1.44 ms Duty ratio: Approx. 20% Duty ratio: Approx. 45% Duty ratio: bprox. 64% Duty ratio: Approx. 100% Approx. 4 ms-Tx Duty ratio = Approx. 4 ms x 100% BLOWER FAN RELAY Remove the blower fan relay. Apply approx. 12V to the blower fan relay terminals No. 1 and 2. Check the relay operation sound. Check the continuity between terminals No. 3 and 5. Actuator System Check DOOR ACTUATOR MOTOR Disconnect every door actuator connector. Check the continuity between each door actuator terminals No. 3 and 1, 3 and 2, 3 and 5, and 3 and 6. DOOR ACTUATOR HARNESS Check the continuity between the automatic amplifier and every actuator. Check that there is no short-circuit between actuator driver signals. (If there is a short-circuit, the actua- tors will vibrate during operation.)
