text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

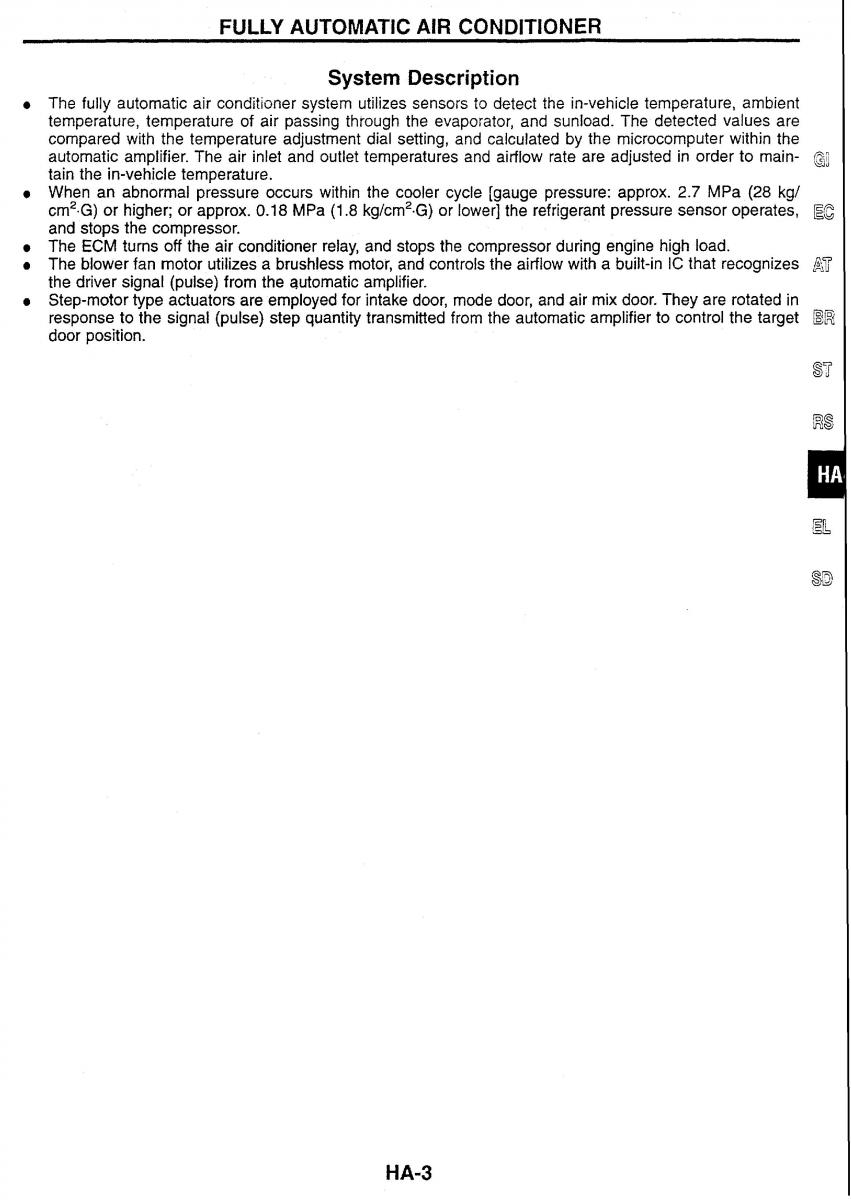

FULLY AUTOMATIC AIR CONDITIONER System Description The fully automatic air conditioner system utilizes sensors to detect the in-vehicle temperature, ambient temperature, temperature of air passing through the evaporator, and sunload. The detected values are compared with the temperature adjustment dial setting, and calculated by the microcomputer within the automatic amplifier. The air inlet and outlet temperatures and airflow rate are adjusted in order to main- @ tain the in-vehicle temperature. When an abnormal pressure occurs within the cooler cycle [gauge pressure: approx. 2.7 MPa (28 kg/ cm2G) or higher; or approx. 0.18 MPa (1.8 kg/cm2-G) or lower] the refrigerant pressure sensor operates, Ec and stops the compressor. The ECM turns off the air conditioner relay, and stops the compressor during engine high load. The blower fan motor utilizes a brushless motor, and controls the airflow with a built-in IC that recognizes AT the driver signal (pulse) from the automatic amplifier. Step-motor type actuators are employed for intake door, mode door, and air mix door. They are rotated in response to the signal (pulse) step quantity transmitted from the automatic amplifier to control the target BR door position.
