text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

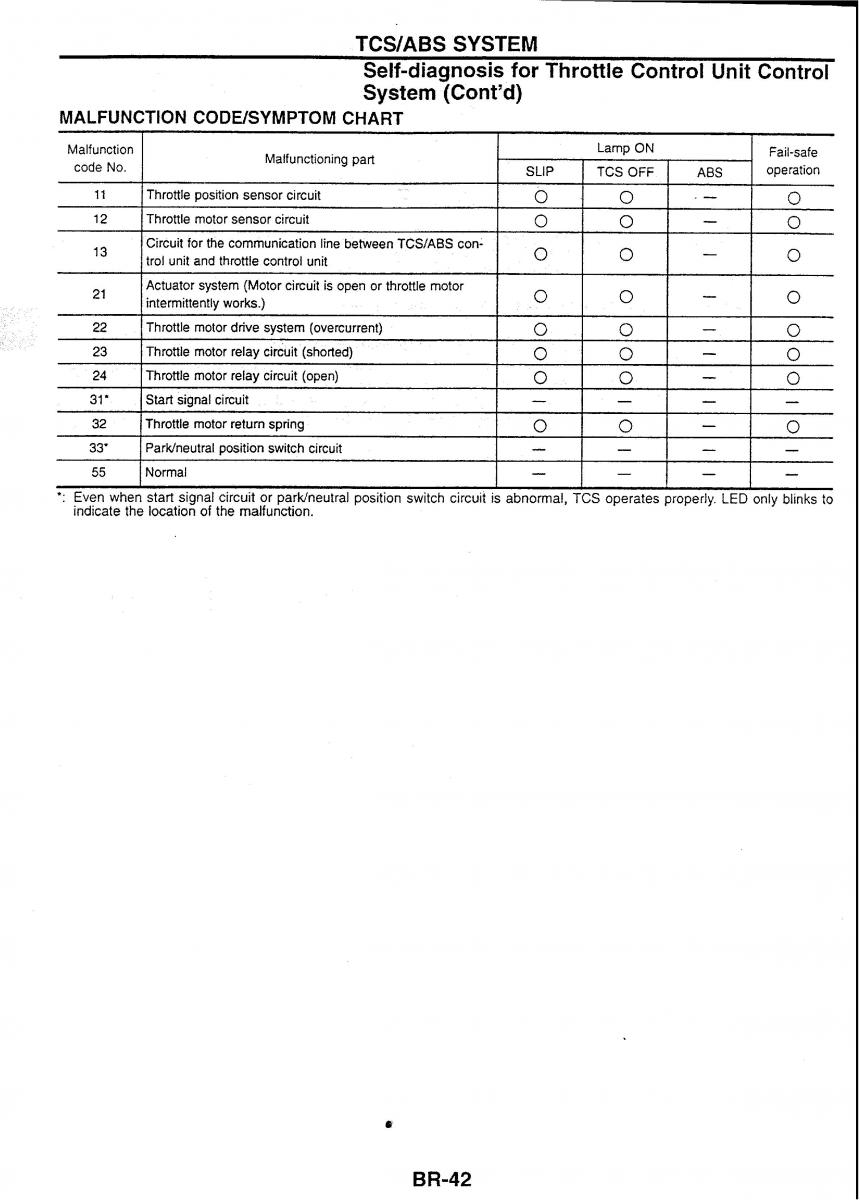

TCSfABS SYSTEM Self-diagnosis for Throttle Control Unit Control System (Cont'd) MALFUNCTION CODE/SYMPTOM CHART Malfunction Malfunctioning part Lamp ON Fail-safe code No. SLIP I TCS OFF I ABS operation Throttle position sensor circuit 0 0 . - 0 Throttle motor sensor circuit 0 0 - 0 Circuit for the communication line between TCSfABS con- 0 0 - 0 trol unit and throttle control unit Actuator system (Motor circuit is open or throttle motor 0 0 - 0 intermittently works.) Throttle motor drive system (overcurrent) 0 0 - 0 Throttle motor relay circuit (shorted) 0 0 - 0 Throttle motor relay circuit (open) 0 0 - 0 Start signal circuit I - I - - - Throttle motor return spring I 0 I 0 I - I 0 ParWneutral position switch circuit - - - - Normal - - - - I I I I ": Even when start signal circuit or parkheutral position switch circuit is abnormal, TCS operates properly. LED only blinks to indicate the location of the malfunction.
