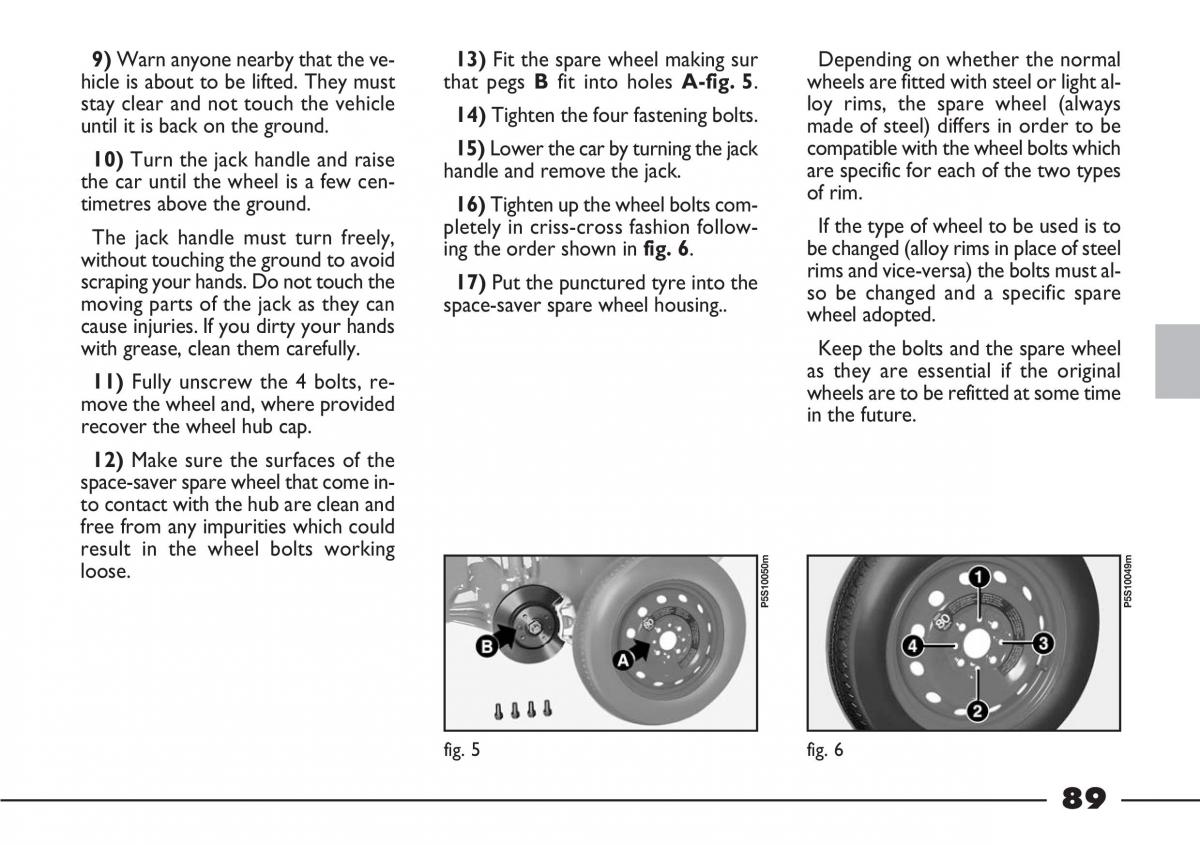

text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

9) Warn anyone nearby that the ve- 13) Fit the spare wheel making sur Depending on whether the normal hicle is about to be lifted. They must that pegs B fit into holes A-fig. 5. wheels are fitted with steel or light al- stay clear and not touch the vehicle loy rims, the spare wheel (always until it is back on the ground. 14) Tighten the four fastening bolts. made of steel) differs in order to be 15) Lower the car by turning the jack compatible with the wheel bolts which 10) Turn the jack handle and raise are specific for each of the two types handle and remove the jack. the car until the wheel is a few cen- of rim. timetres above the ground. 16) Tighten up the wheel bolts com- If the type of wheel to be used is to pletely in criss-cross fashion follow- The jack handle must turn freely, be changed (alloy rims in place of steel without touching the ground to avoid ing the order shown in fig. 6. scraping your hands. Do not touch the 17) Put the punctured tyre into the rims and vice-versa) the bolts must al- moving parts of the jack as they can so be changed and a specific spare space-saver spare wheel housing wheel adopted. cause injuries. If you dirty your hands with grease, clean them carefully. Keep the bolts and the spare wheel 11) Fully unscrew the 4 bolts, re- as they are essential if the original move the wheel and, where provided wheels are to be refitted at some time recover the wheel hub cap. in the future. 12) Make sure the surfaces of the space-saver spare wheel that come in- to contact with the hub are clean and free from any impurities which could result in the wheel bolts working loose. P5S10050m P5S10049m fig. 5 fig. 6 89
