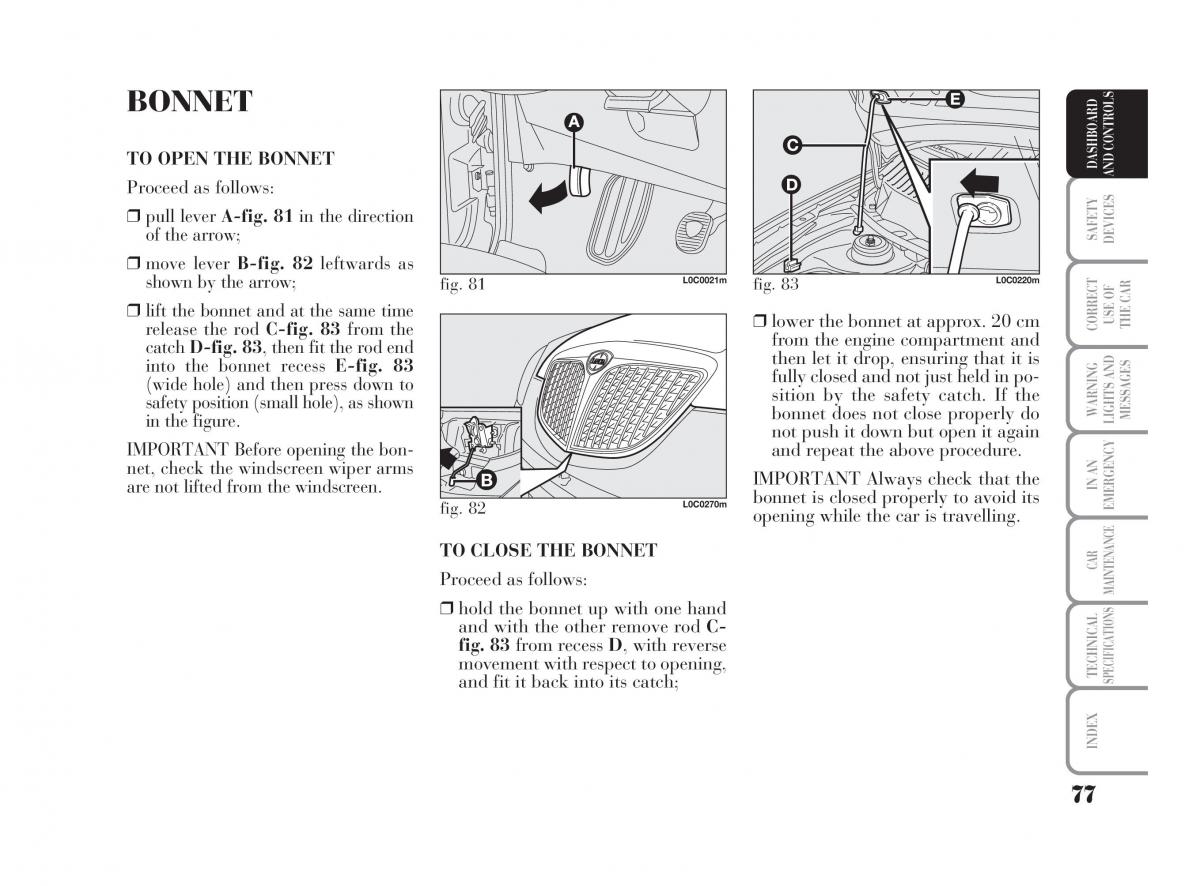

077-090 Ypsilon GB 10-10-2008 10:19 Pagina 77 BONNET TO OPEN THE BONNET DASHBOARD AND CONTROLS Proceed as follows: ❒pull lever A-fig. 81 in the direction of the arrow; SAFETYDEVICES ❒move lever B-fig. 82leftwards as shown by the arrow; fig. 81 L0C0021m fig. 83 L0C0220m ❒lift the bonnet and at the same time ❒lower the bonnet at approx. 20 cm USE OF release the rod C-fig. 83from the CORRECTTHE CAR catch D-fig. 83, then fit the rod end from the engine compartment and into the bonnet recess E-fig. 83 then let it drop, ensuring that it is (wide hole) and then press down to fully closed and not just held in po- safety position (small hole), as shown sition by the safety catch. If the WARNING in the figure. bonnet does not close properly doLIGHTS AND MESSAGES not push it down but open it again IMPORTANT Before opening the bon- and repeat the above procedure. net, check the windscreen wiper arms IMPORTANT Always check that the are not lifted from the windscreen. bonnet is closed properly to avoid its IN AN fig. 82 L0C0270m opening while the car is travelling. EMERGENCY TO CLOSE THE BONNET Proceed as follows: CAR MAINTENANCE ❒hold the bonnet up with one hand and with the other remove rod C- fig. 83 from recess D, with reverse movement with respect to opening, TECHNICAL and fit it back into its catch; SPECIFICATIONS INDEX 77
