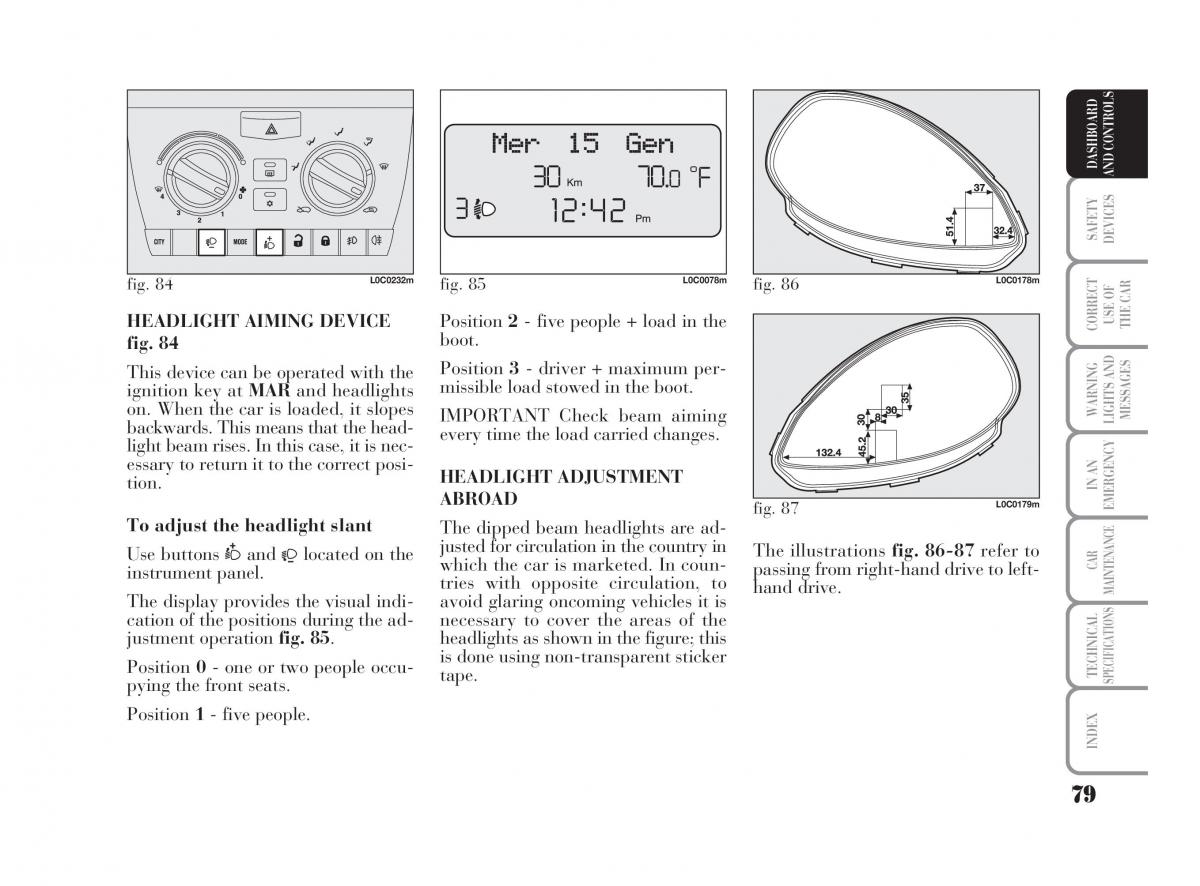

077-090 Ypsilon GB 10-10-2008 10:19 Pagina 79
DASHBOARDAND CONTROLS
SAFETYDEVICES
fig. 84 L0C0232m fig. 85 L0C0078m fig. 86 L0C0178m
HEADLIGHT AIMING DEVICE Position 2 - five people + load in the CORRECTUSE OF THE CAR
fig. 84 boot.
This device can be operated with the Position3 - driver + maximum per-
ignition key at MAR and headlights missible load stowed in the boot.
on. When the car is loaded, it slopes WARNINGMESSAGES
backwards. This means that the head- IMPORTANT Check beam aiming LIGHTS AND
light beam rises. In this case, it is nec- every time the load carried changes.
essary to return it to the correct posi- HEADLIGHT ADJUSTMENT
tion. ABROAD IN AN
fig. 87 L0C0179m EMERGENCY
To adjust the headlight slant The dipped beam headlights are ad-
Use buttons ö and õ located on the justed for circulation in the country in The illustrations fig. 86-87refer to
which the car is marketed. In coun- CAR
instrument panel. passing from right-hand drive to left-
tries with opposite circulation, to
The display provides the visual indi- avoid glaring oncoming vehicles it is hand drive. MAINTENANCE
cation of the positions during the ad- necessary to cover the areas of the
justment operation fig. 85. headlights as shown in the figure; this
is done using non-transparent sticker
Position 0 - one or two people occu- TECHNICAL
pying the front seats. tape. SPECIFICATIONS
Position 1 - five people.
INDEX
79
