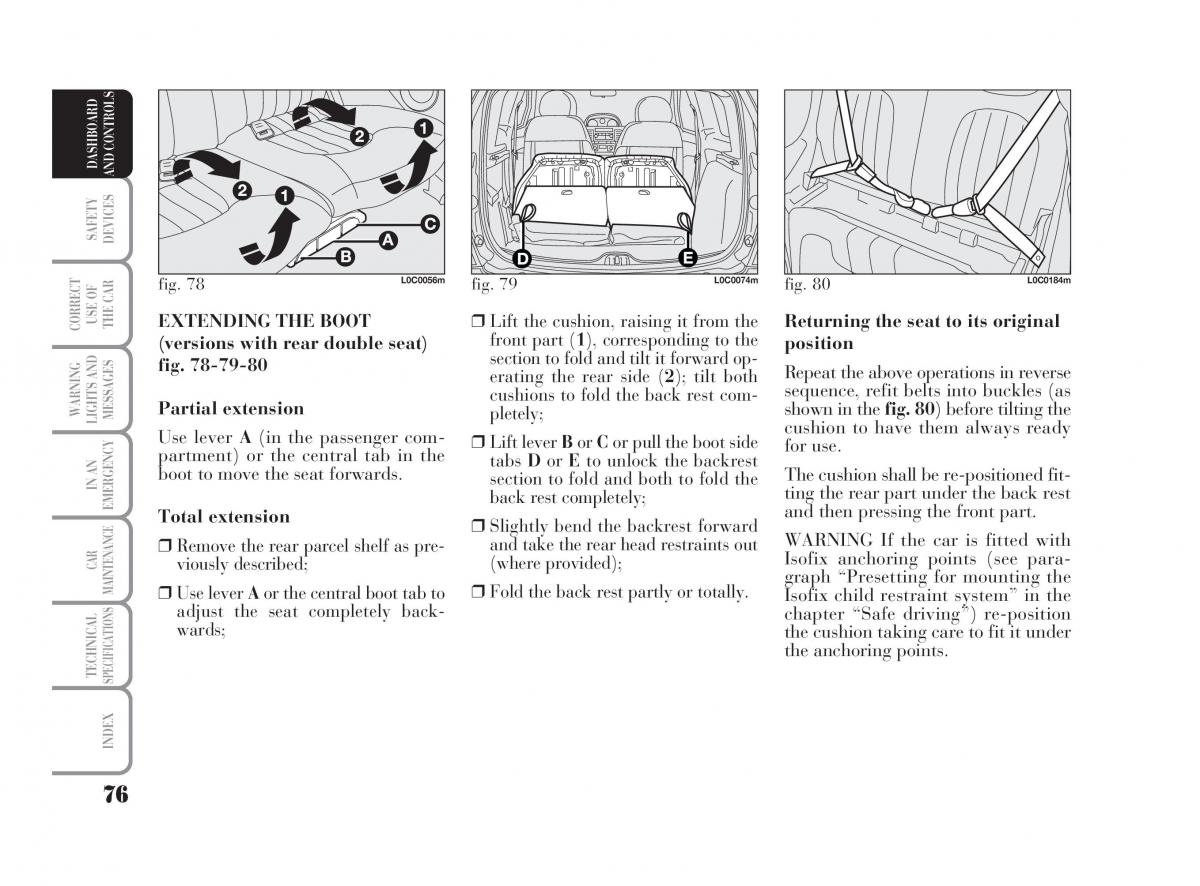

035-076 Ypsilon GB 10-10-2008 10:18 Pagina 76
DASHBOARDAND CONTROLS
SAFETYDEVICES
fig. 78 L0C0056m fig. 79 L0C0074m fig. 80 L0C0184m
CORRECTUSE OF THE CAREXTENDING THE BOOT ❒Lift the cushion, raising it from theReturning the seat to its original
front part (1), corresponding to the
(versions with rear double seat) section to fold and tilt it forward op- position
fig. 78-79-80 Repeat the above operations in reverse
erating the rear side (2); tilt both
sequence, refit belts into buckles (as
Partial extension cushions to fold the back rest com-
WARNINGLIGHTS ANDMESSAGES pletely; shown in the fig. 80 ) before tilting the
Use lever A (in the passenger com- cushion to have them always ready
❒Lift lever B or C or pull the boot side for use.
partment) or the central tab in the
boot to move the seat forwards. tabs D or E to unlock the backrest
The cushion shall be re-positioned fit-
IN AN section to fold and both to fold the
back rest completely; ting the rear part under the back rest
EMERGENCYTotal extension and then pressing the front part.
❒Slightly bend the backrest forward
❒Remove the rear parcel shelf as pre- and take the rear head restraints out WARNING If the car is fitted with
CAR viously described; (where provided); Isofix anchoring points (see para-
graph “Presetting for mounting the
MAINTENANCE❒Use lever A or the central boot tab to❒Fold the back rest partly or totally. Isofix child restraint system” in the
adjust the seat completely back-
wards; chapter “Safe driving”) re-position
the cushion taking care to fit it under
the anchoring points.
TECHNICALSPECIFICATIONS
INDEX
76
