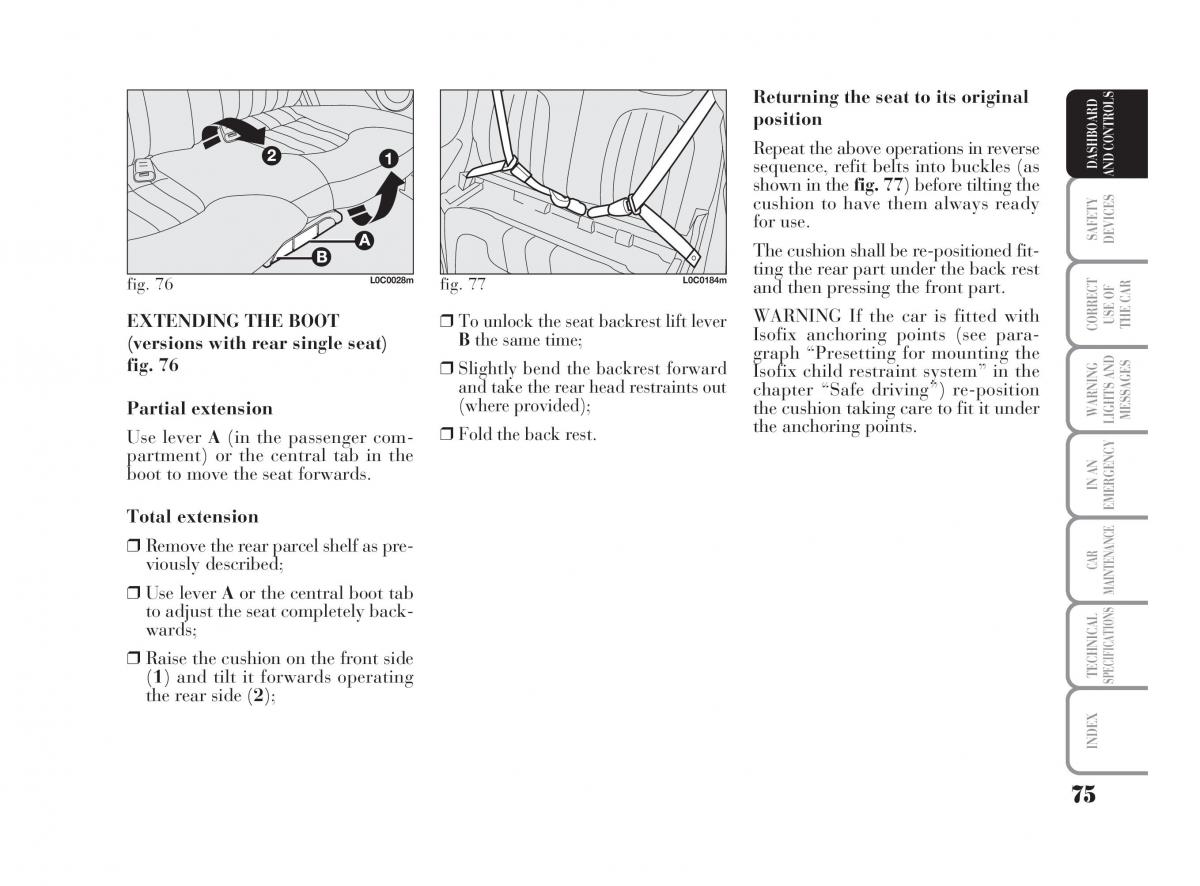

035-076 Ypsilon GB 10-10-2008 10:18 Pagina 75
Returning the seat to its original
position
Repeat the above operations in reverse
sequence, refit belts into buckles (as DASHBOARD AND CONTROLS
shown in the fig. 77 ) before tilting the
cushion to have them always ready
for use.
The cushion shall be re-positioned fit- SAFETYDEVICES
ting the rear part under the back rest
fig. 76 L0C0028m fig. 77 L0C0184m and then pressing the front part.
WARNING If the car is fitted with
EXTENDING THE BOOT ❒To unlock the seat backrest lift lever CORRECTUSE OF THE CAR
(versions with rear single seat) Bthe same time; Isofix anchoring points (see para-
fig. 76 graph “Presetting for mounting the
❒Slightly bend the backrest forward
and take the rear head restraints out Isofix child restraint system” in the
(where provided); chapter “Safe driving”) re-position
Partial extension the cushion taking care to fit it under WARNINGLIGHTS ANDMESSAGES
❒Fold the back rest. the anchoring points.
Use lever A (in the passenger com-
partment) or the central tab in the
boot to move the seat forwards. IN AN
Total extension EMERGENCY
❒Remove the rear parcel shelf as pre-
viously described; CAR
❒Use lever A or the central boot tab MAINTENANCE
to adjust the seat completely back-
wards;
❒Raise the cushion on the front side
(1) and tilt it forwards operating TECHNICALSPECIFICATIONS
the rear side ( 2);
INDEX
75
