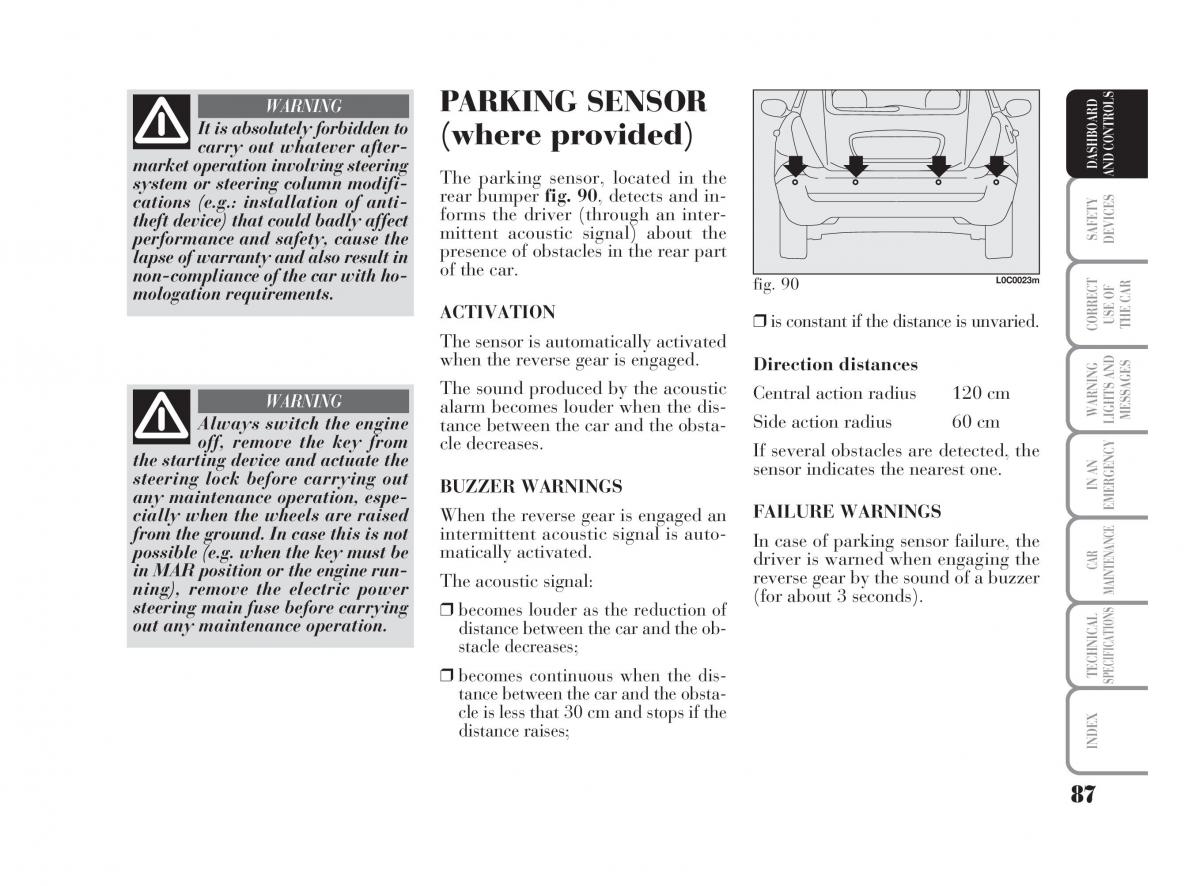

077-090 Ypsilon GB 10-10-2008 10:19 Pagina 87
WARNING PARKING SENSOR
It is absolutely forbidden to (where provided)
carry out whatever after-
market operation involving steering The parking sensor, located in the DASHBOARDAND CONTROLS
system or steering column modifi- rear bumper fig. 90, detects and in-
cations (e.g.: installation of anti-
theft device) that could badly affect forms the driver (through an inter-
performance and safety, cause the mittent acoustic signal) about the SAFETY DEVICES
lapse of warranty and also result in presence of obstacles in the rear part
non-compliance of the car with ho- of the car. fig. 90 L0C0023m
mologation requirements.
ACTIVATION ❒is constant if the distance is unvaried. USE OF
CORRECTTHE CAR
The sensor is automatically activated
when the reverse gear is engaged. Direction distances
The sound produced by the acoustic
WARNING Central action radius 120 cm
alarm becomes louder when the dis- WARNINGMESSAGES
Always switch the engine Side action radius 60 cm LIGHTS AND
tance between the car and the obsta-
off, remove the key from
the starting device and actuate the cle decreases. If several obstacles are detected, the
steering lock before carrying out sensor indicates the nearest one.
any maintenance operation, espe- BUZZER WARNINGS IN AN
When the reverse gear is engaged an FAILURE WARNINGS EMERGENCY
cially when the wheels are raised
from the ground. In case this is not intermittent acoustic signal is auto-
possible (e.g. when the key must be matically activated. In case of parking sensor failure, the
driver is warned when engaging the
in MAR position or the engine run- reverse gear by the sound of a buzzer CAR
The acoustic signal:
ning), remove the electric power (for about 3 seconds). MAINTENANCE
steering main fuse before carrying ❒becomes louder as the reduction of
out any maintenance operation. distance between the car and the ob-
stacle decreases;
❒becomes continuous when the dis- TECHNICALSPECIFICATIONS
tance between the car and the obsta-
cle is less that 30 cm and stops if the
distance raises;
INDEX
87
