owners manual KIA Carens

owners manual KIA Carens - year of production: 2013 - KIA Carens III 3 owners manual EN

Document: pdf (58.21 MB) 1480 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle KIA Carens, year of production 2013:

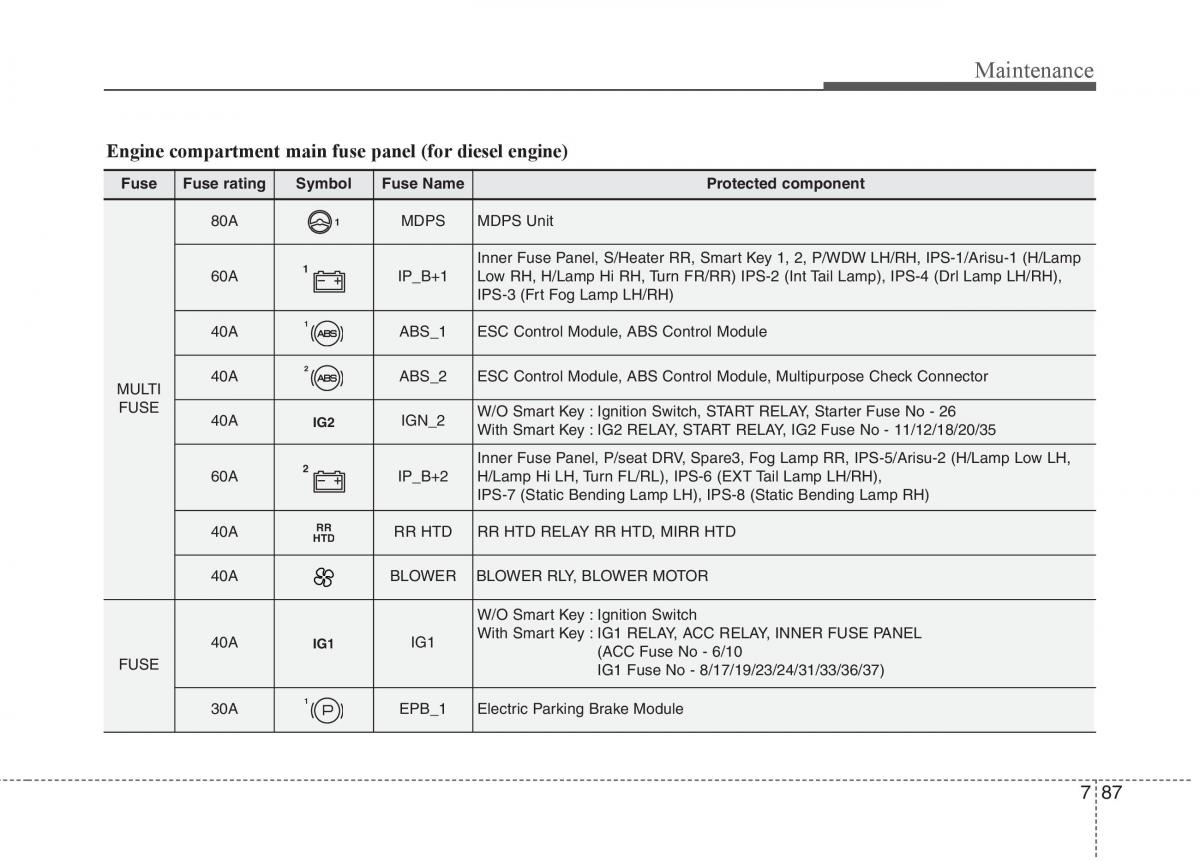

Maintenance Engine compartment main fuse panel (for diesel engine) Fuse Fuse rating Symbol Fuse Name Protected component 80A 1 MDPS MDPS Unit Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH, IPS-1/Arisu-1 (H/Lamp 60A 1 IP_B+1 Low RH, H/Lamp Hi RH, Turn FR/RR) IPS-2 (Int Tail Lamp), IPS-4 (Drl Lamp LH/RH), IPS-3 (Frt Fog Lamp LH/RH) 40A 1 ABS_1 ESC Control Module, ABS Control Module 40A 2 ABS_2 ESC Control Module, ABS Control Module, Multipurpose Check Connector MULTI FUSE W/O Smart Key :Ignition Switch, START RELAY, Starter Fuse No - 26 40A IG2 IGN_2 With Smart Key : IG2 RELAY, START RELAY, IG2 Fuse No - 11/12/18/20/35 Inner Fuse Panel, P/seat DRV, Spare3, Fog Lamp RR, IPS-5/Arisu-2 (H/Lamp Low LH, 60A 2 IP_B+2 H/Lamp Hi LH, Turn FL/RL), IPS-6 (EXT Tail Lamp LH/RH), IPS-7 (Static Bending Lamp LH), IPS-8 (Static Bending Lamp RH) 40A RR RR HTD RR HTD RELAY RR HTD, MIRR HTD HTD 40A BLOWER BLOWER RLY, BLOWER MOTOR W/O Smart Key :Ignition Switch 40A IG1 With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL IG1 (ACC Fuse No - 6/10 FUSE IG1 Fuse No - 8/17/19/23/24/31/33/36/37) 30A 1 EPB_1 Electric Parking Brake Module 787
