Maintenance

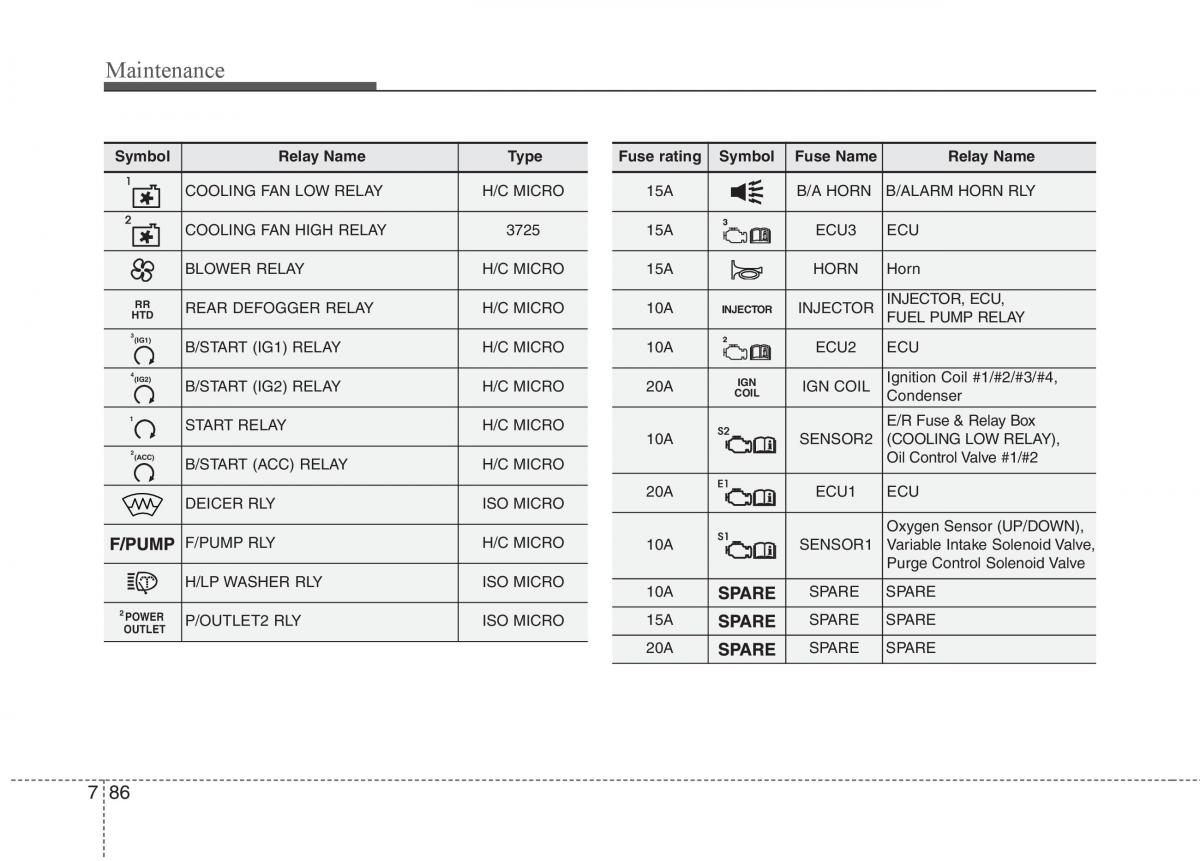

Symbol Relay Name Type Fuse rating Symbol Fuse Name Relay Name
COOLING FAN LOW RELAY H/C MICRO 15A B/A HORN B/ALARM HORN RLY
COOLING FAN HIGH RELAY 3725 15A ECU3 ECU
BLOWER RELAY H/C MICRO 15A HORN Horn
RR INJECTOR, ECU,
HTD REAR DEFOGGER RELAY H/C MICRO 10A INJECTO R INJECTOR FUEL PUMP RELAY
3(IG1)
B/START (IG1) RELAY H/C MICRO 10A ECU2 ECU
4(IG2) Ignition Coil #1/#2/#3/#4,
B/START (IG2) RELAY H/C MICRO 20A IGN IGN COIL
COIL Condenser
1 START RELAY H/C MICRO E/R Fuse & Relay Box
10A SENSOR2 (COOLING LOW RELAY),
2(ACC) Oil Control Valve #1/#2
B/START (ACC) RELAY H/C MICRO
20A ECU1 ECU
DEICER RLY ISO MICRO
Oxygen Sensor (UP/DOWN),
F/PUMP RLY H/C MICRO 10A SENSOR1 Variable Intake Solenoid Valve,
Purge Control Solenoid Valve
H/LP WASHER RLY ISO MICRO 10A SPARE SPARE
2POWER P/OUTLET2 RLY ISO MICRO 15A SPARE SPARE
OUTLET
20A SPARE SPARE
7 86
