Maintenance

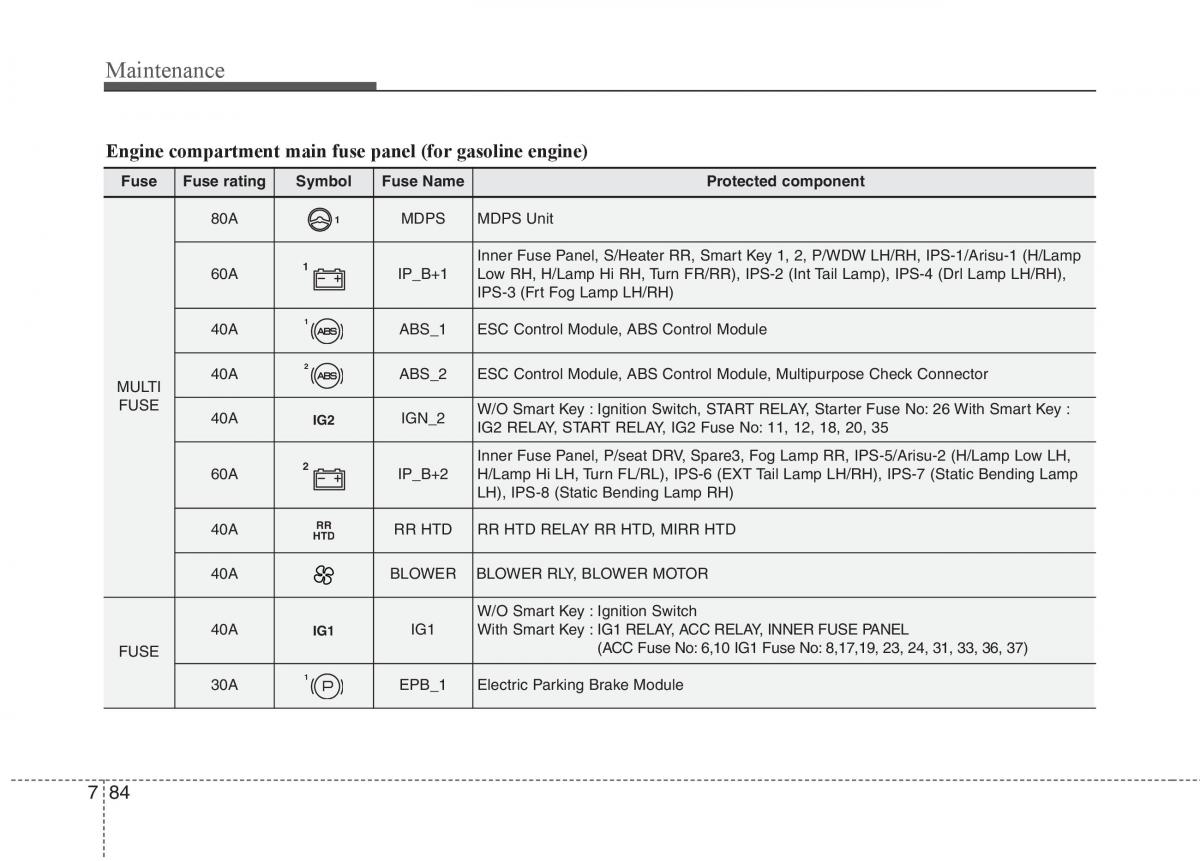

Engine compartment main fuse panel (for gasoline engine)
Fuse Fuse rating Symbol Fuse Name Protected component
80A 1 MDPS MDPS Unit
Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH, IPS-1/Arisu-1 (H/Lamp
60A 1 IP_B+1 Low RH, H/Lamp Hi RH, Turn FR/RR), IPS-2 (Int Tail Lamp), IPS-4 (Drl Lamp LH/RH),
IPS-3 (Frt Fog Lamp LH/RH)
40A 1 ABS_1 ESC Control Module, ABS Control Module
40A 2 ABS_2 ESC Control Module, ABS Control Module, Multipurpose Check Connector
MULTI
FUSE W/O Smart Key :Ignition Switch, START RELAY, Starter Fuse No: 26 With Smart Key :
40A IG2 IGN_2 IG2 RELAY, START RELAY, IG2 Fuse No:11, 12, 18, 20, 35
Inner Fuse Panel, P/seat DRV, Spare3, Fog Lamp RR, IPS-5/Arisu-2 (H/Lamp Low LH,
60A 2 IP_B+2 H/Lamp Hi LH, Turn FL/RL), IPS-6 (EXT Tail Lamp LH/RH), IPS-7 (Static Bending Lamp
LH), IPS-8 (Static Bending Lamp RH)
40A RR RR HTD RR HTD RELAY RR HTD, MIRR HTD
HTD
40A BLOWER BLOWER RLY, BLOWER MOTOR
W/O Smart Key :Ignition Switch
40A IG1 IG1 With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL
FUSE (ACC Fuse No: 6,10 IG1 Fuse No: 8,17,19, 23, 24, 31, 33, 36, 37)
30A 1 EPB_1 Electric Parking Brake Module
7 84
