Maintenance

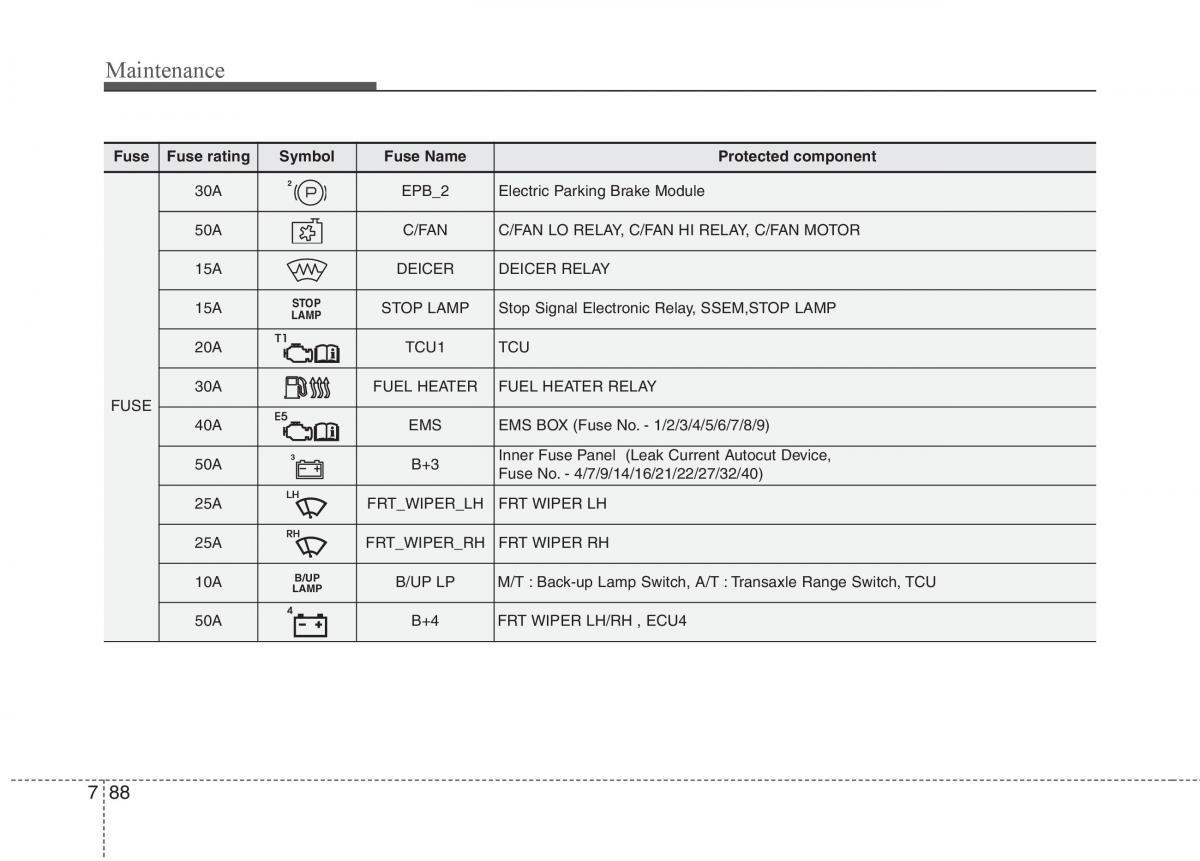

Fuse Fuse rating Symbol Fuse Name Protected component
30A 2 EPB_2 Electric Parking Brake Module
50A C/FAN C/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15A DEICER DEICER RELAY
15A STOP STOP LAMP Stop Signal Electronic Relay, SSEM,STOP LAMP
LAMP
20A TCU1 TCU
30A FUEL HEATER FUEL HEATER RELAY
FUSE
40A EMS EMS BOX (Fuse No.- 1/2/3/4/5/6/7/8/9)
50A 3 B+3 Inner Fuse Panel (Leak Current Autocut Device,
Fuse No.- 4/7/9/14/16/21/22/27/32/40)
25A FRT_WIPER_LH FRT WIPER LH
25A FRT_WIPER_RH FRT WIPER RH
10A B/UP B/UP LP M/T : Back-up Lamp Switch, A/T :Transaxle Range Switch, TCU
LAMP
50A B+4 FRT WIPER LH/RH , ECU4
7 88
