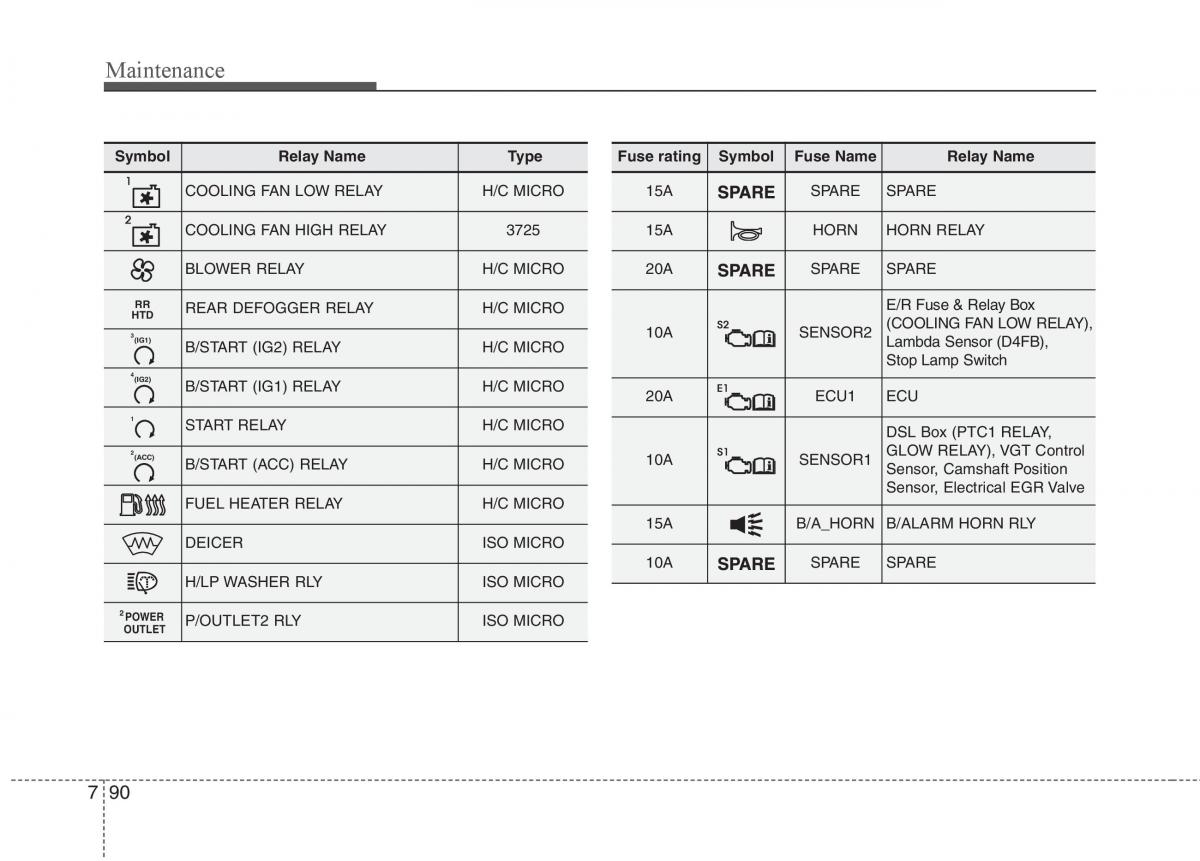

Maintenance
Symbol Relay Name Type Fuse rating Symbol Fuse Name Relay Name
COOLING FAN LOW RELAY H/C MICRO 15A SPARE SPARE
COOLING FAN HIGH RELAY 3725 15A HORN HORN RELAY
BLOWER RELAY H/C MICRO 20A SPARE SPARE
RR REAR DEFOGGER RELAY H/C MICRO E/R Fuse & Relay Box
HTD (COOLING FAN LOW RELAY),
3(IG1) 10A SENSOR2 Lambda Sensor (D4FB),
B/START (IG2) RELAY H/C MICRO
Stop Lamp Switch
4(IG2)
B/START (IG1) RELAY H/C MICRO 20A ECU1 ECU
1 START RELAY H/C MICRO
DSL Box (PTC1 RELAY,
2(ACC) 10A SENSOR1 GLOW RELAY), VGT Control
B/START (ACC) RELAY H/C MICRO Sensor, Camshaft Position
Sensor, Electrical EGR Valve
FUEL HEATER RELAY H/C MICRO
15A B/A_HORN B/ALARM HORN RLY
DEICER ISO MICRO
10A SPARE SPARE
H/LP WASHER RLY ISO MICRO
2POWER P/OUTLET2 RLY ISO MICRO
OUTLET
7 90
