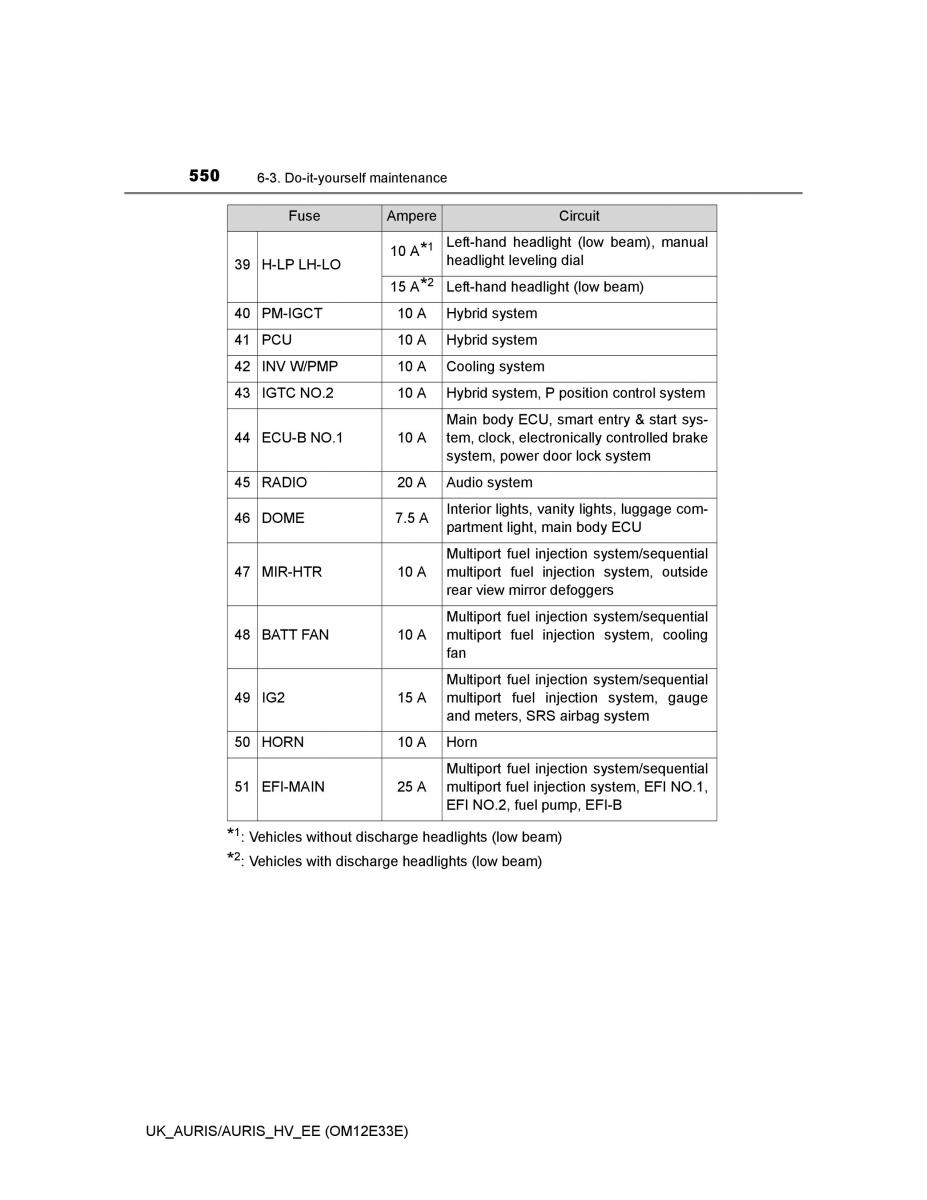

550 6-3. Do-it-yourself maintenance
Fuse Ampere Circuit
10 A*1 Left-hand headlight (low beam), manual
39 H-LP LH-LO headlight leveling dial
15 A*2 Left-hand headlight (low beam)
40 PM-IGCT 10 A Hybrid system
41 PCU 10 A Hybrid system
42 INV W/PMP 10 A Cooling system
43 IGTC NO.2 10 A Hybrid system, P position control system
Main body ECU, smart entry & start sys-
44 ECU-B NO.1 10 A tem, clock, electronically controlled brake
system, power door lock system
45 RADIO 20 A Audio system
46 DOME 7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
Multiport fuel injection system/sequential
47 MIR-HTR 10 A multiport fuel injection system, outside
rear view mirror defoggers
Multiport fuel injection system/sequential
48 BATT FAN 10 A multiport fuel injection system, cooling
fan
Multiport fuel injection system/sequential
49 IG2 15 A multiport fuel injection system, gauge
and meters, SRS airbag system
50 HORN 10 A Horn
Multiport fuel injection system/sequential
51 EFI-MAIN 25 A multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump, EFI-B
1
* : Vehicles without discharge headlights (low beam)
2
* : Vehicles with discharge headlights (low beam)
UK_AURIS/AURIS_HV_EE (OM12E33E)
