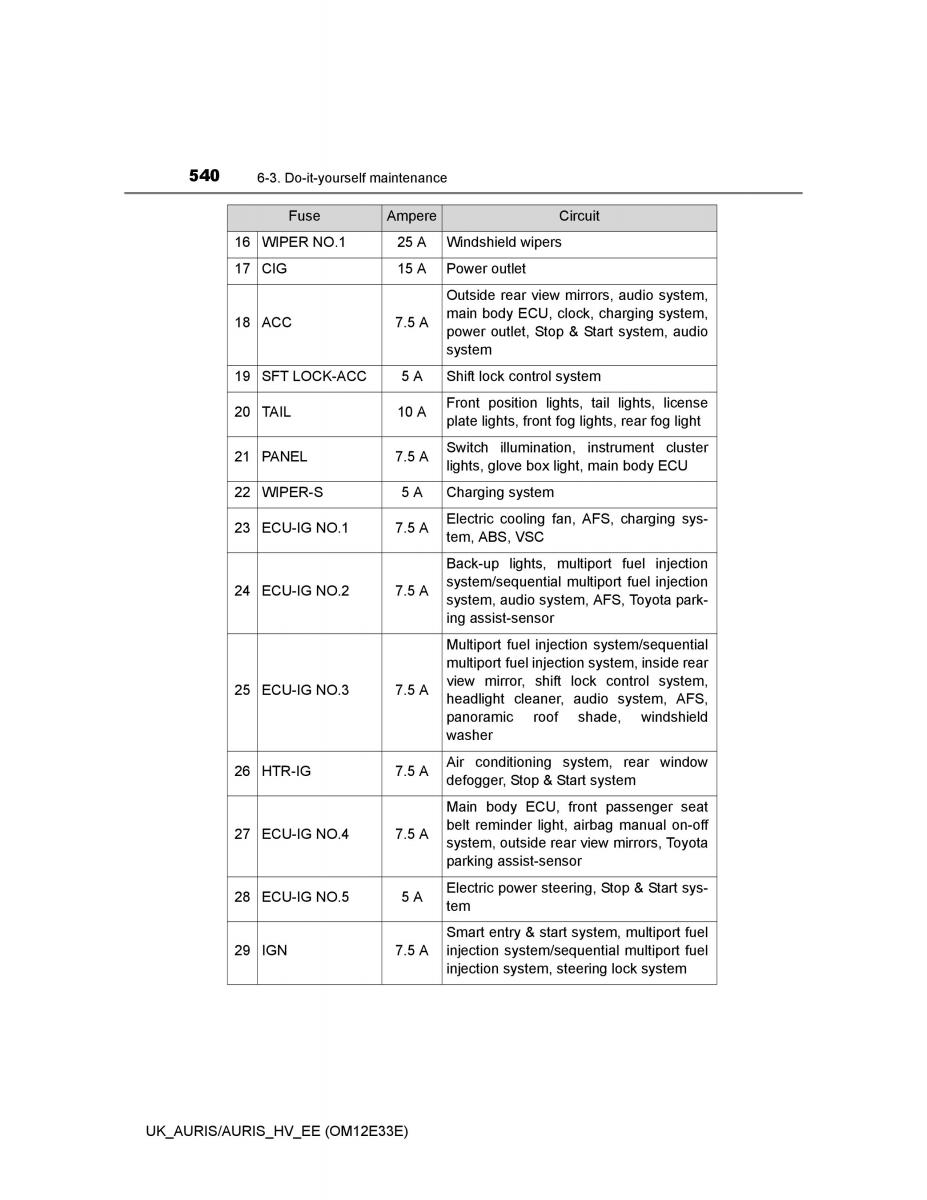

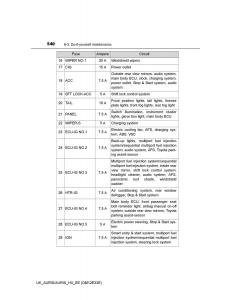

540 6-3. Do-it-yourself maintenance
Fuse Ampere Circuit
16 WIPER NO.1 25 AWindshield wipers
17 CIG 15 APower outlet
Outside rear view mirrors, audio system,
18 ACC 7.5 Amain body ECU, clock, charging system,
power outlet, Stop & Start system, audio
system
19 SFT LOCK-ACC 5 A Shift lock control system
20 TAIL 10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21 PANEL 7.5 ASwitch illuminatinstrument clusterion,
lights, glove box light, main body ECU
22 WIPER-S 5 A Charging system
23 ECU-IG NO.1 7.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
Back-up lights, multiport fuel injection
24 ECU-IG NO.2 7.5 Asystem/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
25 ECU-IG NO.3 7.5 Aview mirror, shift lock control system,
headlight cleaner, audio system, AFS,
panoramic roof shade, windshield
washer
26 HTR-IG 7.5 AAir conditioning system, rear window
defogger, Stop & Start system
Main body ECU, front passenger seat
27 ECU-IG NO.4 7.5 Abelt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28 ECU-IG NO.5 5 A Electric power steering, Stop & Start sys-
tem
Smart entry & start system, multiport fuel
29 IGN 7.5 Ainjection system/sequential multiport fuel
injection system, steering lock system
