from owners manual to the vehicle Toyota Auris, year of production 2012:

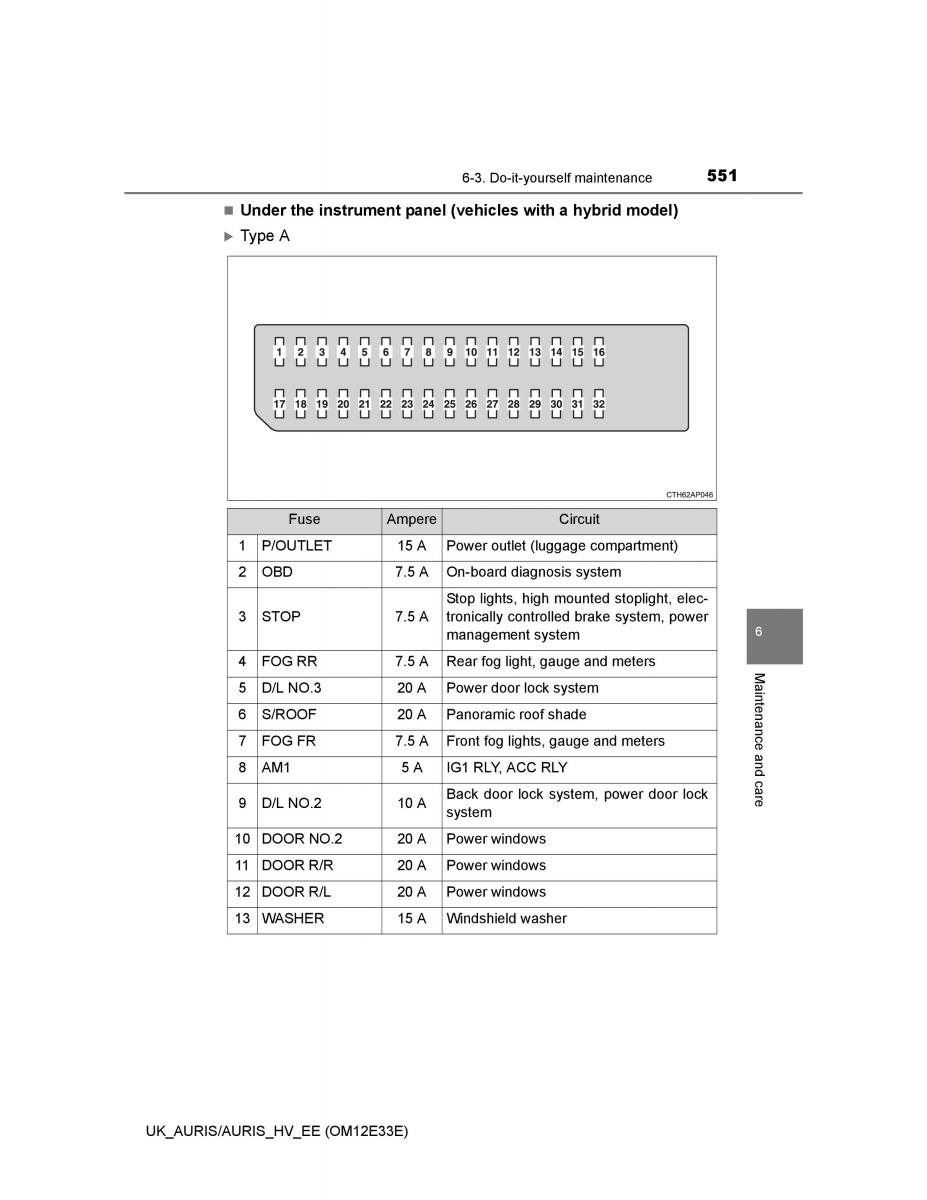

6-3. Do-it-yourself maintenance551
Under the instrument panel (vehicles with a hybrid model)
Type A
Fuse Ampere Circuit
1 P/OUTLET 15 A Power outlet (luggage compartment)
2 OBD 7.5 AOn-board diagnosis system
Stop lights, high mounted stoplight, elec-
3 STOP 7.5 Atronically controlled brake system, power
management system 6
4 FOG RR 7.5 A Rear fog light, gauge and metersMa
5 D/L NO.3 20 A Power door lock system intena
6 S/ROOF 20 A Panoramic roof shade
7 FOG FR 7.5 AFront fog lights, gauge and metersnce and
8 AM1 5 A IG1 RLY, ACC RLY
care
9 D/L NO.2 10 A Back door lock system, power door lock
system
10 DOOR NO.2 20 A Power windows
11DOOR R/R 20 A Power windows
12 DOOR R/L 20 A Power windows
13 WASHER 15 A Windshield washer
UK_AURIS/AURIS_HV_EE (OM12E33E)
