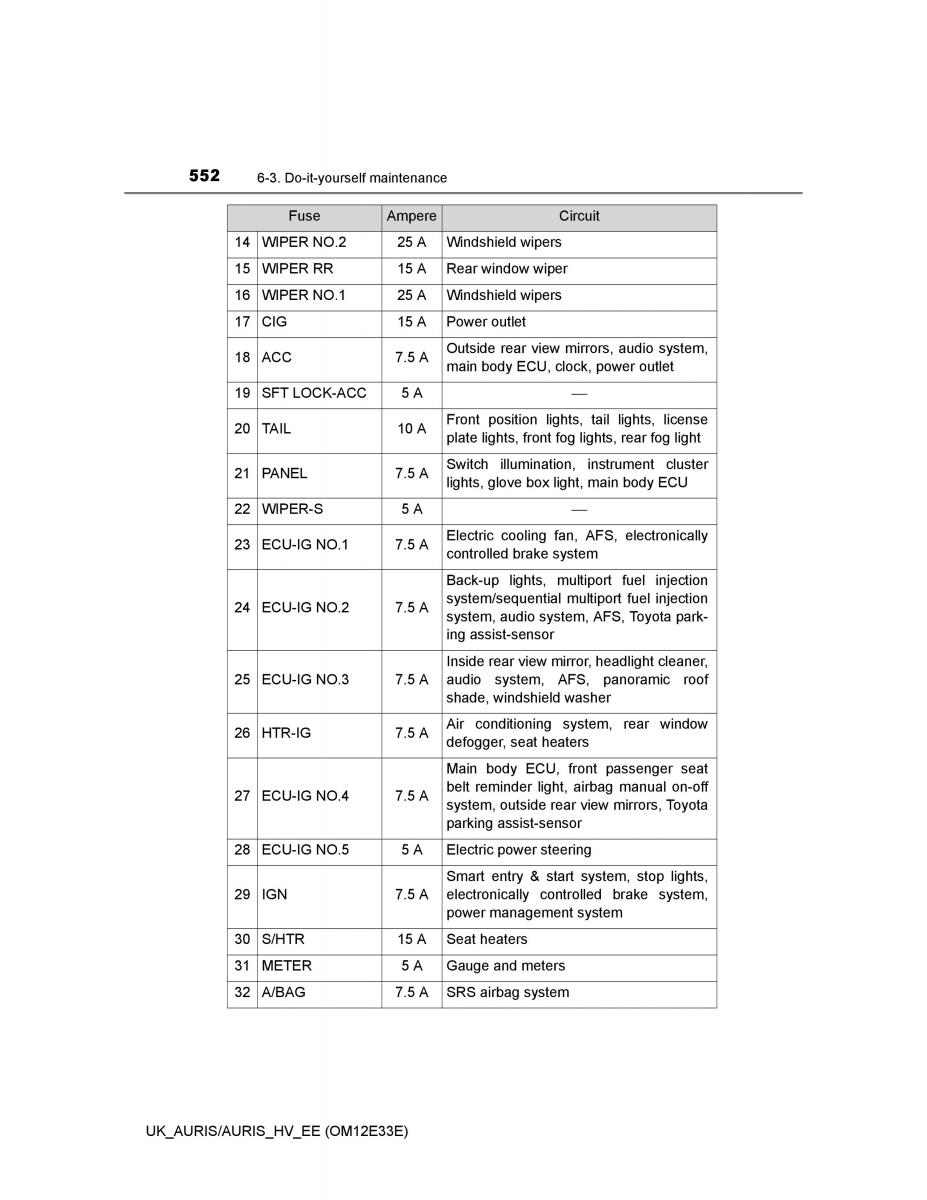

552 6-3. Do-it-yourself maintenance
Fuse Ampere Circuit
14 WIPER NO.2 25 AWindshield wipers
15 WIPER RR 15 ARear window wiper
16 WIPER NO.1 25 AWindshield wipers
17 CIG 15 APower outlet
18 ACC 7.5 AOutside rear view mirrors, audio system,
main body ECU, clock, power outlet
19 SFT LOCK-ACC 5 A
20 TAIL 10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21 PANEL 7.5 ASwitch illuminatinstrument clusterion,
lights, glove box light, main body ECU
22 WIPER-S 5 A
23 ECU-IG NO.1 7.5 AElectric cooling fan, AFS, electronically
controlled brake system
Back-up lights, multiport fuel injection
24 ECU-IG NO.2 7.5 Asystem/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
Inside rear view mirror, headlight cleaner,
25 ECU-IG NO.3 7.5 Aaudio system, AFS, panoramic roof
shade, windshield washer
26 HTR-IG 7.5 AAir conditioning system, rear window
defogger, seat heaters
Main body ECU, front passenger seat
27 ECU-IG NO.4 7.5 Abelt reminder light, airbag manual on-off
system, outside rear view mirrors, Toyota
parking assist-sensor
28 ECU-IG NO.5 5 A Electric power steering
Smart entry & start system, stop lights,
29 IGN 7.5 Aelectronically controlled brake system,
power management system
30 S/HTR 15 ASeat heaters
31 METER 5 A Gauge and meters
32 A/BAG 7.5 ASRS airbag system
UK_AURIS/AURIS_HV_EE (OM12E33E)
