text version of content this owner's manual page from owners manual to the vehicle Toyota Auris, year of production 2012:

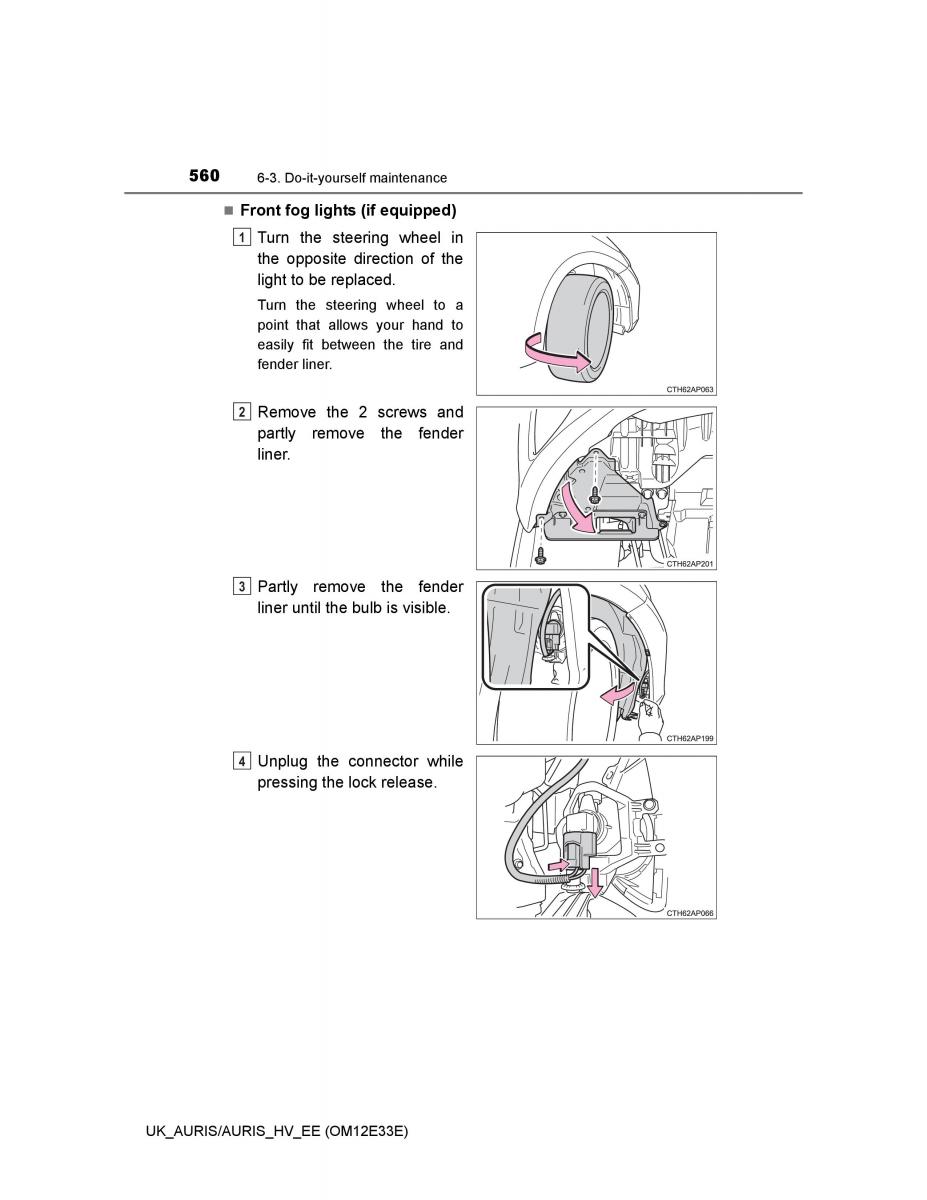

560 6-3. Do-it-yourself maintenance  Front fog lights (if equipped) 1 Turn the steering wheel in the opposite direction of the light to be replaced. Turn the steering wheel to a point that allows your hand to easily fit between the tire and fender liner. 2 Remove the 2 screws and partly remove the fender liner. 3 Partly remove the fender liner until the bulb is visible. 4 Unplug the connector while pressing the lock release. UK_AURIS/AURIS_HV_EE (OM12E33E)
