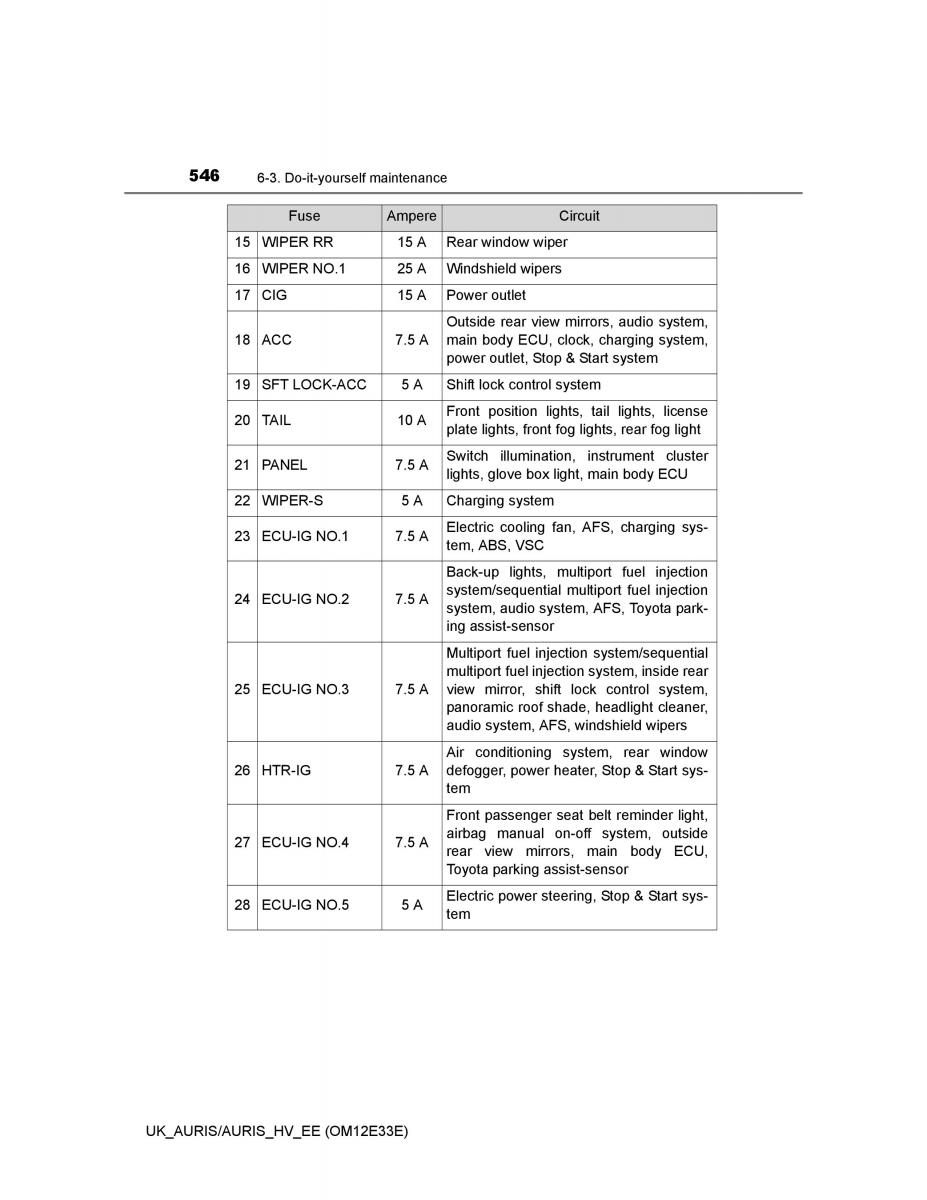

546 6-3. Do-it-yourself maintenance
Fuse Ampere Circuit
15 WIPER RR 15 ARear window wiper
16 WIPER NO.1 25 AWindshield wipers
17 CIG 15 APower outlet
Outside rear view mirrors, audio system,
18 ACC 7.5 Amain body ECU, clock, charging system,
power outlet, Stop & Start system
19 SFT LOCK-ACC 5 A Shift lock control system
20 TAIL 10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21 PANEL 7.5 ASwitch illuminatinstrument clusterion,
lights, glove box light, main body ECU
22 WIPER-S 5 A Charging system
23 ECU-IG NO.1 7.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
Back-up lights, multiport fuel injection
24 ECU-IG NO.2 7.5 Asystem/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
25 ECU-IG NO.3 7.5 Aview mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers
Air conditioning system, rear window
26 HTR-IG 7.5 Adefogger, power heater, Stop & Start sys-
tem
Front passenger seat belt reminder light,
27 ECU-IG NO.4 7.5 Aairbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28 ECU-IG NO.5 5 A Electric power steering, Stop & Start sys-
tem
UK_AURIS/AURIS_HV_EE (OM12E33E)
