from owners manual to the vehicle Toyota Auris, year of production 2012:

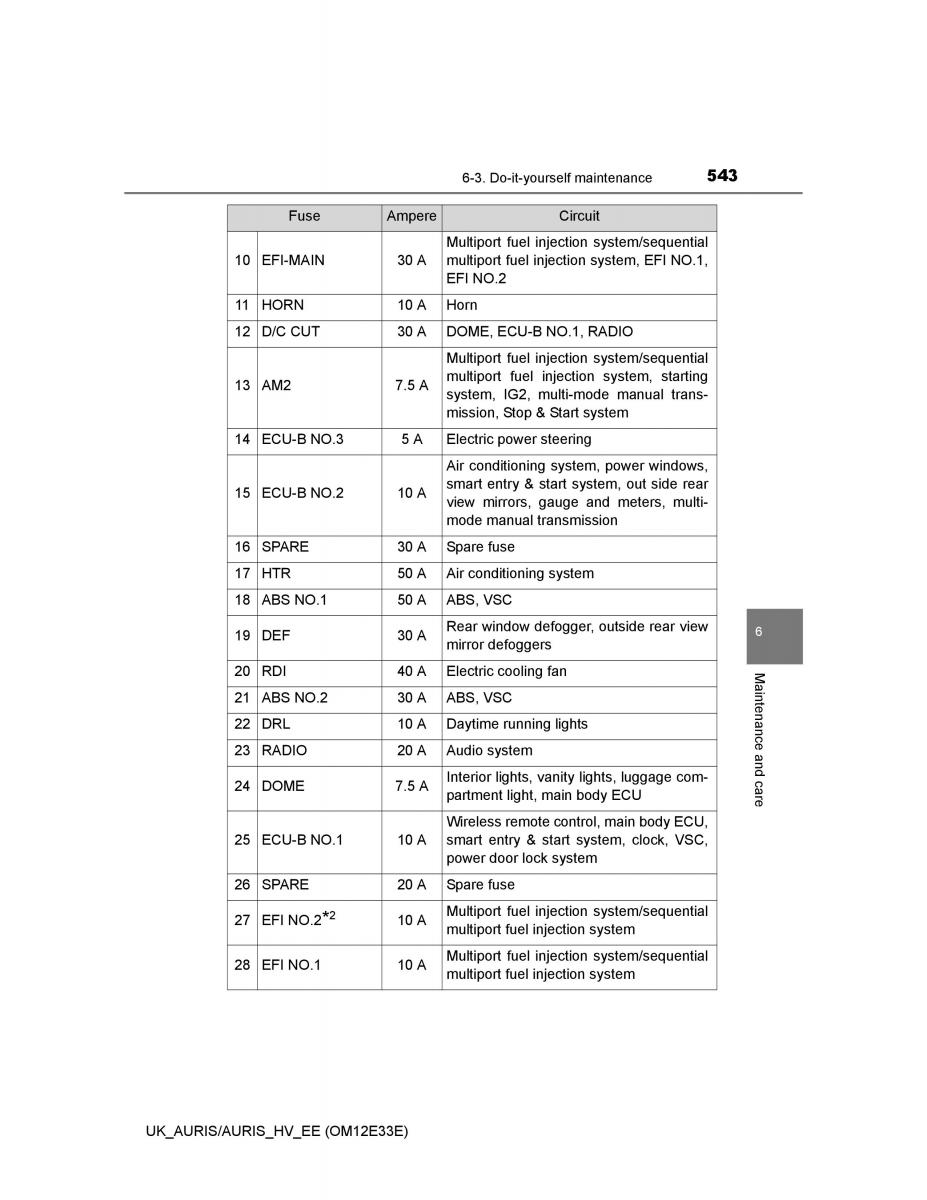

6-3. Do-it-yourself maintenance543
Fuse Ampere Circuit
Multiport fuel injection system/sequential
10 EFI-MAIN 30 A multiport fuel injection system, EFI NO.1,
EFI NO.2
11 HORN 10 A Horn
12 D/C CUT 30 A DOME, ECU-B NO.1, RADIO
Multiport fuel injection system/sequential
13 AM2 7.5 Amultiport fuel injection system, starting
system, IG2, multi-mode manual trans-
mission, Stop & Start system
14 ECU-B NO.3 5 A Electric power steering
Air conditioning system, power windows,
15 ECU-B NO.2 10 A smart entry & start system, out side rear
view mirrors, gauge and meters, multi-
mode manual transmission
16 SPARE 30 A Spare fuse
17 HTR 50 A Air conditioning system
18 ABS NO.1 50 A ABS, VSC
19 DEF 30 A Rear window defogger, outside rear view6
mirror defoggers
20 RDI 40 A Electric cooling fan Ma
21 ABS NO.2 30 A ABS, VSC intena
22 DRL 10 A Daytime running lights nce and
23 RADIO 20 A Audio system
24 DOME 7.5 AInterior lights, vanity lights, luggage com-care
partment light, main body ECU
Wireless remote control, main body ECU,
25 ECU-B NO.1 10 A smart entry & start system, clock, VSC,
power door lock system
26 SPARE 20 A Spare fuse
2 Multiport fuel injection system/sequential
27 EFI NO.2* 10 A multiport fuel injection system
28 EFI NO.1 10 A Multiport fuel injection system/sequential
multiport fuel injection system
UK_AURIS/AURIS_HV_EE (OM12E33E)
