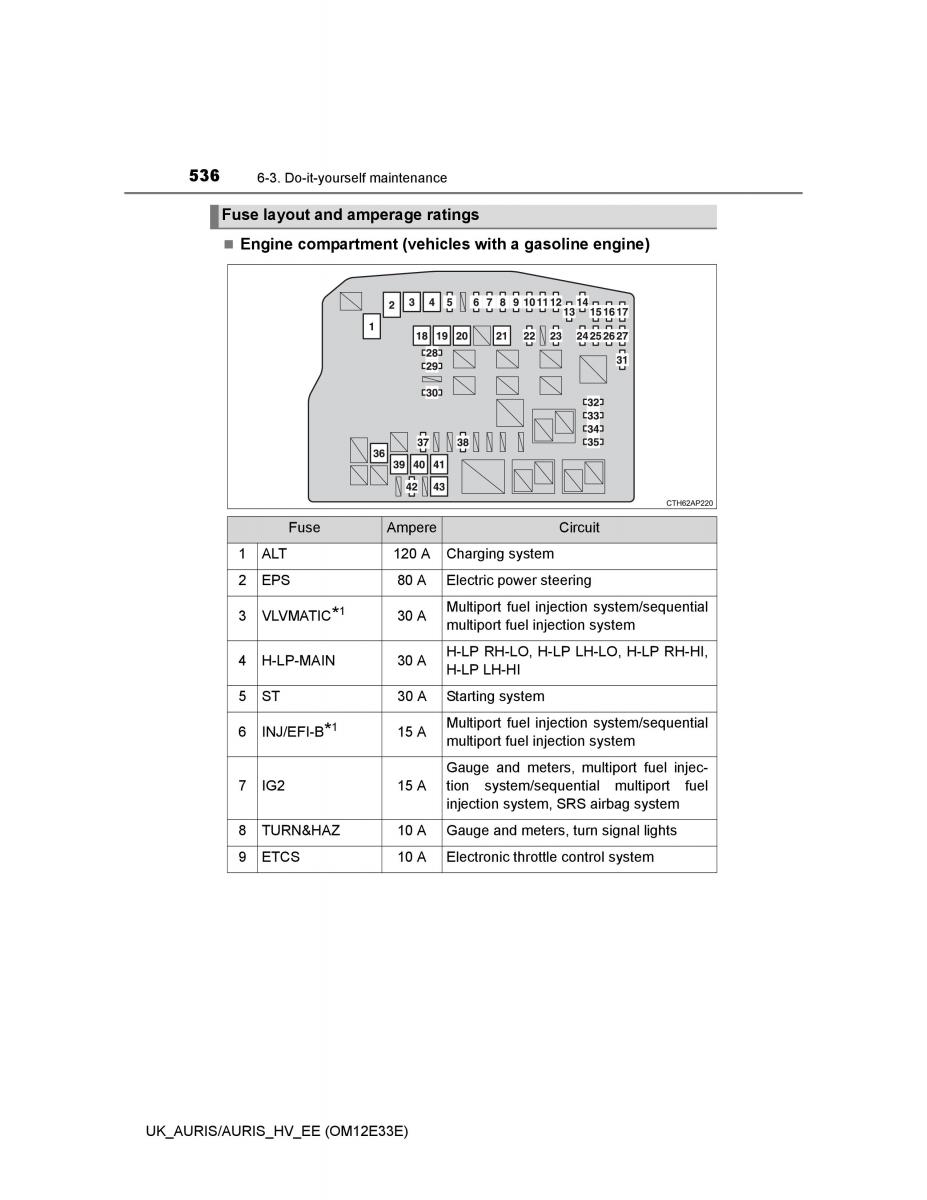

536 6-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
Engine compartment (vehicles with a gasoline engine)
Fuse Ampere Circuit
1 ALT 120 A Charging system
2 EPS 80 A Electric power steering
1 Multiport fuel injection system/sequential
3 VLVMATIC* 30 A multiport fuel injection system
4 H-LP-MAIN 30 A H-LP RH-LO, H-LP LH-LO, H-LP RH-HI,
H-LP LH-HI
5 ST 30 A Starting system
6 INJ/EFI-B*1 15 A Multiport fuel injection system/sequential
multiport fuel injection system
Gauge and meters, multiport fuel injec-
7 IG2 15 A tion system/sequential multiport fuel
injection system, SRS airbag system
8 TURN&HAZ 10 A Gauge and meters, turn signal lights
9 ETCS 10 A Electronic throttle control system
UK_AURIS/AURIS_HV_EE (OM12E33E)
