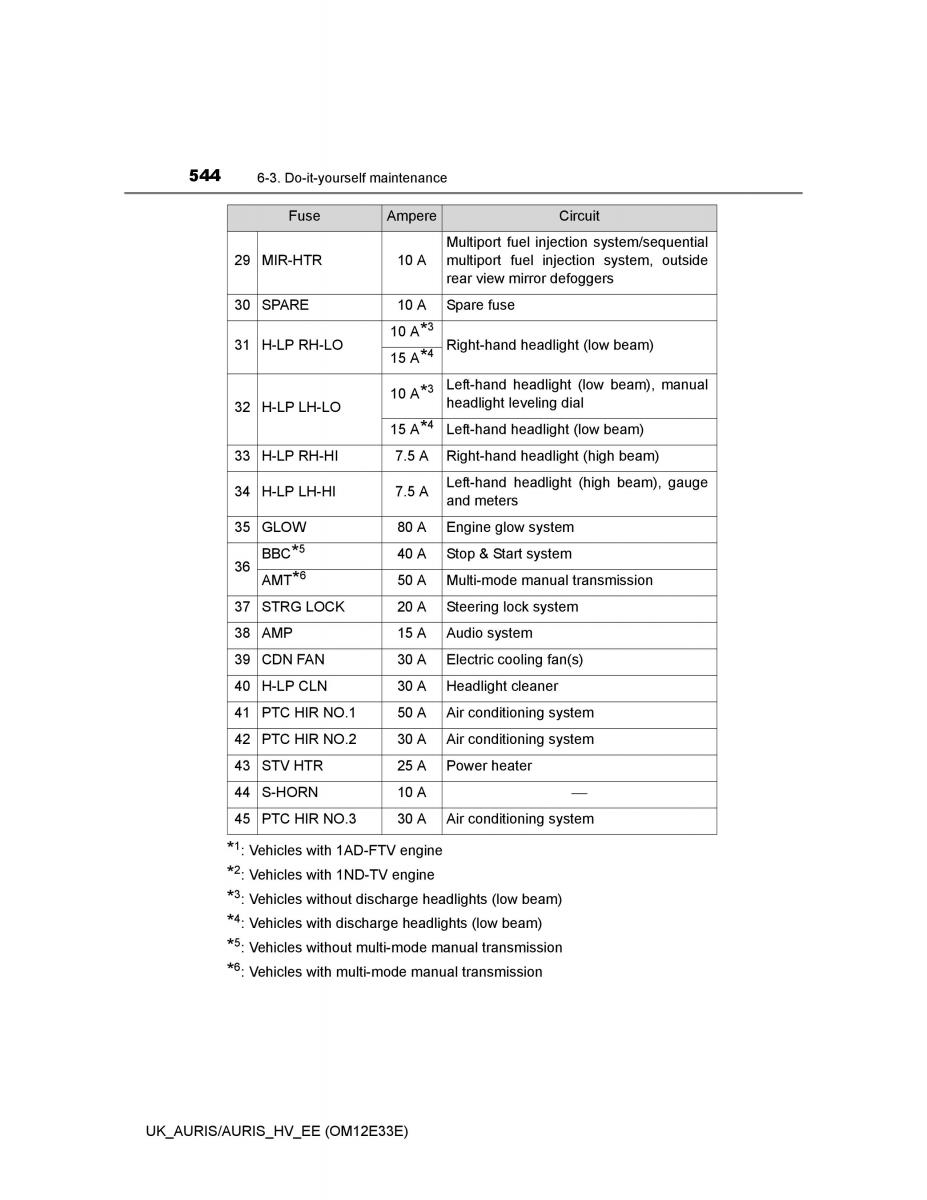

544 6-3. Do-it-yourself maintenance
Fuse Ampere Circuit
Multiport fuel injection system/sequential
29 MIR-HTR 10 A multiport fuel injection system, outside
rear view mirror defoggers
30 SPARE 10 A Spare fuse
10 A*3
31 H-LP RH-LO 15 A*4 Right-hand headlight (low beam)
10 A*3 Left-hand headlight (low beam), manual
32 H-LP LH-LO headlight leveling dial
15 A*4 Left-hand headlight (low beam)
33 H-LP RH-HI 7.5 ARight-hand headlight (high beam)
34 H-LP LH-HI 7.5 ALeft-hand headlight (high beam), gauge
and meters
35 GLOW 80 A Engine glow system
5
36 BBC* 40 A Stop & Start system
AMT*6 50 A Multi-mode manual transmission
37 STRG LOCK 20 A Steering lock system
38 AMP 15 A Audio system
39 CDN FAN 30 A Electric cooling fan(s)
40 H-LP CLN 30 A Headlight cleaner
41 PTC HIR NO.1 50 A Air conditioning system
42 PTC HIR NO.2 30 A Air conditioning system
43 STV HTR 25 A Power heater
44 S-HORN 10 A
45 PTC HIR NO.3 30 A Air conditioning system
1
* : Vehicles with 1AD-FTV engine
2
* : Vehicles with 1ND-TV engine
3
* : Vehicles without discharge headlights (low beam)
4
* : Vehicles with discharge headlights (low beam)
5
* : Vehicles without multi-mode manual transmission
6
* : Vehicles with multi-mode manual transmission
UK_AURIS/AURIS_HV_EE (OM12E33E)
