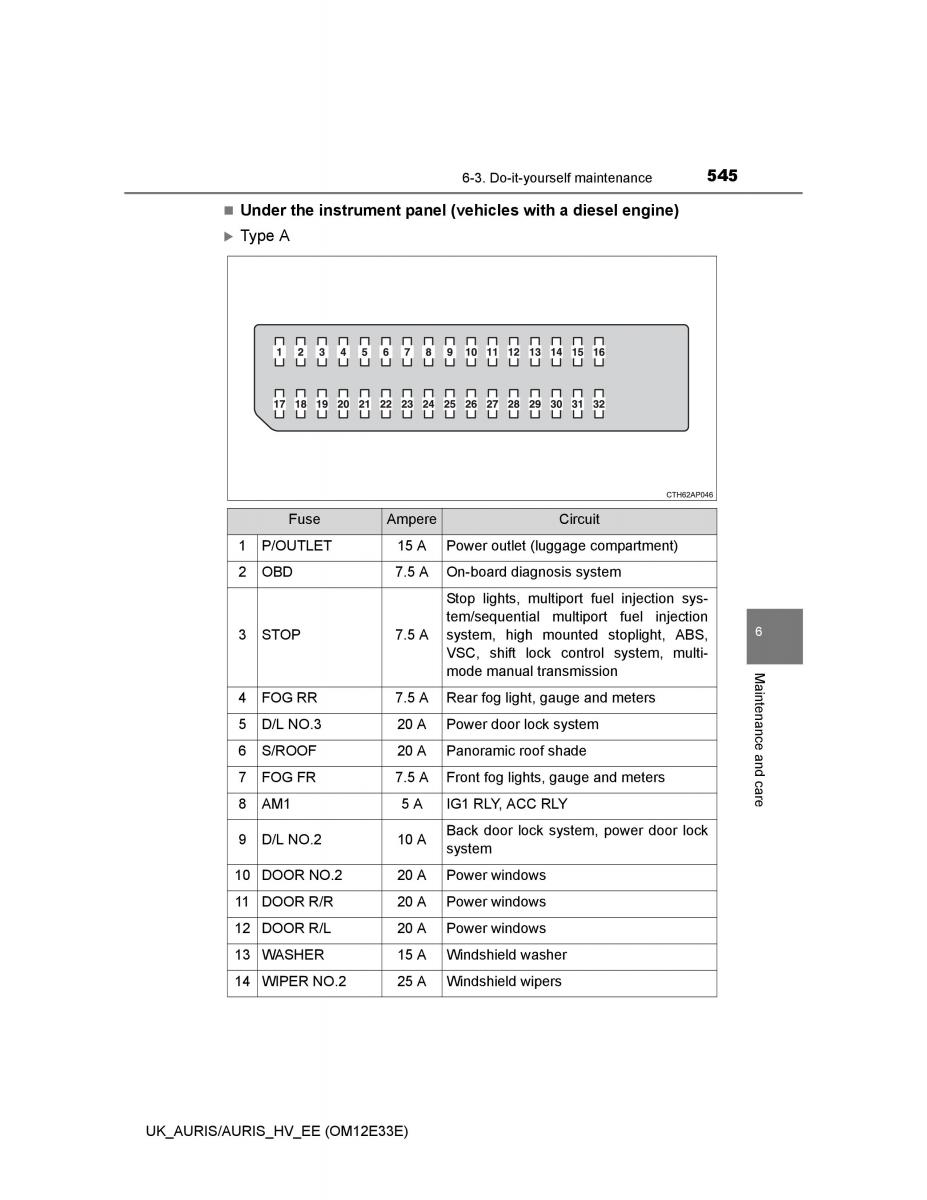

6-3. Do-it-yourself maintenance545
Under the instrument panel (vehicles with a diesel engine)
Type A
Fuse Ampere Circuit
1 P/OUTLET 15 A Power outlet (luggage compartment)
2 OBD 7.5 AOn-board diagnosis system
Stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
6
3 STOP 7.5 Asystem, high mounted stoplight, ABS,
VSC, shift lock control system, multi-
mode manual transmission Ma
4 FOG RR 7.5 A Rear fog light, gauge and metersintena
5 D/L NO.3 20 A Power door lock system nce and
6 S/ROOF 20 A Panoramic roof shade
7 FOG FR 7.5 AFront fog lights, gauge and meterscare
8 AM1 5 A IG1 RLY, ACC RLY
9 D/L NO.2 10 A Back door lock system, power door lock
system
10 DOOR NO.2 20 A Power windows
11DOOR R/R 20 A Power windows
12 DOOR R/L 20 A Power windows
13 WASHER 15 A Windshield washer
14 WIPER NO.2 25 A Windshield wipers
UK_AURIS/AURIS_HV_EE (OM12E33E)
