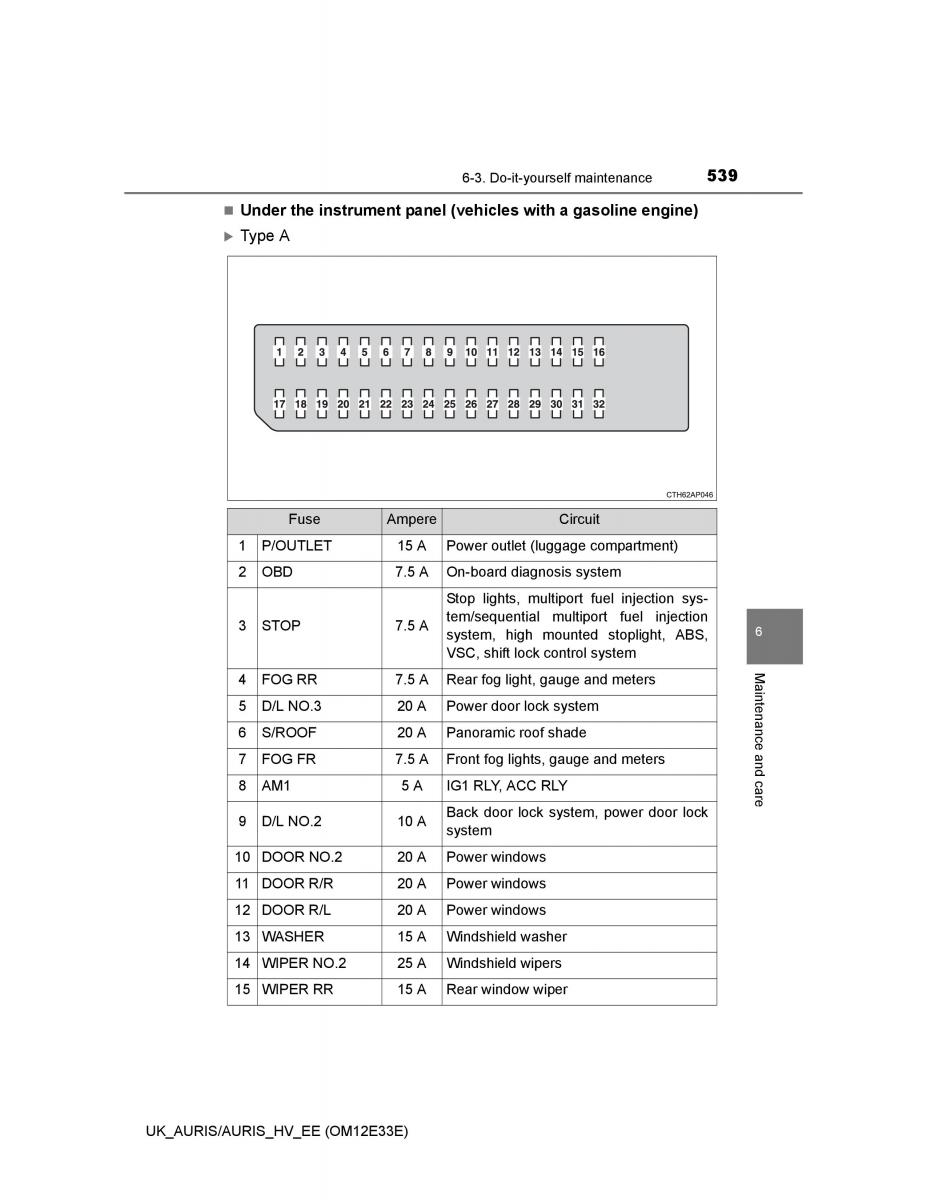

6-3. Do-it-yourself maintenance539
Under the instrument panel (vehicles with a gasoline engine)
Type A
Fuse Ampere Circuit
1 P/OUTLET 15 A Power outlet (luggage compartment)
2 OBD 7.5 AOn-board diagnosis system
Stop lights, multiport fuel injection sys-
3 STOP 7.5 Atem/sequential multiport fuel injection
6
system, high mounted stoplight, ABS,
VSC, shift lock control system
4 FOG RR 7.5 A Rear fog light, gauge and metersMa
5 D/L NO.3 20 A Power door lock system intena
6 S/ROOF 20 A Panoramic roof shade nce and
7 FOG FR 7.5 AFront fog lights, gauge and meters
8 AM1 5 A IG1 RLY, ACC RLY care
9 D/L NO.2 10 A Back door lock system, power door lock
system
10 DOOR NO.2 20 A Power windows
11DOOR R/R 20 A Power windows
12 DOOR R/L 20 A Power windows
13 WASHER 15 A Windshield washer
14 WIPER NO.2 25 A Windshield wipers
15 WIPER RR 15 A Rear window wiper
UK_AURIS/AURIS_HV_EE (OM12E33E)
