from owners manual to the vehicle Toyota Auris, year of production 2012:

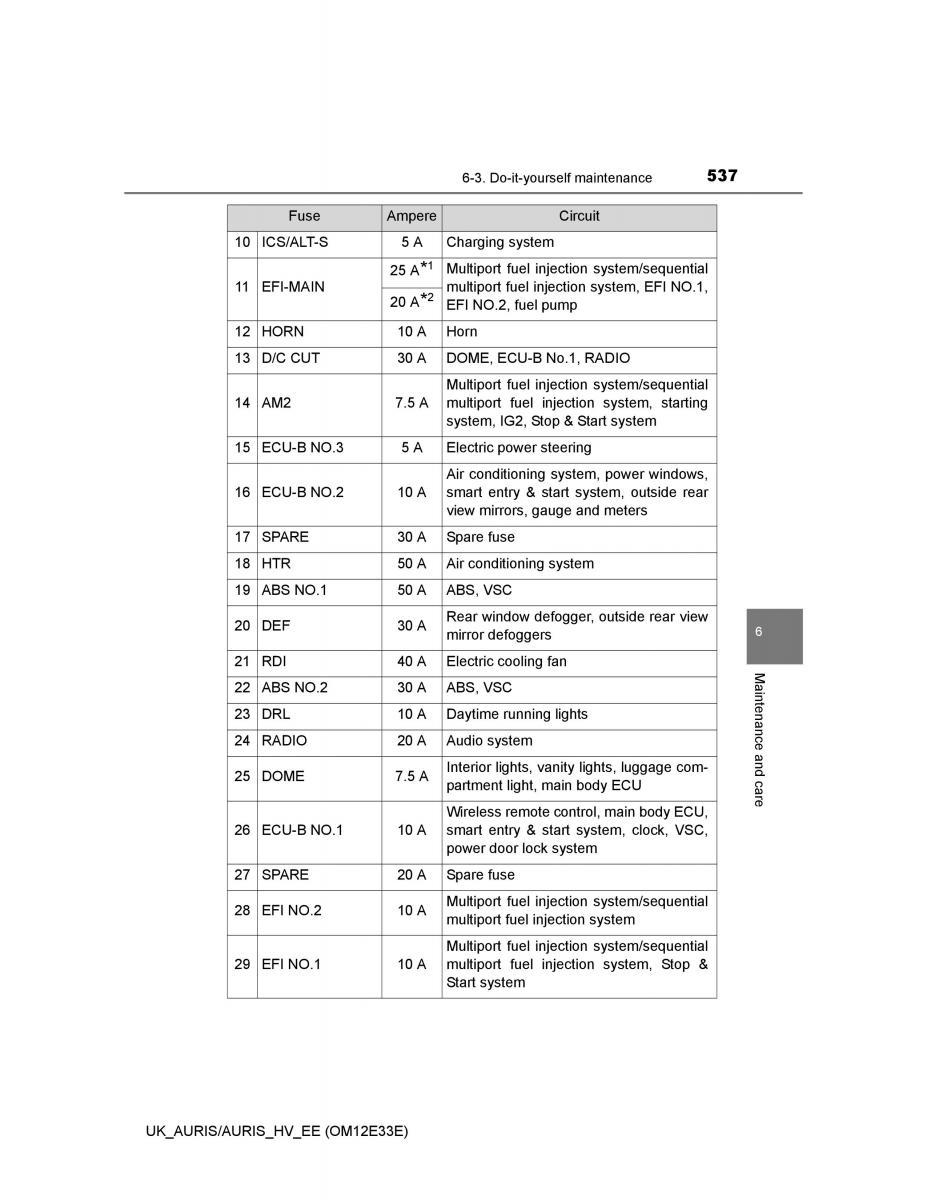

6-3. Do-it-yourself maintenance537
Fuse Ampere Circuit
10 ICS/ALT-S 5 A Charging system
25 A*1 Multiport fuel injection system/sequential
11 EFI-MAIN 20 A*2 multiport fuel injection system, EFI NO.1,
EFI NO.2, fuel pump
12 HORN 10 A Horn
13 D/C CUT 30 A DOME, ECU-B No.1, RADIO
Multiport fuel injection system/sequential
14 AM2 7.5 Amultiport fuel injection system, starting
system, IG2, Stop & Start system
15 ECU-B NO.3 5 A Electric power steering
Air conditioning system, power windows,
16 ECU-B NO.2 10 A smart entry & start system, outside rear
view mirrors, gauge and meters
17 SPARE 30 A Spare fuse
18 HTR 50 A Air conditioning system
19 ABS NO.1 50 A ABS, VSC
20 DEF 30 A Rear window defogger, outside rear view
mirror defoggers 6
21 RDI 40 A Electric cooling fan Ma
22 ABS NO.2 30 A ABS, VSC intena
23 DRL 10 A Daytime running lights
24 RADIO 20 A Audio system nce and
Interior lights, vanity lights, luggage com-
25 DOME 7.5 Apartment light, main body ECU care
Wireless remote control, main body ECU,
26 ECU-B NO.1 10 A smart entry & start system, clock, VSC,
power door lock system
27 SPARE 20 A Spare fuse
28 EFI NO.2 10 A Multiport fuel injection system/sequential
multiport fuel injection system
Multiport fuel injection system/sequential
29 EFI NO.1 10 A multiport fuel injection system, Stop &
Start system
UK_AURIS/AURIS_HV_EE (OM12E33E)
