text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

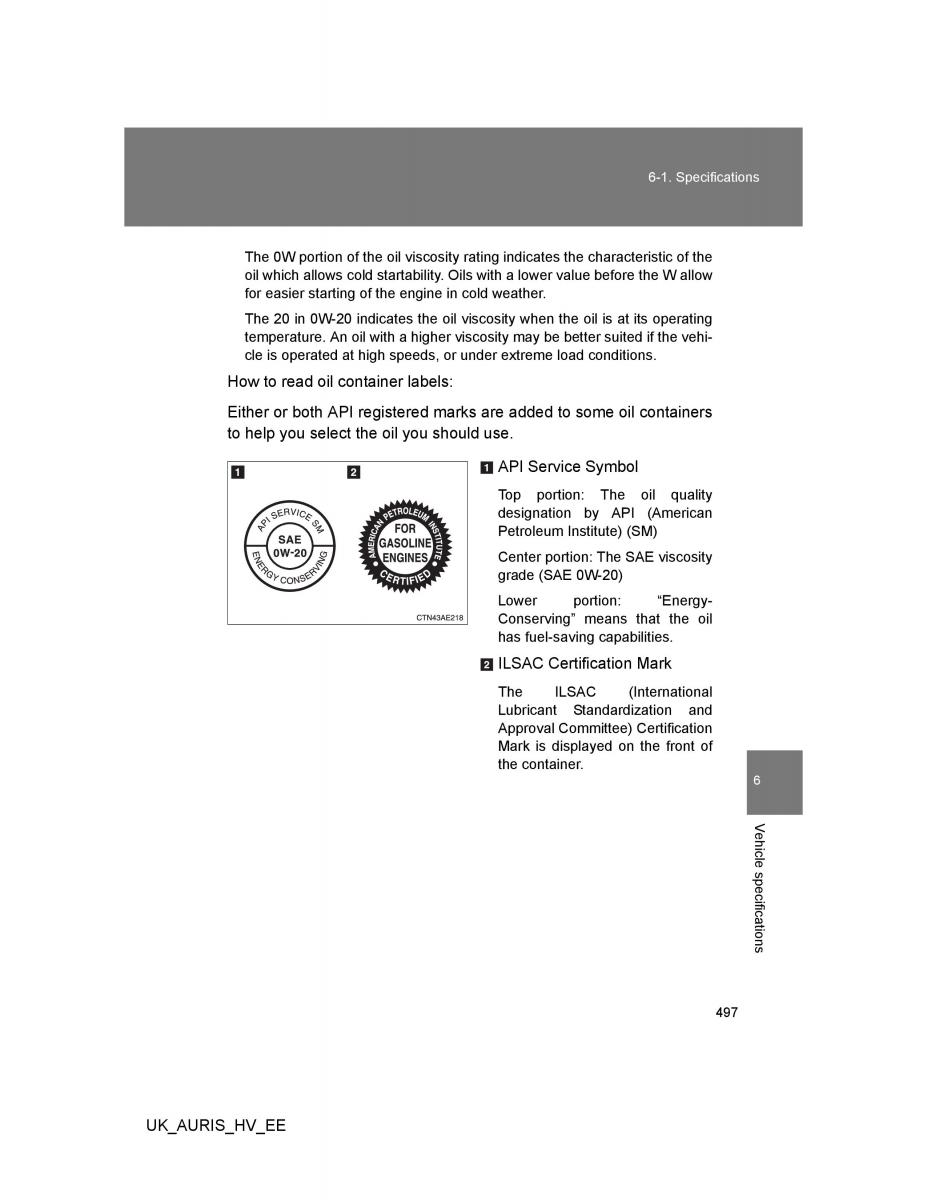

6-1. Specifications The 0W portion of the oil viscosity rating indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather. The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating temperature. An oil with a higher viscosity may be better suited if the vehi- cle is operated at high speeds, or under extreme load conditions. How to read oil container labels: Either or both API registered marks are added to some oil containers to help you select the oil you should use. API Service Symbol Top portion: The oil quality designation by API (American Petroleum Institute) (SM) Center portion: The SAE viscosity grade (SAE 0W-20) Lower portion: “Energy- Conserving” means that the oil has fuel-saving capabilities. ILSAC Certification Mark The ILSAC (International Lubricant Standardization and Approval Committee) Certification Mark is displayed on the front of the container. 6 Vehi cl e specificatio ns 497 UK_AURIS_HV_EE
