owners manual Toyota Auris Hybrid

owners manual Toyota Auris Hybrid - year of production: 2007, 2008, 2009, 2010, 2011, 2012 - Toyota Auris Hybrid I 1 owners manual EN

Document: pdf (27.62 MB) 524 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

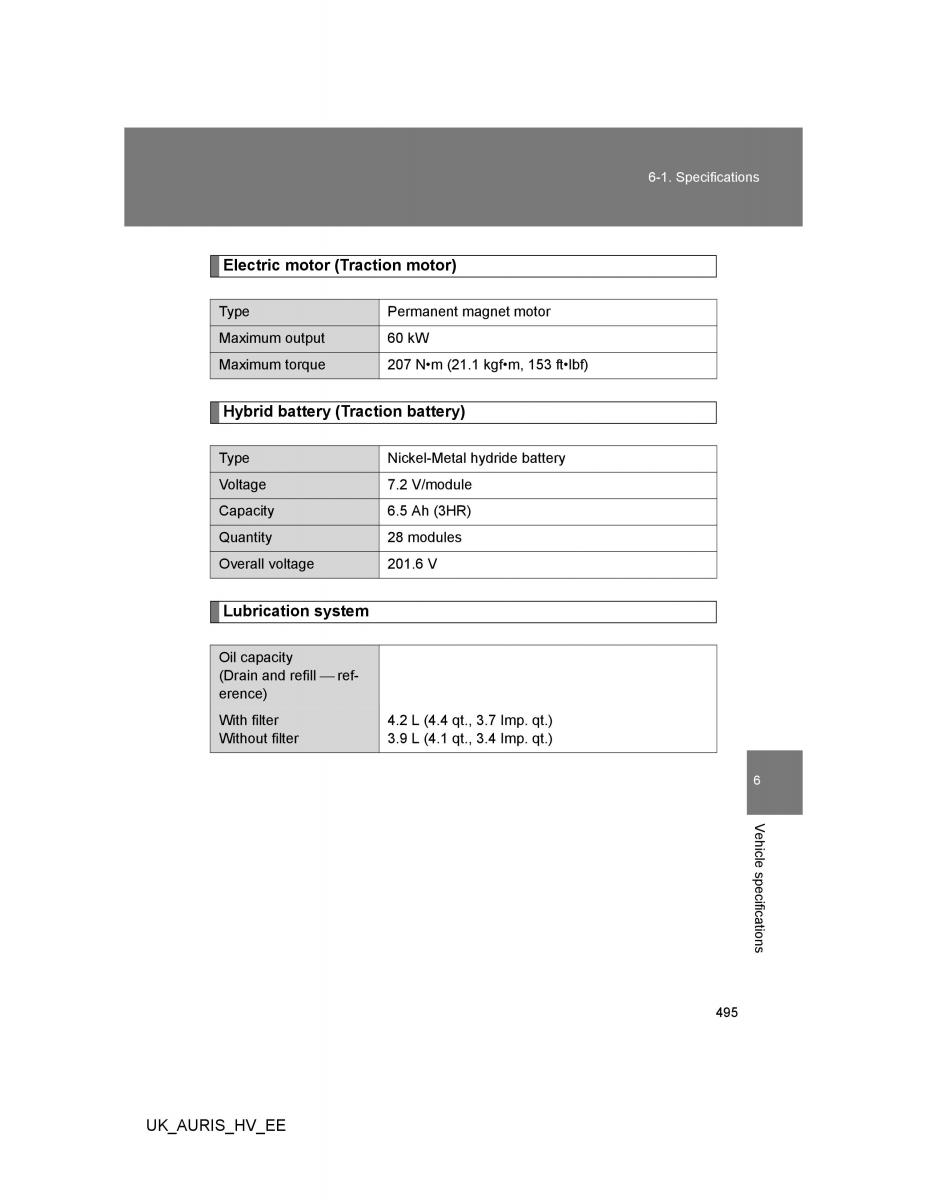

6-1. Specifications Electric motor (Traction motor) Type Permanent magnet motor Maximum output 60 kW Maximum torque 207 N•m (21.1 kgf•m, 153 ft•lbf) Hybrid battery (Traction battery) Type Nickel-Metal hydride battery Voltage 7.2 V/module Capacity 6.5 Ah (3HR) Quantity 28 modules Overall voltage 201.6 V Lubrication system Oil capacity (Drain and refill ref- erence) With filter 4.2 L (4.4 qt., 3.7 Imp. qt.) Without filter 3.9 L (4.1 qt., 3.4 Imp. qt.) 6 Vehi cl e specificatio ns 495 UK_AURIS_HV_EE
