owners manual Toyota Auris Hybrid

owners manual Toyota Auris Hybrid - year of production: 2007, 2008, 2009, 2010, 2011, 2012 - Toyota Auris Hybrid I 1 owners manual EN

Document: pdf (27.62 MB) 524 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

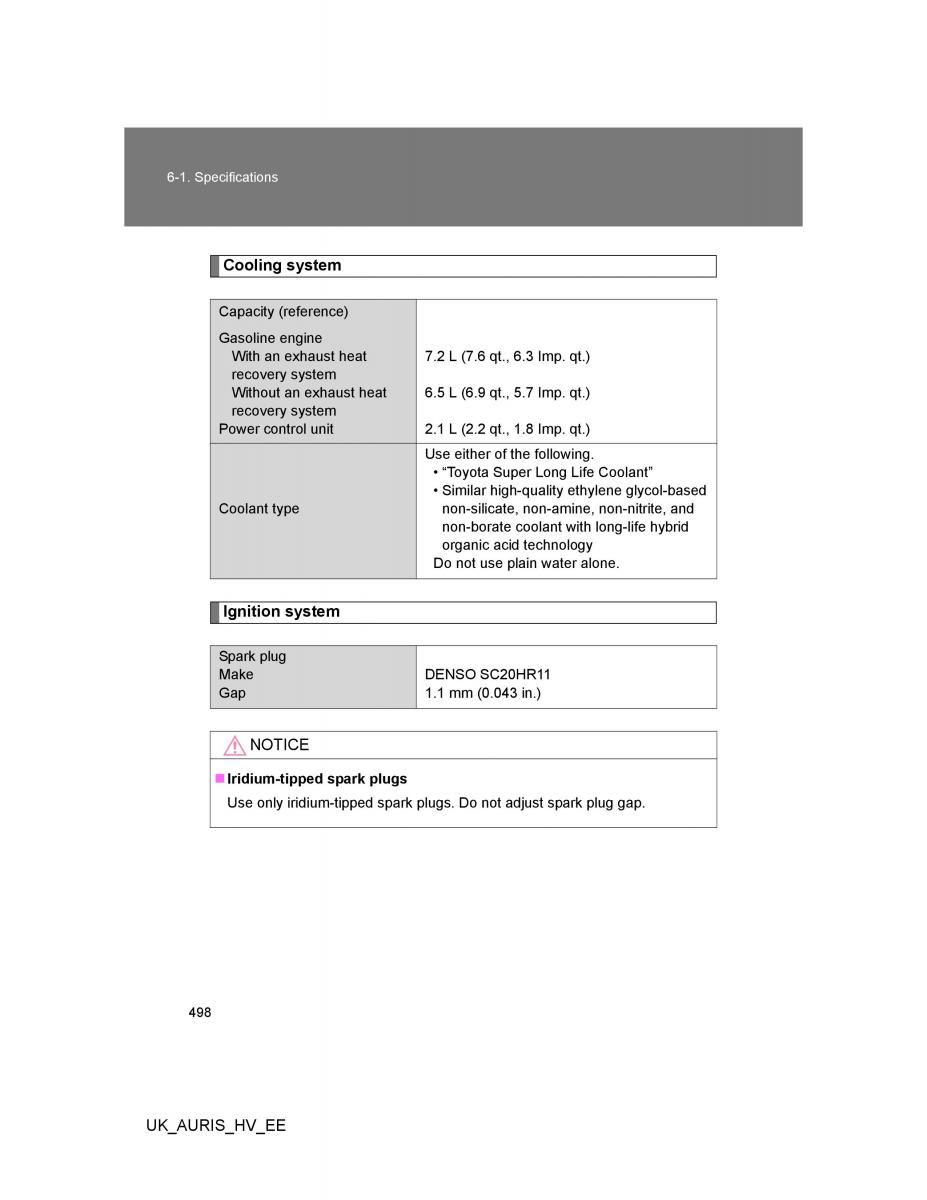

6-1. Specifications Cooling system Capacity (reference) Gasoline engine With an exhaust heat 7.2 L (7.6 qt., 6.3 Imp. qt.) recovery system Without an exhaust heat 6.5 L (6.9 qt., 5.7 Imp. qt.) recovery system Power control unit2.1 L (2.2 qt., 1.8 Imp. qt.) Use either of the following. “Toyota Super Long Life Coolant” Similar high-quality ethylene glycol-based Coolant type non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology Do not use plain water alone. Ignition system Spark plug Make DENSO SC20HR11 Gap 1.1 mm (0.043 in.) NOTICE Iridium-tipped spark plugs Use only iridium-tipped spark plugs. Do not adjust spark plug gap. 498 UK_AURIS_HV_EE
