owners manual Toyota Auris Hybrid

owners manual Toyota Auris Hybrid - year of production: 2007, 2008, 2009, 2010, 2011, 2012 - Toyota Auris Hybrid I 1 owners manual EN

Document: pdf (27.62 MB) 524 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

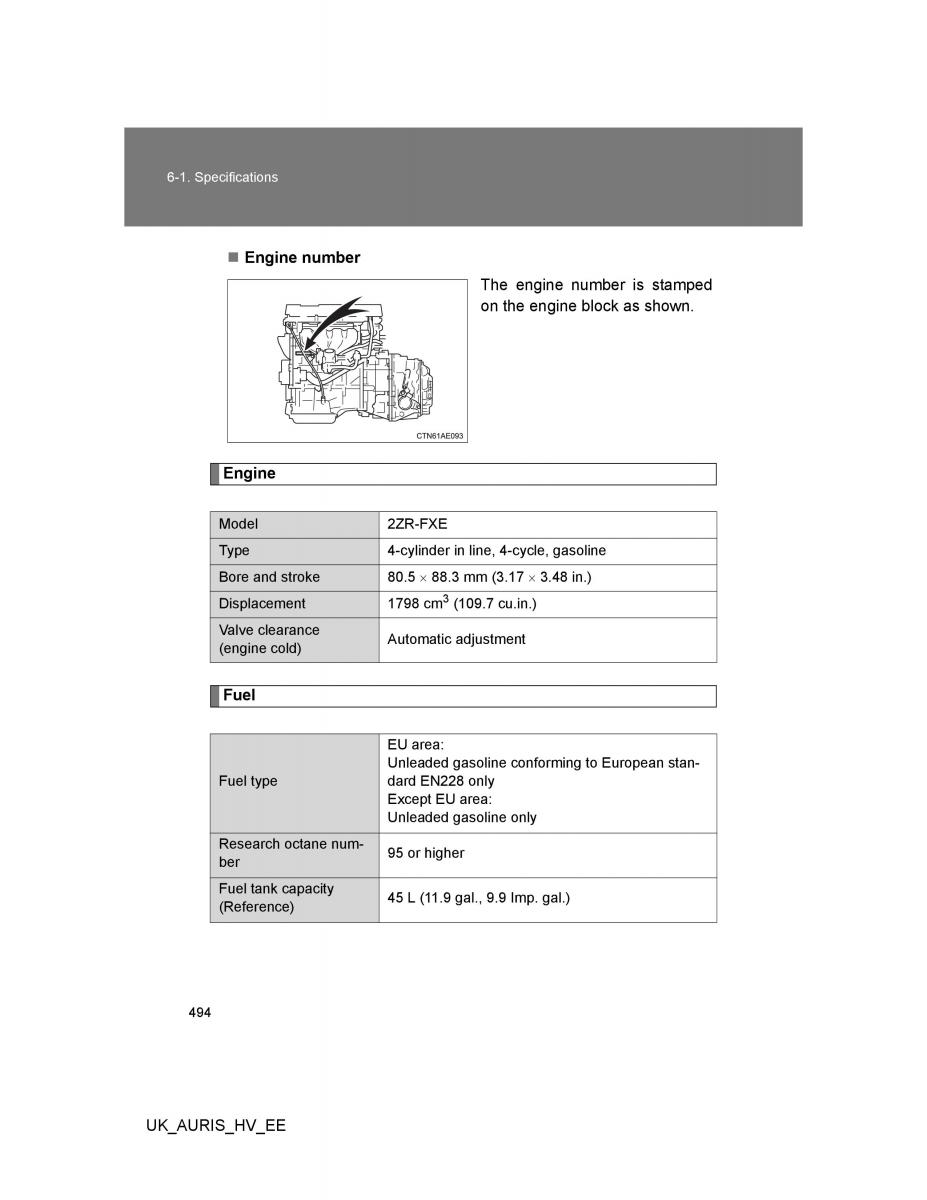

6-1. Specifications Engine number The engine number is stamped on the engine block as shown. Engine Model 2ZR-FXE Type 4-cylinder in line, 4-cycle, gasoline Bore and stroke 80.5  88.3 mm (3.17  3.48 in.) 3 Displacement 1798 cm (109.7 cu.in.) Valve clearance Automatic adjustment (engine cold) Fuel EU area: Unleaded gasoline conforming to European stan- Fuel type dard EN228 only Except EU area: Unleaded gasoline only Research octane num-95 or higher ber Fuel tank capacity 45 L (11.9 gal., 9.9 Imp. gal.) (Reference) 494 UK_AURIS_HV_EE
