text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

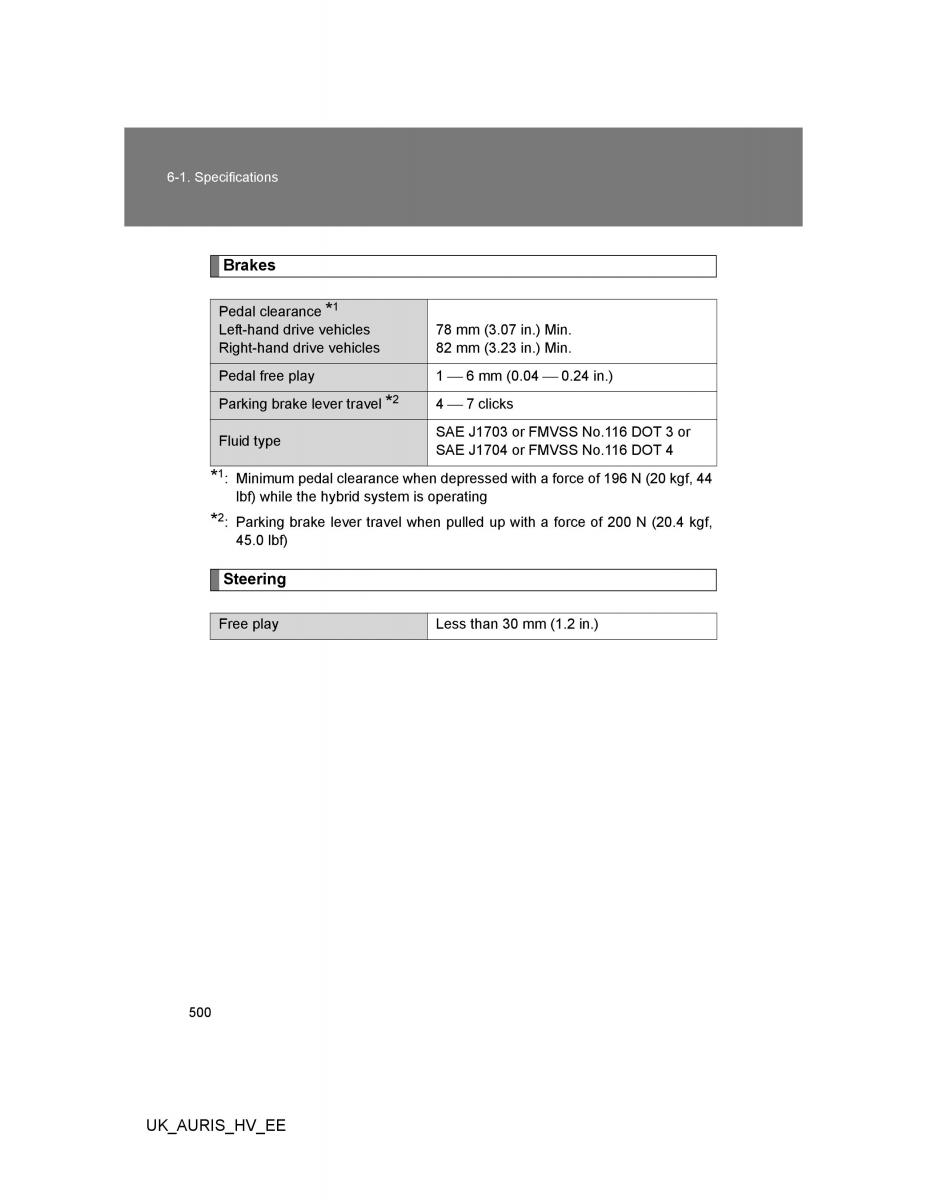

6-1. Specifications Brakes 1 Pedal clearance* Left-hand drive vehicles78 mm (3.07 in.) Min. Right-hand drive vehicles82 mm (3.23 in.) Min. Pedal free play 1  6 mm (0.04  0.24 in.) 2 Parking brake lever travel*4  7 clicks Fluid type SAE J1703 or FMVSS No.116 DOT 3 or SAE J1704 or FMVSS No.116 DOT 4 1 * : Minimum pedal clearance when depressed with a force of 196 N (20 kgf, 44 lbf) while the hybrid system is operating 2 * : Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf, 45.0 lbf) Steering Free play Less than 30 mm (1.2 in.) 500 UK_AURIS_HV_EE
