text version of content this owner's manual page from owners manual to the vehicle Hyundai i30, year of production 2007 - 2012:

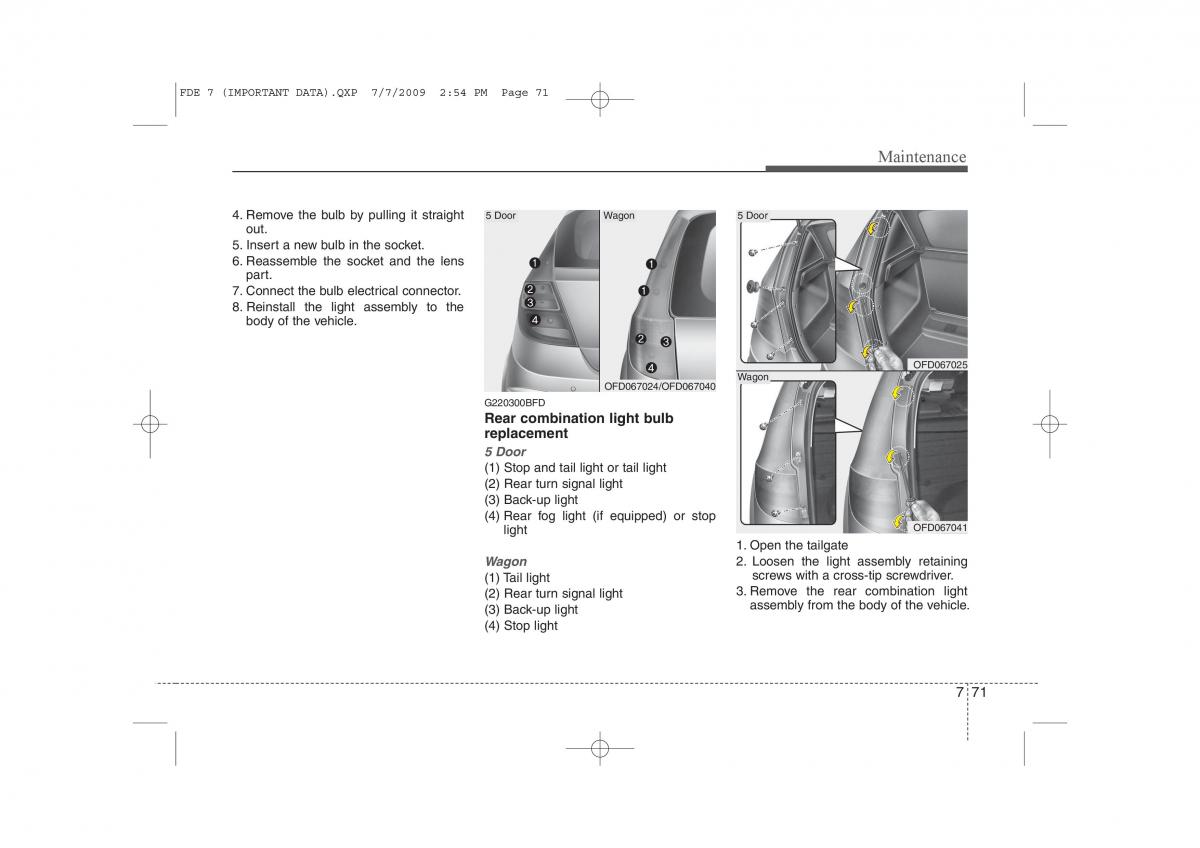

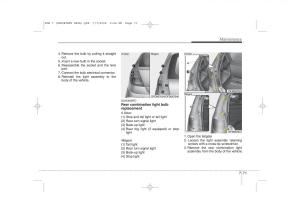

FDE 7 (IMPORTANT DATA).QXP 7/7/2009 2:54 PM Page 71 Maintenance 5 Door Wagon 5 Door 4. Remove the bulb by pulling it straight out. 5. Insert a new bulb in the socket. 6. Reassemble the socket and the lens part. 7. Connect the bulb electrical connector. 8. Reinstall the light assembly to the body of the vehicle. OFD067025 Wagon OFD067024/OFD067040 G220300BFD Rear combination light bulb replacement 5 Door (1) Stop and tail light or tail light (2) Rear turn signal light (3) Back-up light (4) Rear fog light (if equipped) or stop light OFD067041 1. Open the tailgate Wagon 2. Loosen the light assembly retaining (1) Tail light screws with a cross-tip screwdriver. (2) Rear turn signal light 3. Remove the rear combination light (3) Back-up light assembly from the body of the vehicle. (4) Stop light 771
