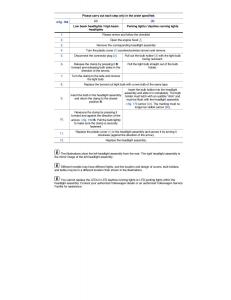

text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

The illustrations show the left headlight. The right headlight is the mirror image. Replacing light bulbs in the front bumper Fig. 173 In front left bumper: Removing the light assembly. Fig. 174 Replacing light bulbs in the front bumper. ¤Please first read and note the introductory information and heed the WARNINGS Please carry out each step only in the order specified: Turn signal ⇒ fig. 174 (2) Front fog light / Cornering light (4) 1. Please review and follow the checklist 2. Pull the cover forward slightly at the retainers (small arrows) ⇒ fig. 173 using the wheel cover clip from the vehicle tool kit until the retainers release. 3. Pull the cover forward in the direction of the arrow (beginning on the inside). 4. Unscrew the fastening sc(1re) awsn d (2) with the flat blade of the screwdriver from the vehicle tool kit 5. Tilt the headlight assembly slightly forward and pull out of the mounts ⇒ fig. 174 (small arrows).
