text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

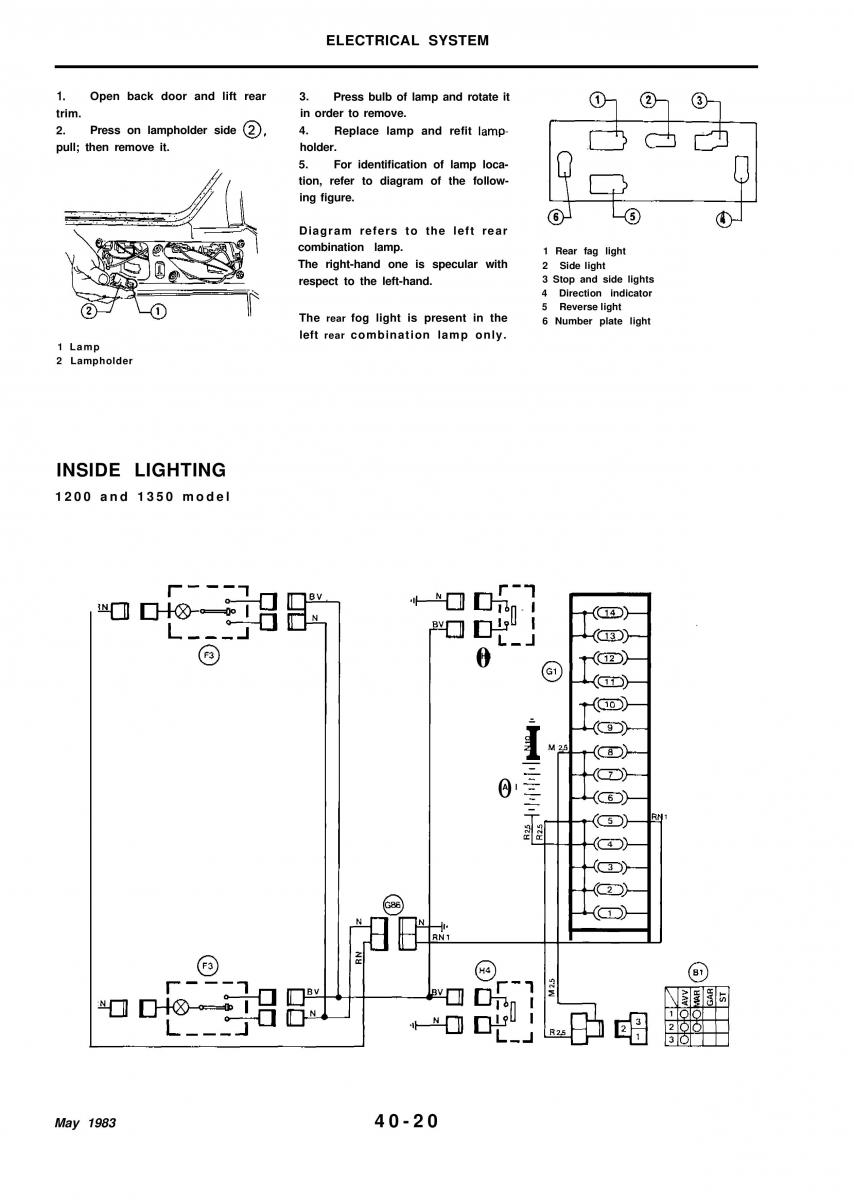

ELECTRICAL SYSTEM Open back door and lift rear 1. 3. Press bulb of lamp and rotate it trim. in order to remove. Press on lampholder side0, 2. 4. Replace lamp and refitlamp- pull; then remove it. holder. 5. For identification of lamp loca- tion, refer to diagram of the follow- ing figure. 4 0-J Diagram refers to the left rear combination lamp. 1 Rear fag light The right-hand one is specular with 2 Side light respect to the left-hand. 3 Stop and side lights 4 Direction indicator 5 Reverse light The rear fog light is present in the 6 Number plate light left rear combination lamp only. 1 Lamp 2 Lampholder INSIDE LIGHTING 1200 and 1350 model H4 0 Gl O- P z hnz I - - Al -% 0 ‘=- it* Nl May 1983 40-20
