text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

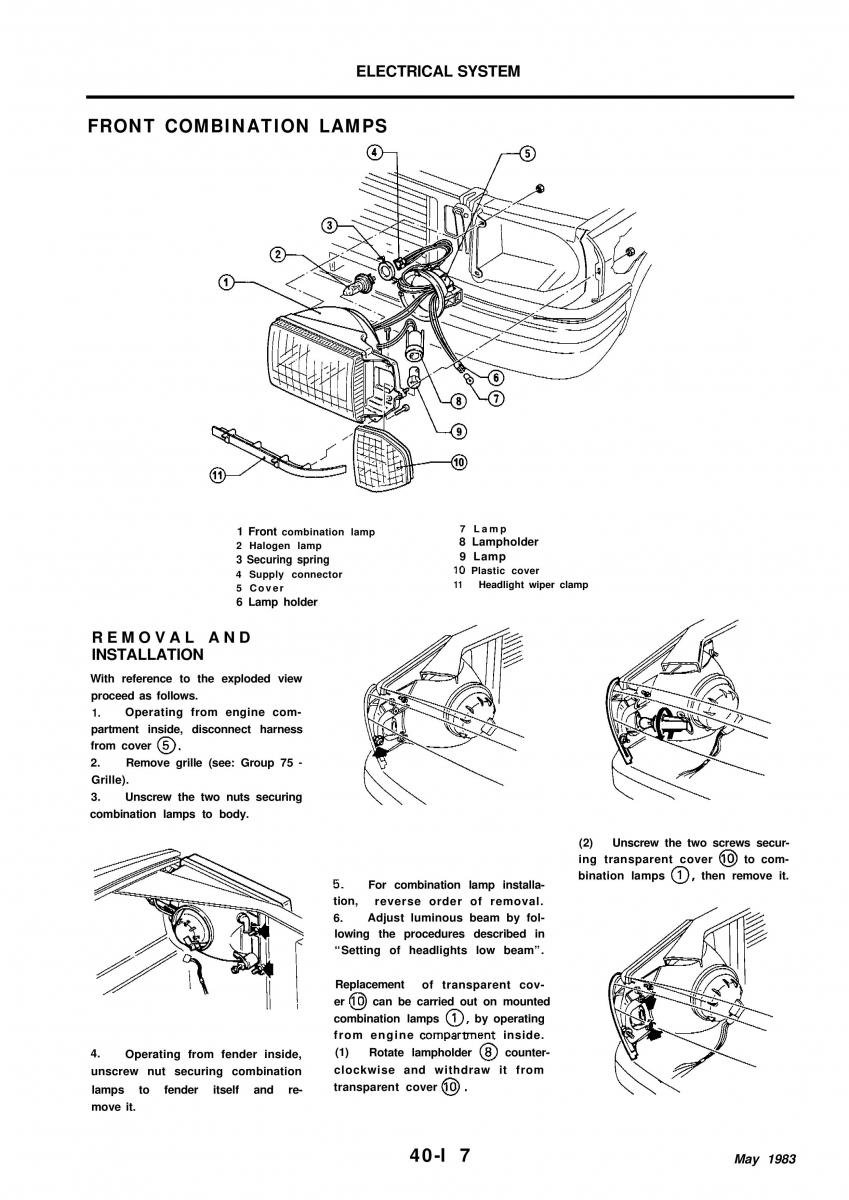

ELECTRICAL SYSTEM FRONT COMBINATION LAMPS 1 Frontcombination lamp 7 Lamp 2 Halogen lamp 8 Lampholder 3 Securing spring 9 Lamp IO Plastic cover 4 Supply connector 5 Cover 11 Headlight wiper clamp 6 Lamp holder REMOVAL AND INSTALLATION With reference to the exploded view proceed as follows. 1. Operating from engine com- partment inside, disconnect harness from cover0. 2. Remove grille (see: Group 75- Grille). 3. Unscrew the two nuts securing combination lamps to body. (2) Unscrew the two screws secur- ing transparent cover@J to com- 5. bination lamps0, then remove it. For combination lamp installa- tion,reverse order of removal. 6. Adjust luminous beam by fol- lowing the procedures described in “Setting of headlights low beam”. Replacement of transparent cov- er @ can be carried out on mounted combination lamps 0, by operating from enginecomparment inside. 4. (1) Rotate lampholder@ counter- Operating from fender inside, clockwise and withdraw it from unscrew nut securing combination transparent coverIO lamps to fender itself and re- 0. move it. 40-l 7 May 1983
