text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

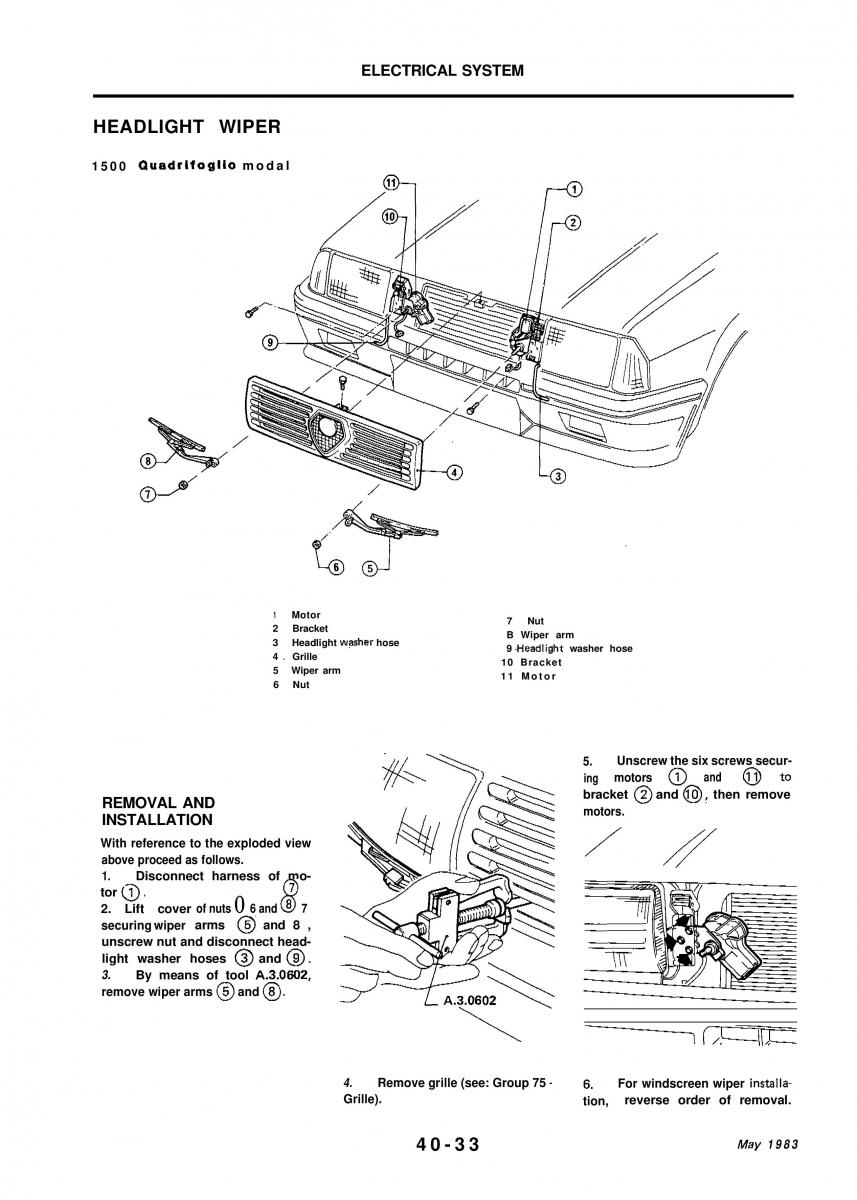

ELECTRICAL SYSTEM HEADLIGHT WIPER 1500Quadrlfogllo modal 1 Motor 7 Nut 2 Bracket B Wiper arm 3 Headlight wpsher hose 9 .Headlight washer hose 4 . Grille 10 Bracket 5 Wiper arm 11 Motor 6 Nut 5. Unscrew the six screws secur- ing motors @ and @to REMOVAL AND bracket @ and @ ! then remove INSTALLATION motors. With reference to the exploded view above proceed as follows. 1. Disconnect harness of mo- tor (iJ . of nuts 0 6 and 8 7 2. Lift cover securing wiper arms @ and 8 , unscrew nut and disconnect head- light washer hoses@ and@. 3. By means of toolA.3.0602, remove wiper arms @ and @. 4. Remove grille (see: Group 75 ”6. For windscreen wiper installa- Grille). tion, reverse order of removal. 40-33 May 1983
