text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

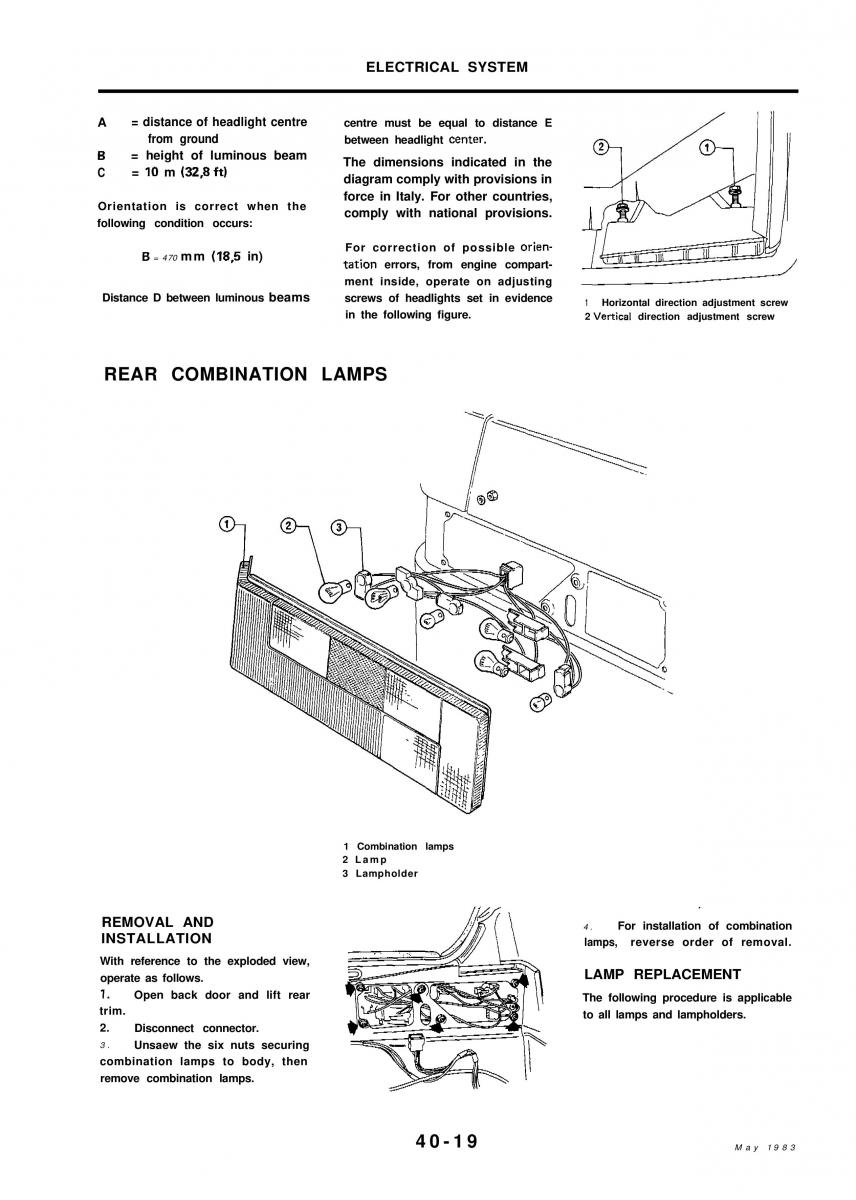

ELECTRICAL SYSTEM = distance of headlight centre A centre must be equal to distance E from ground between headlightcenter. B = height of luminous beam C = IO m (32,8 ft) The dimensions indicated in the diagram comply with provisions in force in Italy. For other countries, Orientation is correct when the following condition occurs:comply with national provisions. 6 = 470mm (‘l8,5 in) For correction of possibleorien- tation errors, from engine compart- ment inside, operate on adjusting Distance D between luminousbeams screws of headlights set in evidence 1 Horizontal direction adjustment screw in the following figure. 2 Verrical direction adjustment screw REAR COMBINATION LAMPS 1 Combination lamps 2 Lamp 3 Lampholder REMOVAL AND 4. For installation of combination INSTALLATION lamps, reverse order of removal. With reference to the exploded view, LAMP REPLACEMENT operate as follows. I. Open back door and lift rear The following procedure is applicable trim. to all lamps and lampholders. 2. Disconnect connector. 3. Unsaew the six nuts securing combination lamps to body, then remove combination lamps. 40-19 May 1983
