text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

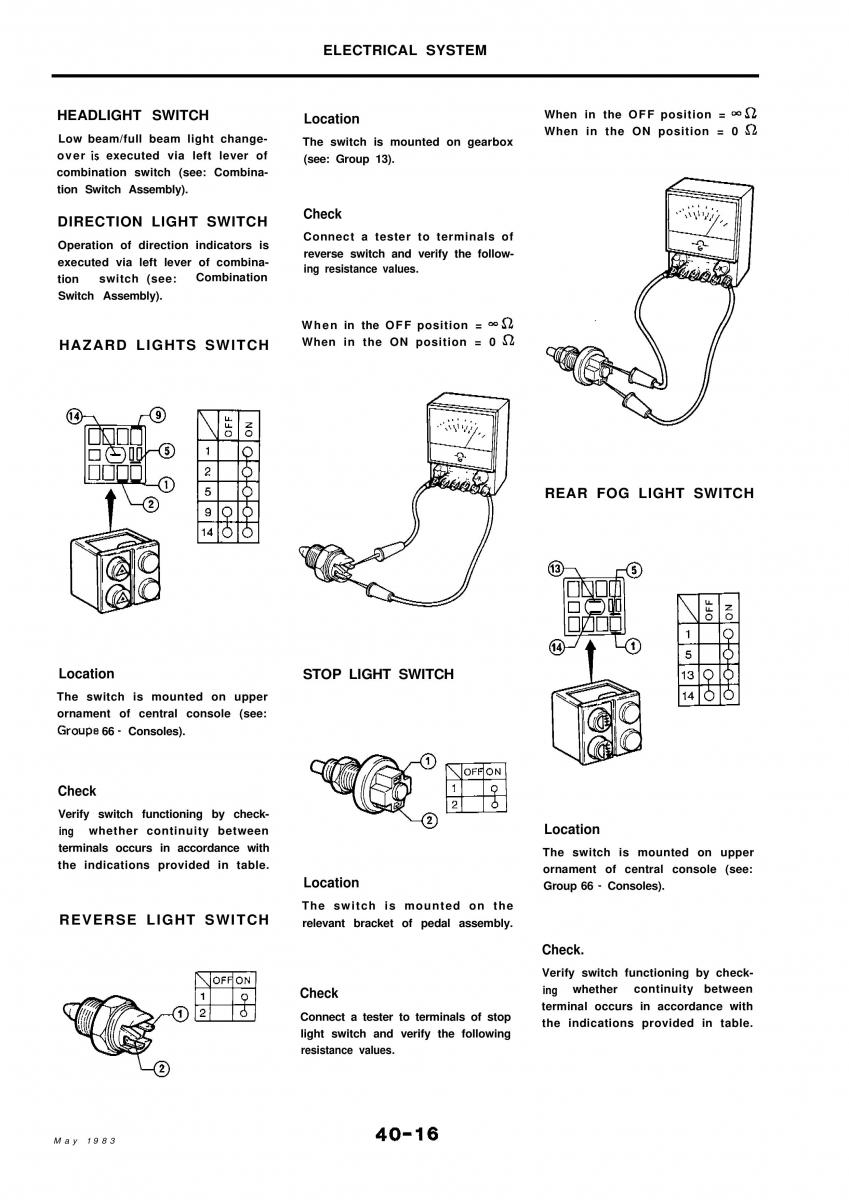

ELECTRICAL SYSTEM HEADLIGHT SWITCH Location When in theOFF position = ma When in the ON position = 0fi Low beam/full beam light change- The switch is mounted on gearbox over is executed via left lever of (see: Group 13). combination switch (see: Combina- tion Switch Assembly). Check DIRECTION LIGHT SWITCH Connect a tester to terminals of Operation of direction indicators is reverse switch and verify the follow- executed via left lever of combina- Combination ing resistance values. tion switch (see: Switch Assembly). When in theOFF position =-a When in the ON position = 0a HAZARD LIGHTS SWITCH REAR FOG LIGHT SWITCH Location STOP LIGHT SWITCH The switch is mounted on upper ornament of central console (see: Groupe 66 - Consoles). Check Verify switch functioning by check- Location ing whether continuity between terminals occurs in accordance with The switch is mounted on upper the indications provided in table. Location ornament of central console (see: Group 66 - Consoles). The switch is mounted on the REVERSE LIGHT SWITCH relevant bracket of pedal assembly. Check. Verify switch functioning by check- Check ing whether continuity between terminal occurs in accordance with Connect a tester to terminals of stop the indications provided in table. light switch and verify the following resistance values. May 1983 40-16
