text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:

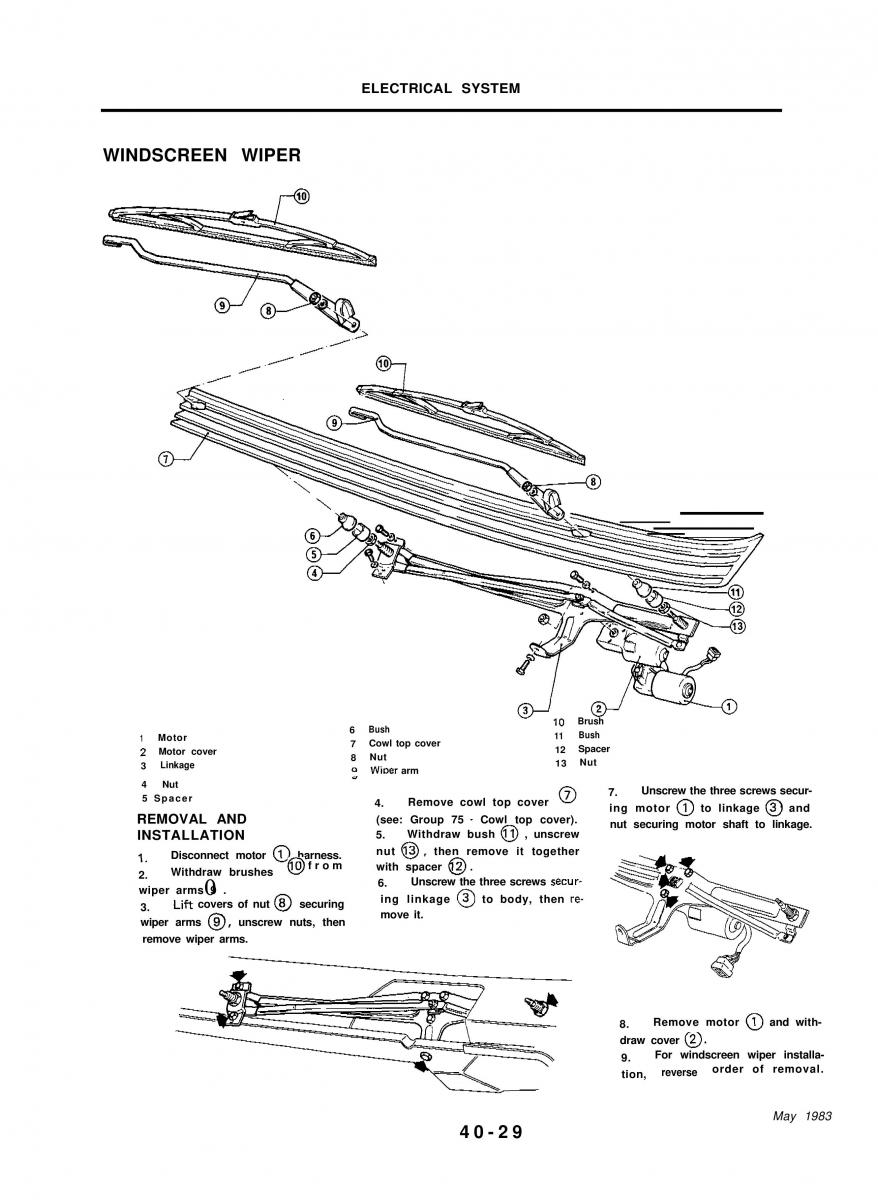

ELECTRICAL SYSTEM WINDSCREEN WIPER 6 Bush IO Brush 1 Motor 7 Cowl top cover 11 Bush 2 Motor cover 8 Nut 12 Spacer 3 Linkage 0 Wiser arm 13 Nut 4 Nut 7. Unscrew the three screws secur- 5 Spacer 0 4. Remove cowl top cover ing motor0 to linkage @ and REMOVAL AND (see: Group 75- Cowl top cover). nut securing motor shaft to linkage. INSTALLATION 5. Withdraw bush@) , unscrew 1. Disconnect motor 0 harness. nut 8, then remove it together 0 from with spacer@ . 0 2. Withdraw brushes 6. Unscrew the three screws secur- wiper arms 9 . 0 ing linkage@ to body, then re- 3. Lift covers of nut@ securing move it. wiper arms@, unscrew nuts, then remove wiper arms. 8. Remove motor0 and with- draw cover@. 9. For windscreen wiper installa- tion, reverseorder of removal. 40-29 May 1983
