text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

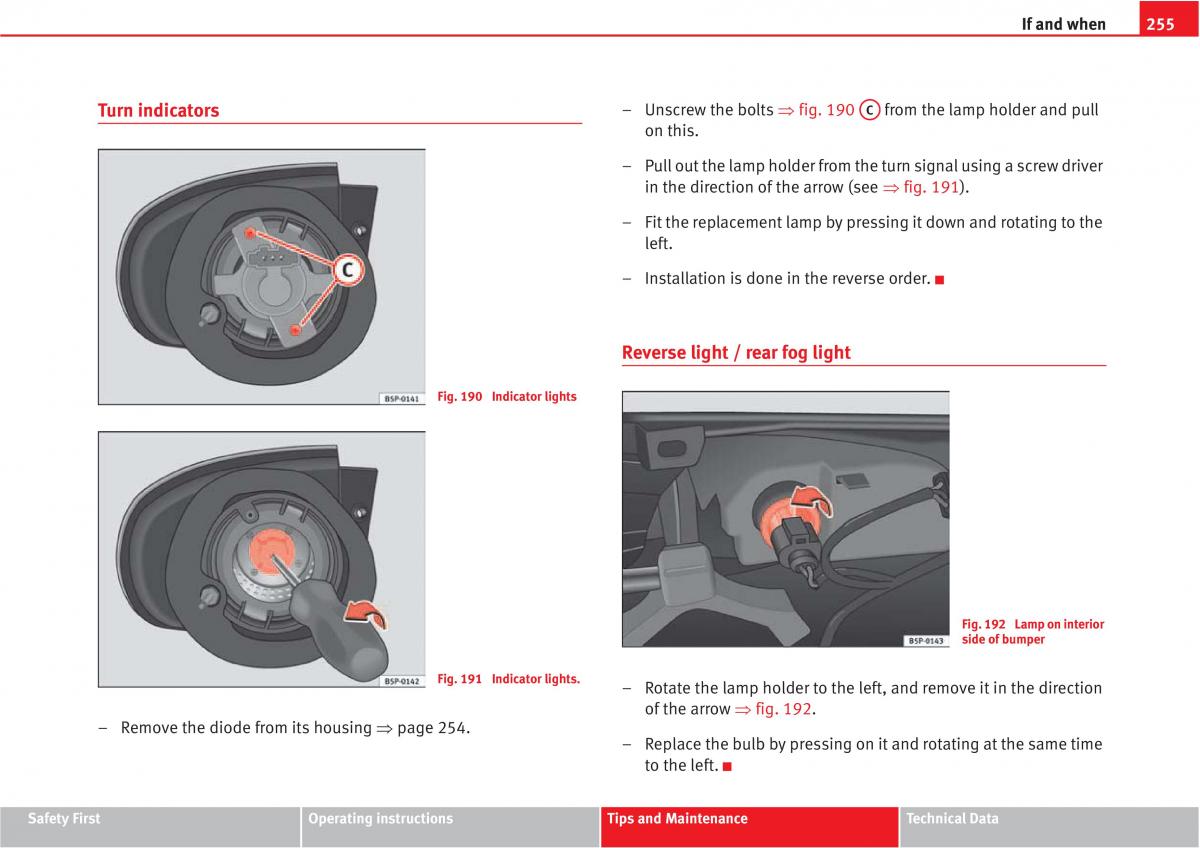

If and when255
– Unscrew the bolts fig. 190 C from the lamp holder and pull
Turn indicators A
on this.
– Pull out the lamp holder from the turn signal using a screw driver
in the direction of the arrow (see fig. 191).
– Fit the replacement lamp by pressing it down and rotating to the
left.
– Installation is done in the reverse order.
Reverse light / rear fog light
Fig. 190 Indicator lights
Fig. 192 Lamp on interior
side of bumper
Fig. 191 Indicator lights.– Rotate the lamp holder to the left, and remove it in the direction
of the arrow fig. 192.
– Remove the diode from its housing page254.
– Replace the bulb by pressing on it and rotating at the same time
to the left.
Safety First Operating instructions Tips and Maintenance Technical Data
