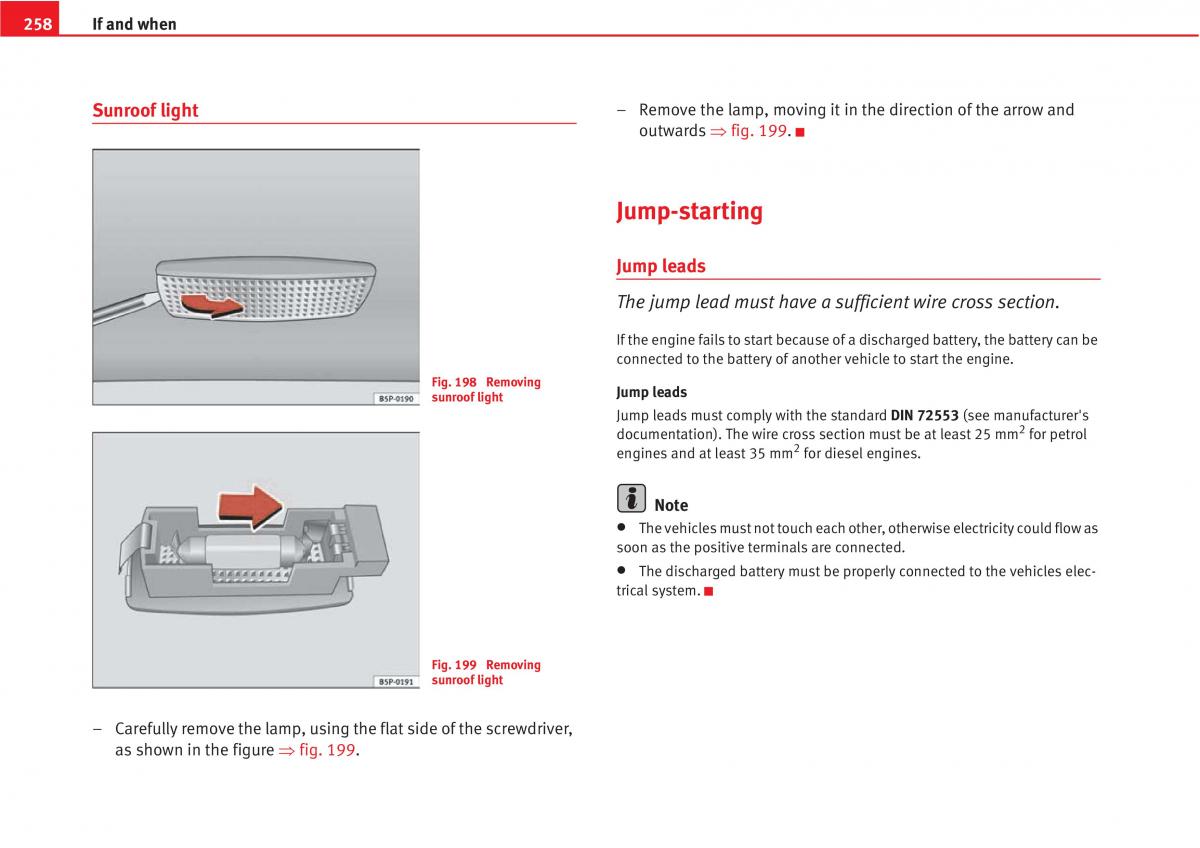

258 If and when
Sunroof light – Remove the lamp, moving it in the direction of the arrow and
outwards fig. 199.
Jump-starting
Jump leads
The jump lead must have a sufficient wire cross section.
If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Fig. 198 Removing Jump leads
sunroof light
Jump leads must comply with the standard DIN 72553 (see manufacturer's
2
documentation). The wire cross section must be at least 25 mm for petrol
2
engines and at least 35 mm for diesel engines.
Note
• The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
• The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 199 Removing
sunroof light
– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure fig. 199.
