text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

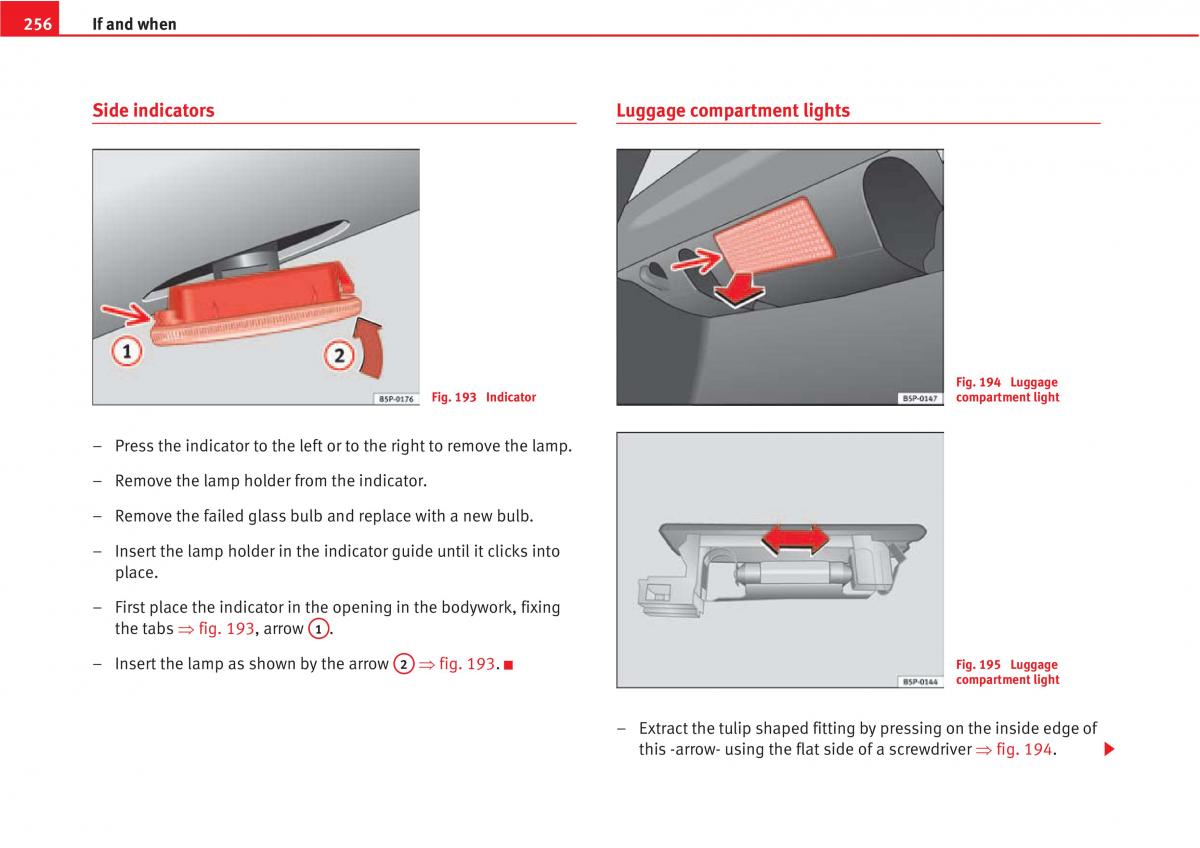

256 If and when
Side indicators Luggage compartment lights
Fig. 194 Luggage
Fig. 193 Indicator compartment light
– Press the indicator to the left or to the right to remove the lamp.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into
place.
– First place the indicator in the opening in the bodywork, fixing
the tabs fig. 193, arrow 1 .
A
– Insert the lamp as shown by the arrow 2 fig. 193. Fig. 195 Luggage
A
compartment light
– Extract the tulip shaped fitting by pressing on the inside edge of
this -arrow- using the flat side of a screwdriver fig. 194.
