254 If and when

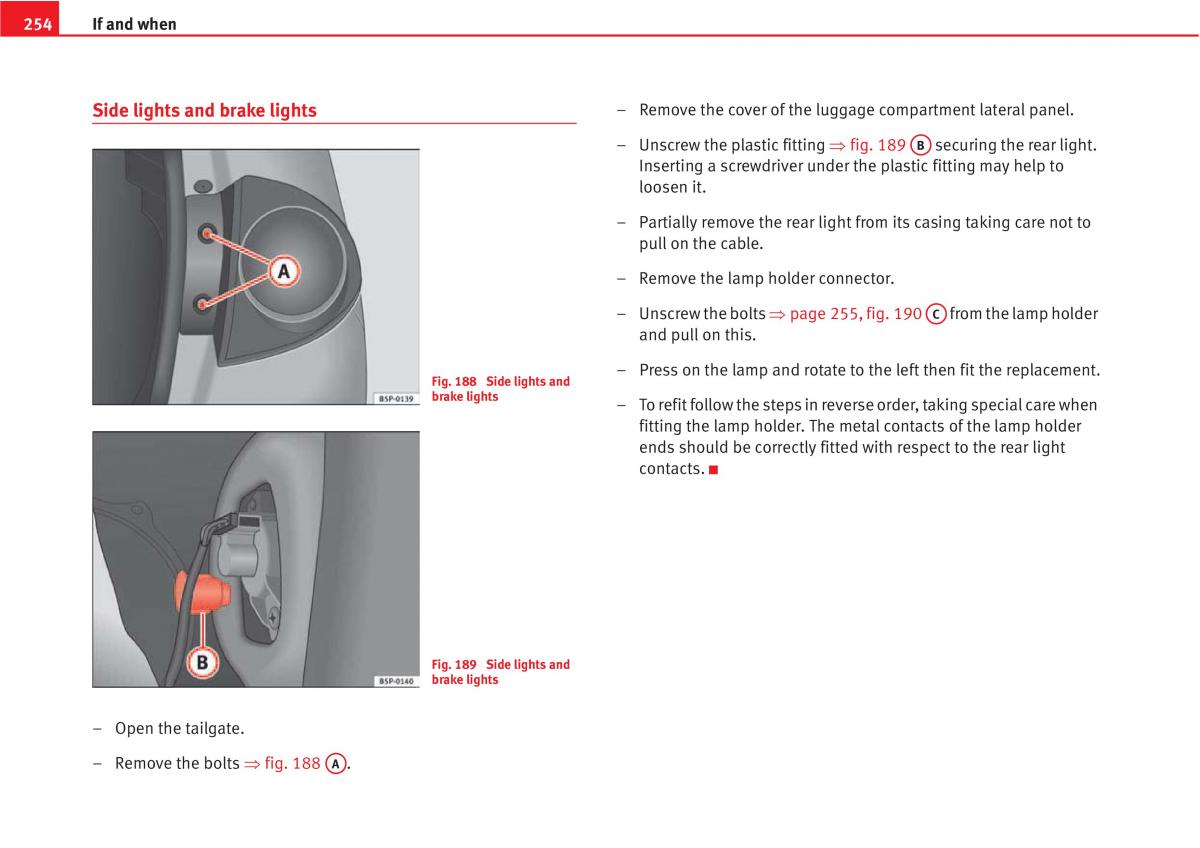

Side lights and brake lights – Remove the cover of the luggage compartment lateral panel.
– Unscrew the plastic fitting fig. 189 B securing the rear light.
A
Inserting a screwdriver under the plastic fitting may help to
loosen it.
– Partially remove the rear light from its casing taking care not to
pull on the cable.
– Remove the lamp holder connector.
– Unscrew the bolts page255, fig. 190 C from the lamp holder
A
and pull on this.
Fig. 188 Side lights and – Press on the lamp and rotate to the left then fit the replacement.
brake lights – To refit follow the steps in reverse order, taking special care when
fitting the lamp holder. The metal contacts of the lamp holder
ends should be correctly fitted with respect to the rear light
contacts.
Fig. 189 Side lights and
brake lights
– Open the tailgate.
A
– Remove the bolts fig. 188 .
A
