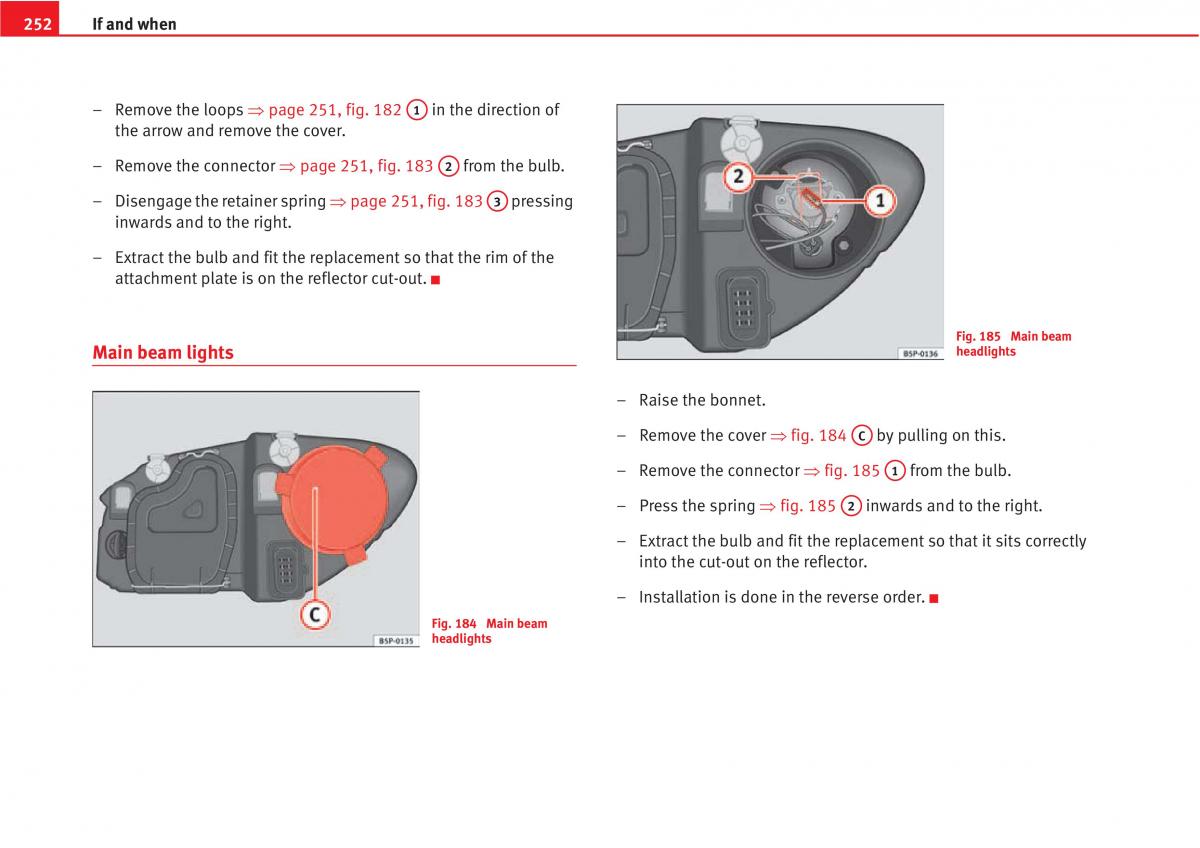

252 If and when
– Remove the loops page251, fig. 182 1 in the direction of
A
the arrow and remove the cover.
– Remove the connector page251, fig. 183 2 from the bulb.
A
3
– Disengage the retainer spring page251, fig. 183 Apressing
inwards and to the right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
Fig. 185 Main beam
Main beam lights headlights
–Raise the bonnet.
C
– Remove the cover fig. 184 A by pulling on this.
– Remove the connector fig. 185 1 from the bulb.
A
– Press the spring fig. 185 2 inwards and to the right.
A
– Extract the bulb and fit the replacement so that it sits correctly
into the cut-out on the reflector.
– Installation is done in the reverse order.
Fig. 184 Main beam
headlights
